60
F H
A

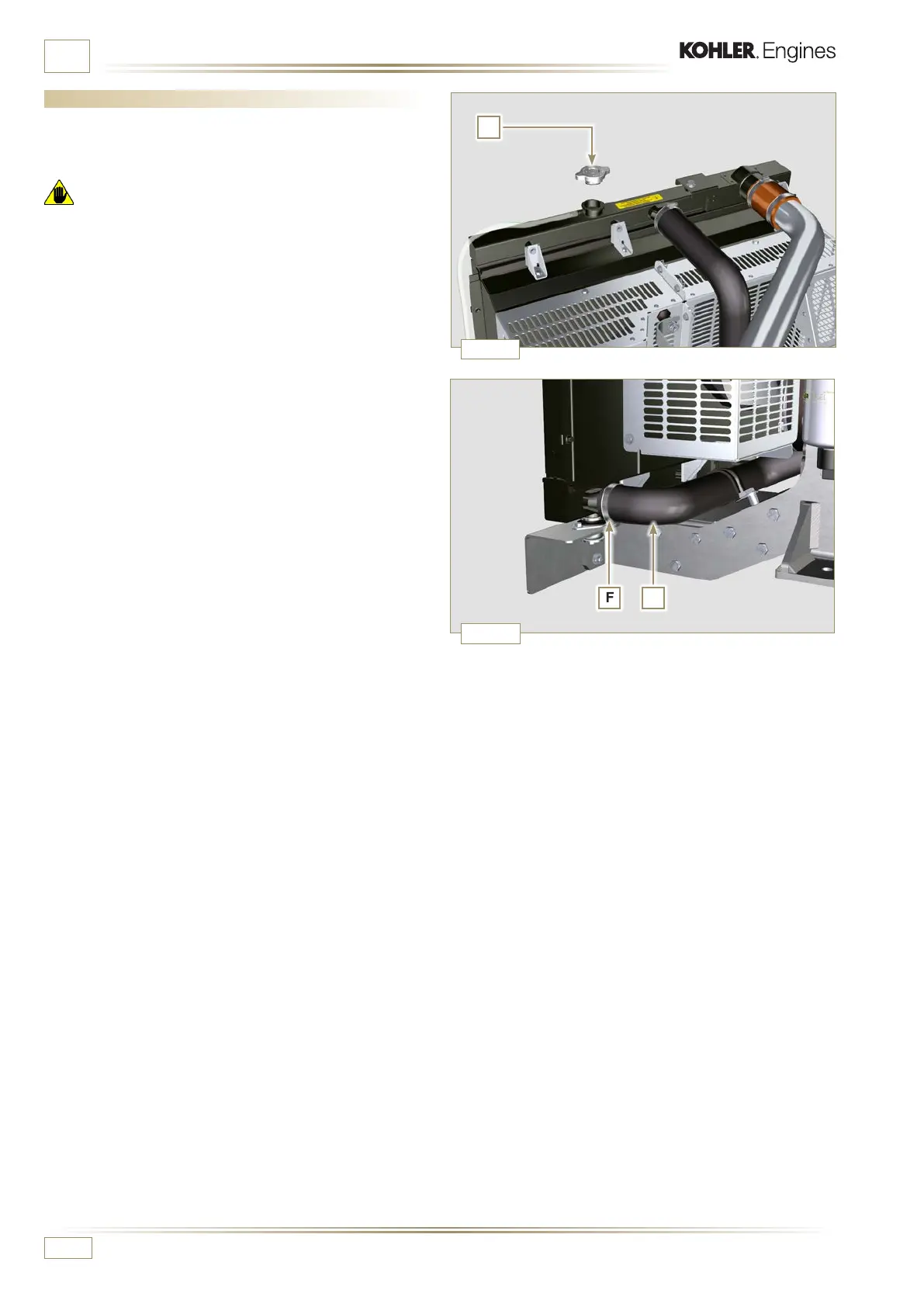

Fig. 5.1
Fig. 5.2
ED0053030410
INFORMATION REGARDING DISCHARGE OF LIQUIDS
5.1 Coolant
NOTE:
Component not necessarily supplied by KOHLER.
The representation of the radiator is purely indicative.
Warning
• Before proceeding with operation, carefully read Par. 3.3.2.
• Presence of steam pressurized coolant danger of burns.
1 - Undo the cap A carefully (circuit under pressure).
2 -
Loosen clamp F and remove hose H to drain all liquid from
the system contained in the engine crankcase ducts into
an appropriate container and refer to Par. 3.6.
