INFORMATION REGARDING DISCHARGE OF LIQUIDS
5.2 Engine oil
Important
• Before proceeding with operation, carefully read Par. 3.3.2.
• The oil must be drained whilst the engine is hot, which requires
particular care to prevent burns. Do not allow oil to come into
contact with the skin because of the health hazards involved.
It is recommended to use an oil suction pump via the oil
dipstick hole B.
• Electric/pneumatic screwdrivers are forbidden.

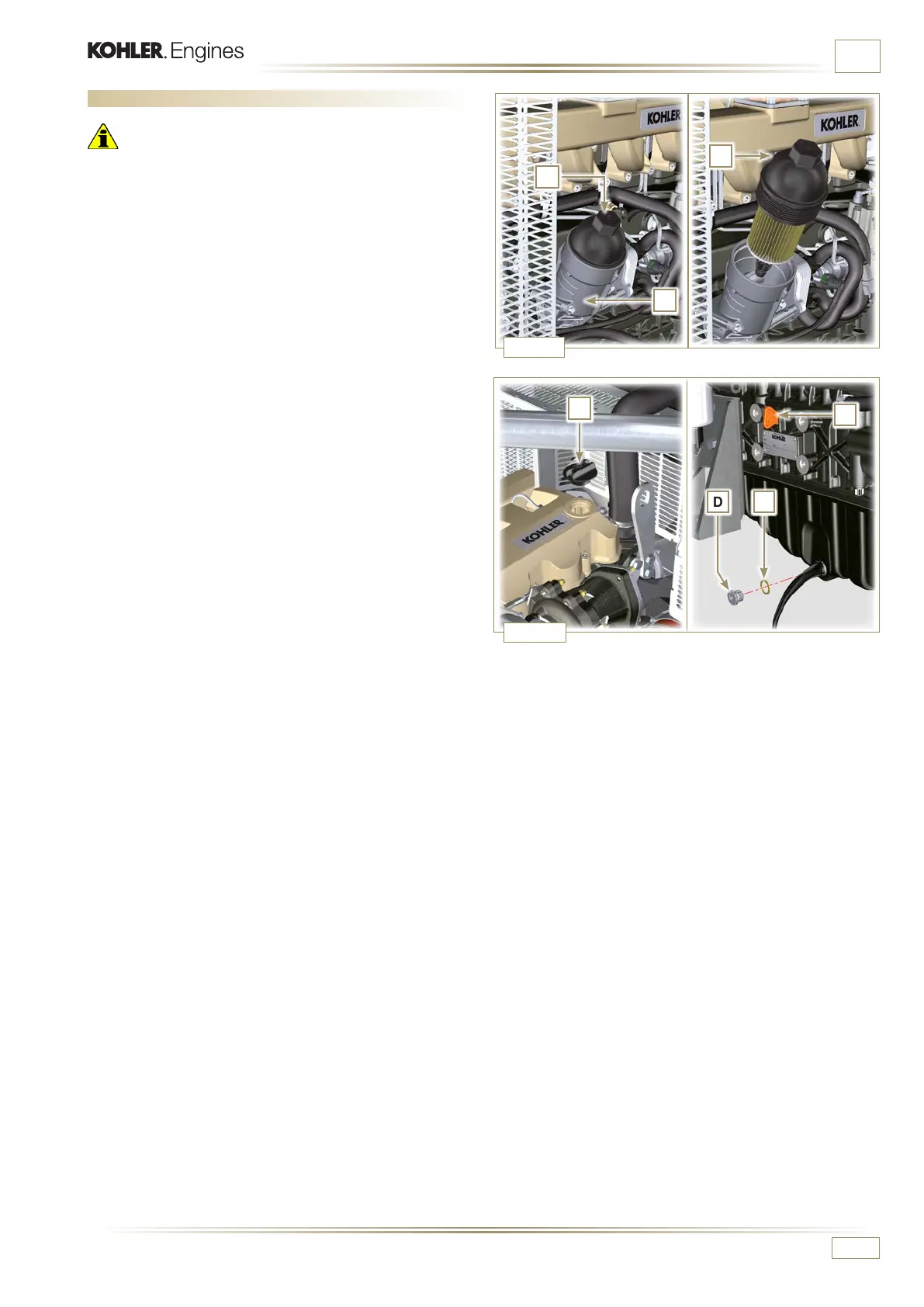

1 - Unscrew cartridge holder cover C by performing three
complete turns and wait 1 minute.
NOTE: this operation allows to oil contained in the support G
to flow into the oil sump in the correct way.
2 - Unscrew cartridge holder cover C and check that the oil in
the lub. oil filter bracket G has flowed towards the oil sump
(refer to NOTE in Par. 2.10.3).
3 - Undo the oil filler cap A.
4 - Remove the oil dipstick B.
5 - Remove the oil drain plug D and the gasket E.
(the oil drain plug is on both sides of the oil sump).
6 - Drain oil in to an appropriate container.
(For used oil disposal refer to the Par. 3.6).
7 - Replace gasket E.
8 - Tighten the drain oil plug D (tightening torque at 50 Nm).
9 - Perform the operations described in par. 6.4.2 and the
operation 5 par. 6.4.3.
