78
C
B
A
G
F
Fig. 7.6
D
E
Fig. 7.4
D
C
B
A
A
Fig. 7.5
Fig. 7.7
ED0053030410
INFORMATION FOR DISASSEMBLY

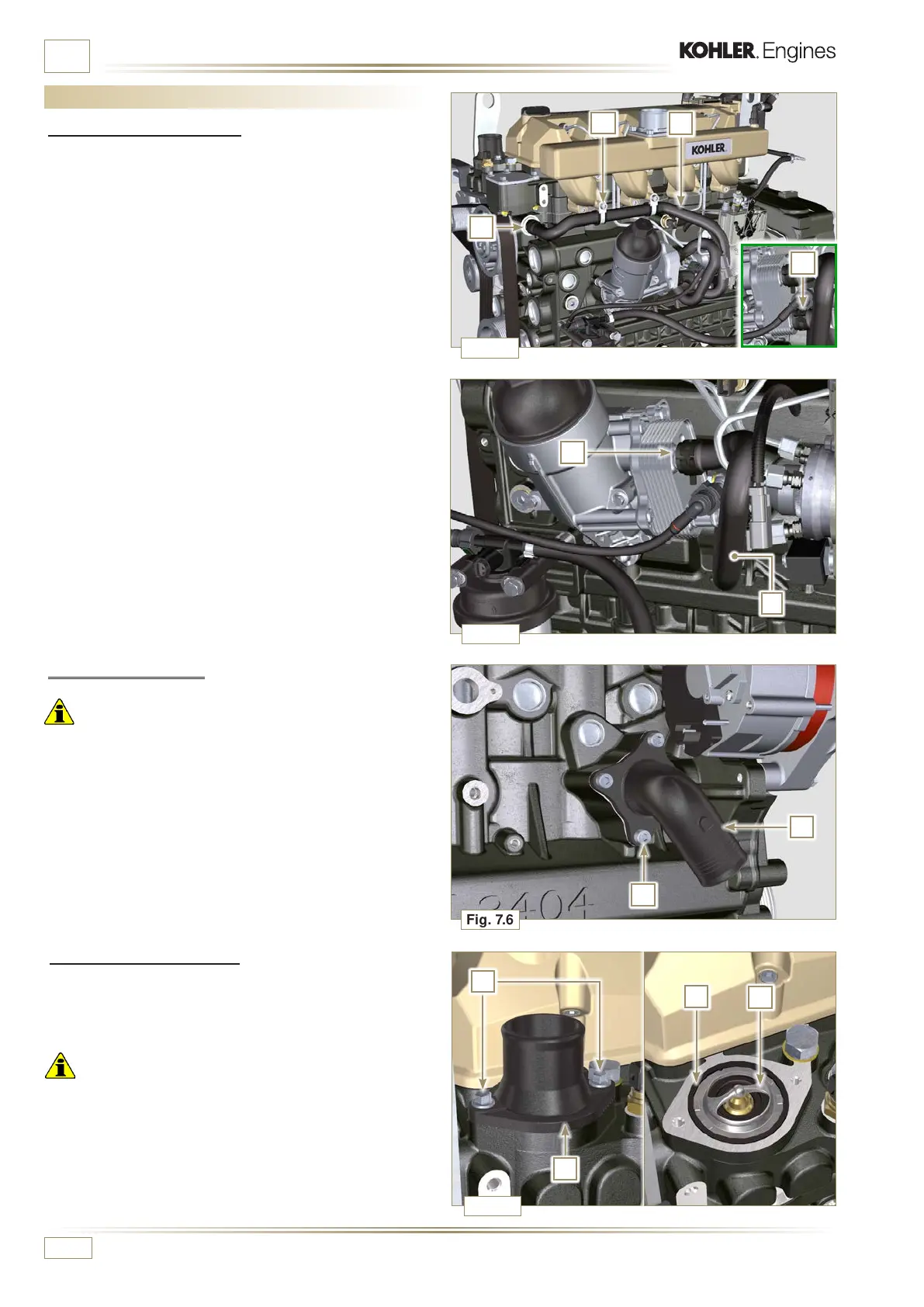

7.3 Coolant recirculation components disassembly
7.3.1 Oil Cooler manifold
1 - Release the clamps A.
2 - Undo the screws B and remove hoses C.
7.3.2 Coolant pump
Important
• The pump B is not repairable.
1 - Perform the operations described in Par. 6.2.1.
2 - Undo capscrews F and remove flange G with the relative
gasket.
7.3.3 Thermostatic valve
1 - Undo the screws A and remove the thermostatic valve
cover B.
2 - Remove the thermostatic valve C and its gasket.
Important
• Always replace the gasket D every time it is disassembled.
3 - Check that the air bleeding hole is not clogged or blocked
(Par. 2.11.3).
3 -
Release the clamps D and remove hoses E.
