Kohler KDI 3404 TM

7
80
_04
Fig. 7.12
Fig. 7.13
A
A
B
B
C
ED0053030410
INFORMATION FOR DISASSEMBLY
7.6 Fuel system disassembly
Important
• Seal all injection component unions as illustrated in Par. 2.9.8
during disassembly.
7.6.1 Injection fuel pipes
1 - Perform the operations of Par. 6.1.1.
7.6.2 Rocker arms cover
1 - Perform the operations of Par. 6.1.2.
7.6.3 Fuel return pipes
1 - Perform the operations of Par. 6.1.3.
2 - Perform the operations of point 18 of Par. 6.1.5.

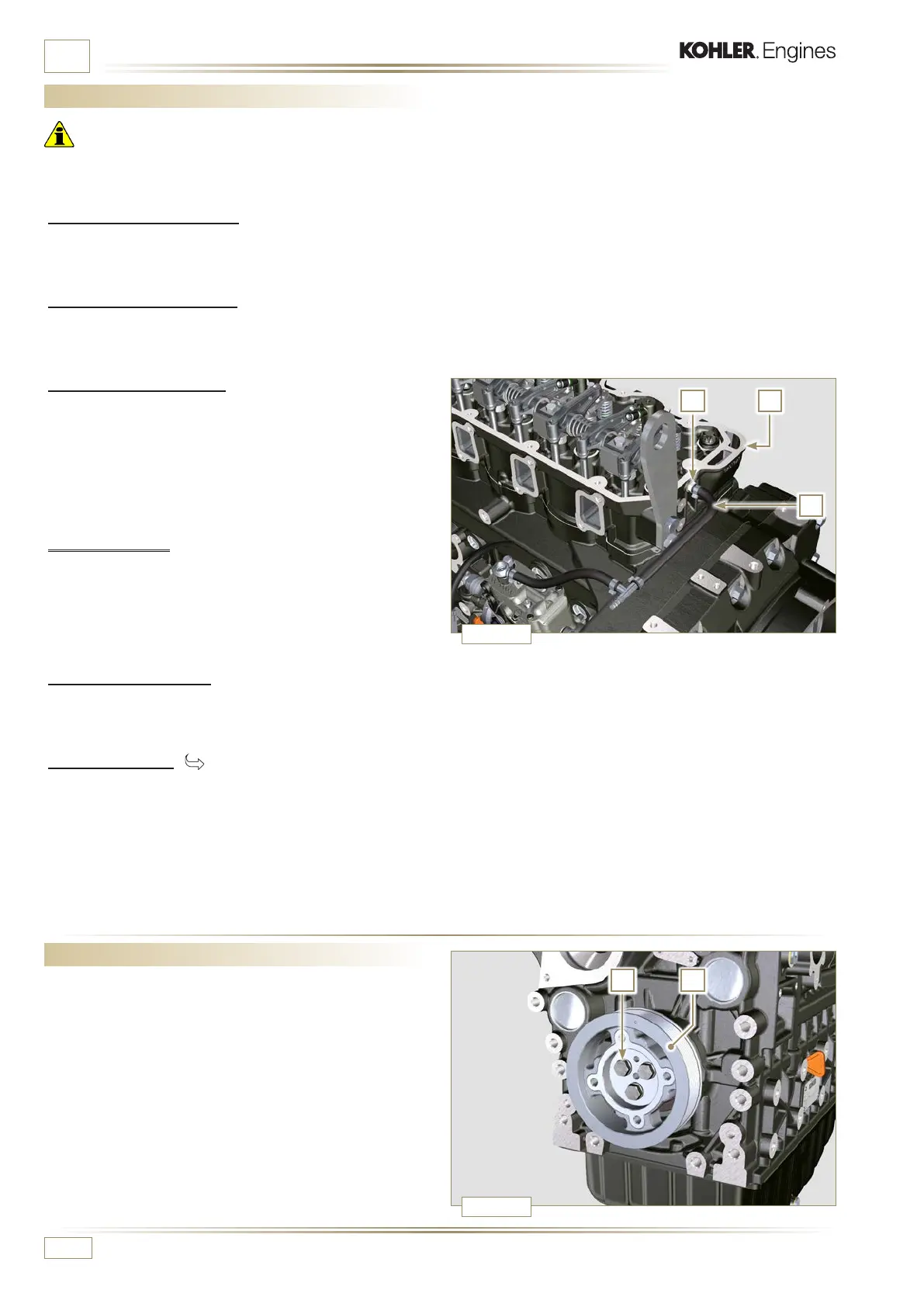

3 - Loosen union A from cylinder head B and remove return
line C.
7.6.4 Injectors
1 - Perform the operations of Par. 6.1.4.
7.6.5 Injection pump
1 - Perform the operations of Par. 6.1.5.
7.6.6 Fuel lter ( )
1 - Perform the operations of Par. 6.5.1.
7.7 Crankshaft pulley disassembly
4 - Undo the screws A and remove the pulley B.
