Kohler KDI Series

7
106
_07

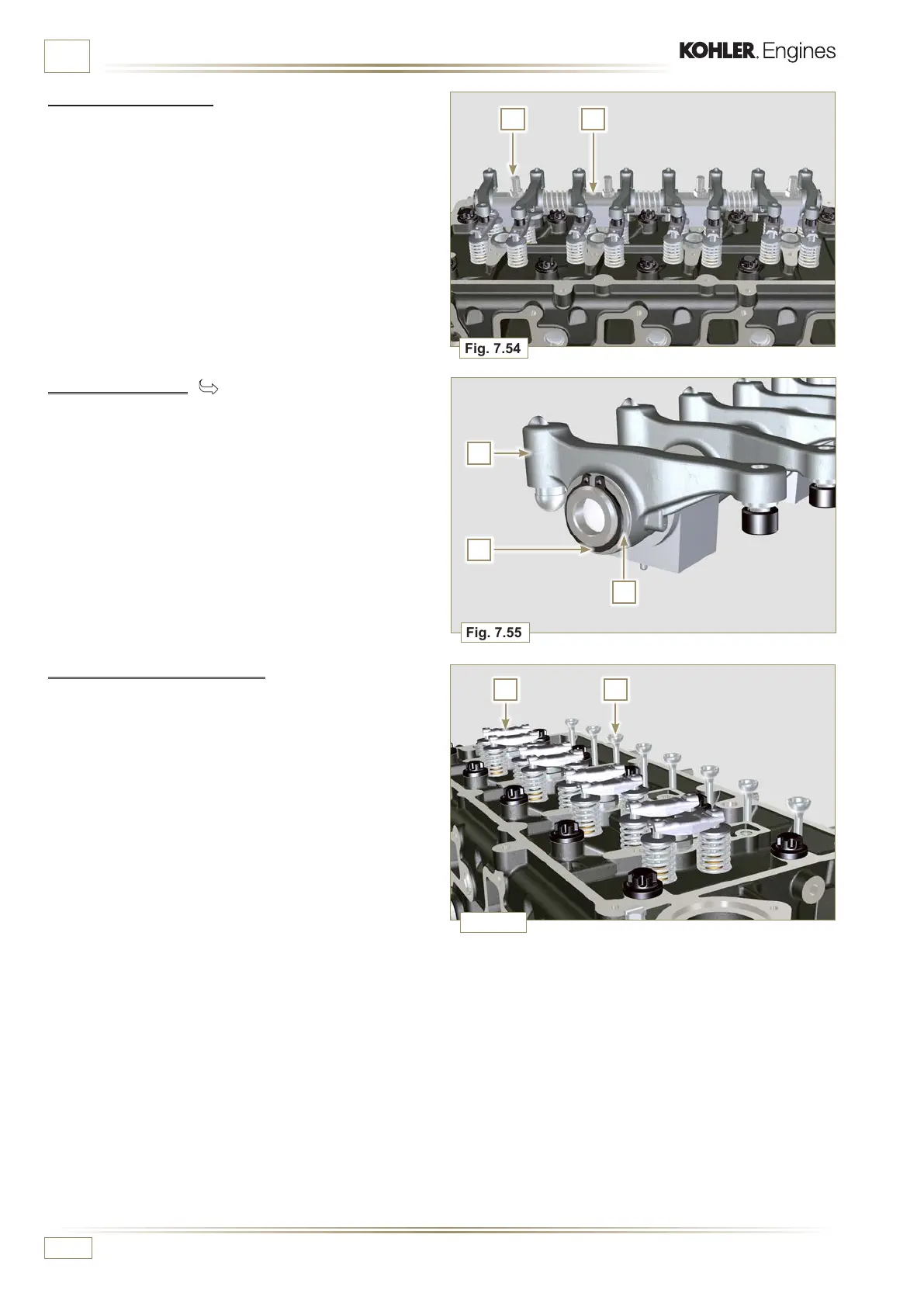

Fig. 7.54
D E
Fig. 7.55
H
G
F
Fig. 7.57
M N
ED0053029590
INFORMATION FOR DISASSEMBLY
7.13.2.1 Rocker arm ( )
1 - Remove the retainer ring F.
2 - Remove the shoulder rings G.
3 - Remove the rocker arms H.
7.13.2 Rocker arm pin
1 - Undo the screws D.
2 - Remove the rocker arm pin unit E.
7.13.3 Valve rods and bridges
1 - Remove the valve bridges M.
2 -
Remove the rocker arm control rods N.
