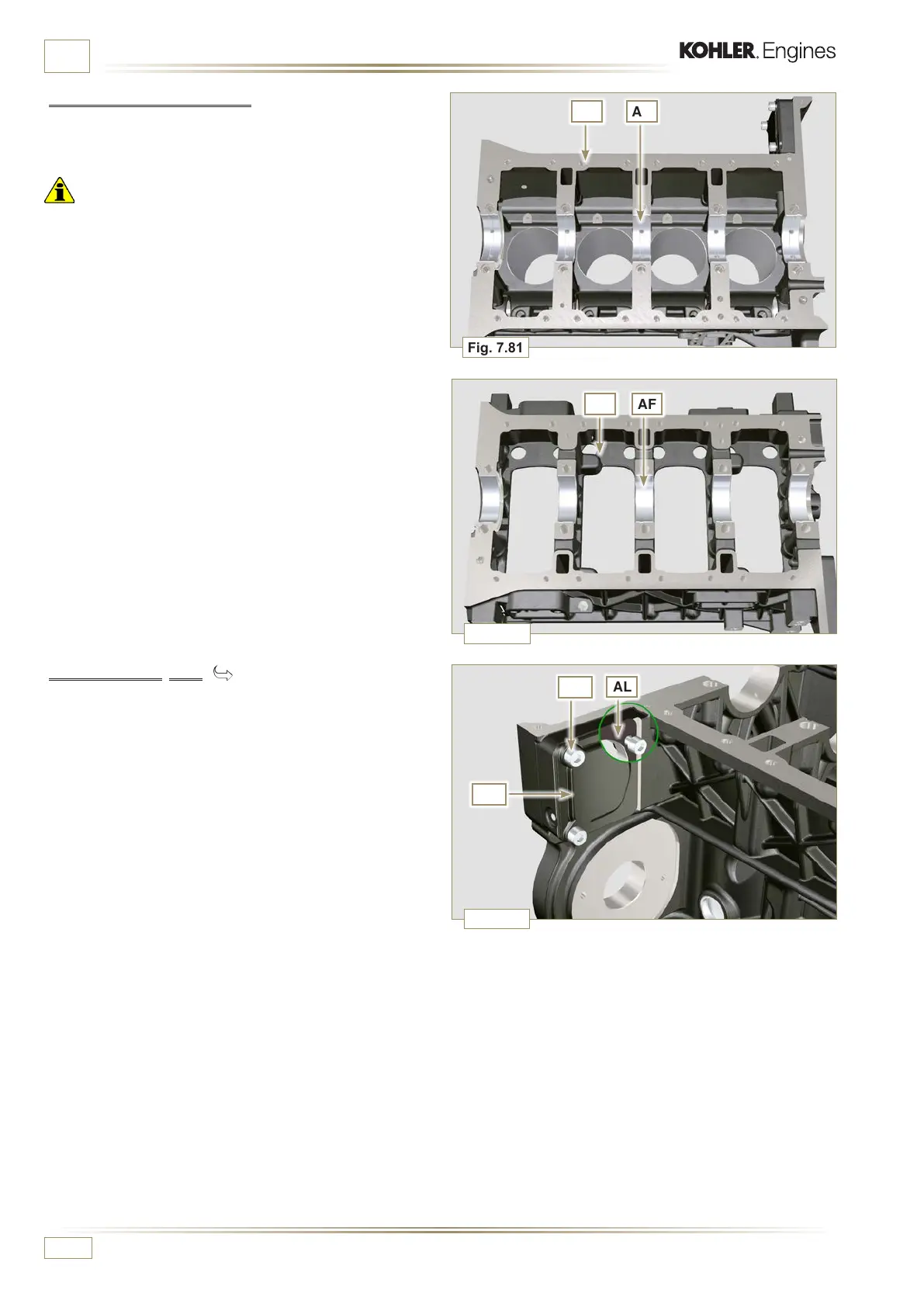

INFORMATION FOR DISASSEMBLY
7.15.10 Cover 3
at
PTO ( )
1 - Undo the screws AG.
2 - Remove the cover AH and the gasket AL from the semi-
crankcase top.
7.15.9 Crankshaft bushings
1 - Remove the crankshaft bushings AC from the upper
crankcase AB.
Important
• The crankshaft half-bearings AC are made of special material.
Therefore, they must be replaced every time they are removed
to prevent seizures.
2 -
Remove the crankshaft bushings AF from the lower semi-
crankcase AE.
