Kohler KDI Series

7
113
_07
Fig. 7.77
S
Fig. 7.78
T
AB
U
Fig. 7.80
AA
AB
Fig. 7.79
V
W
AB
ED0053029590

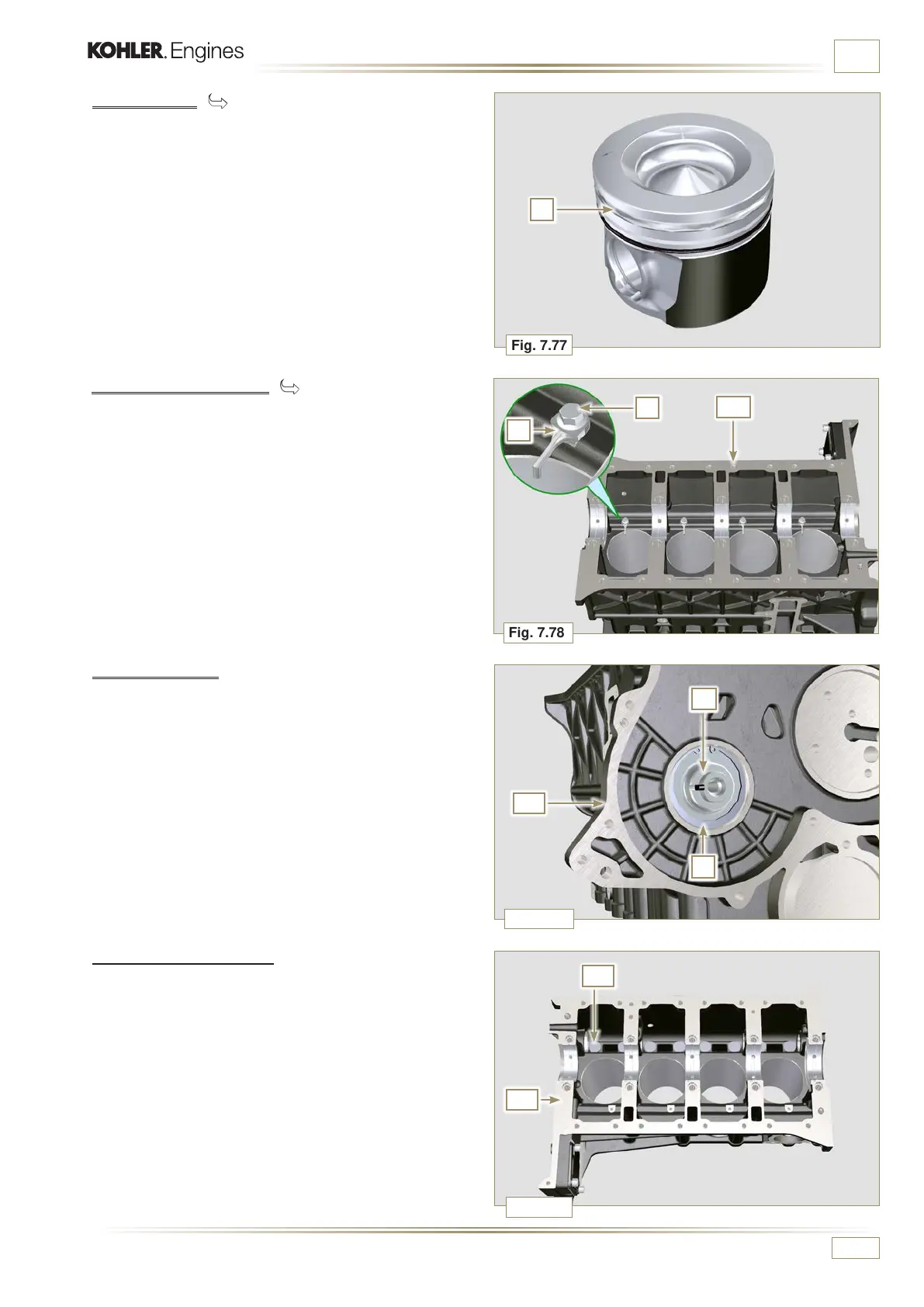

INFORMATION FOR DISASSEMBLY
7.15.5.1 Rings ( )
1 - Remove the rings S.
7.15.6 Oil spray nozzles ( )
1 - Undo the screws T and remove the spray nozzles U from
the upper semi-crankcase AB.
7.15.7 Camshaft
1 - Remove the lock ring V.
2 - Extract the camshaft W from the upper semi-crankcase
AB.
7.15.8 Camshaft tappets
1 - With a magnet, remove the tappets AA from the upper
semi-crankcase AB.
