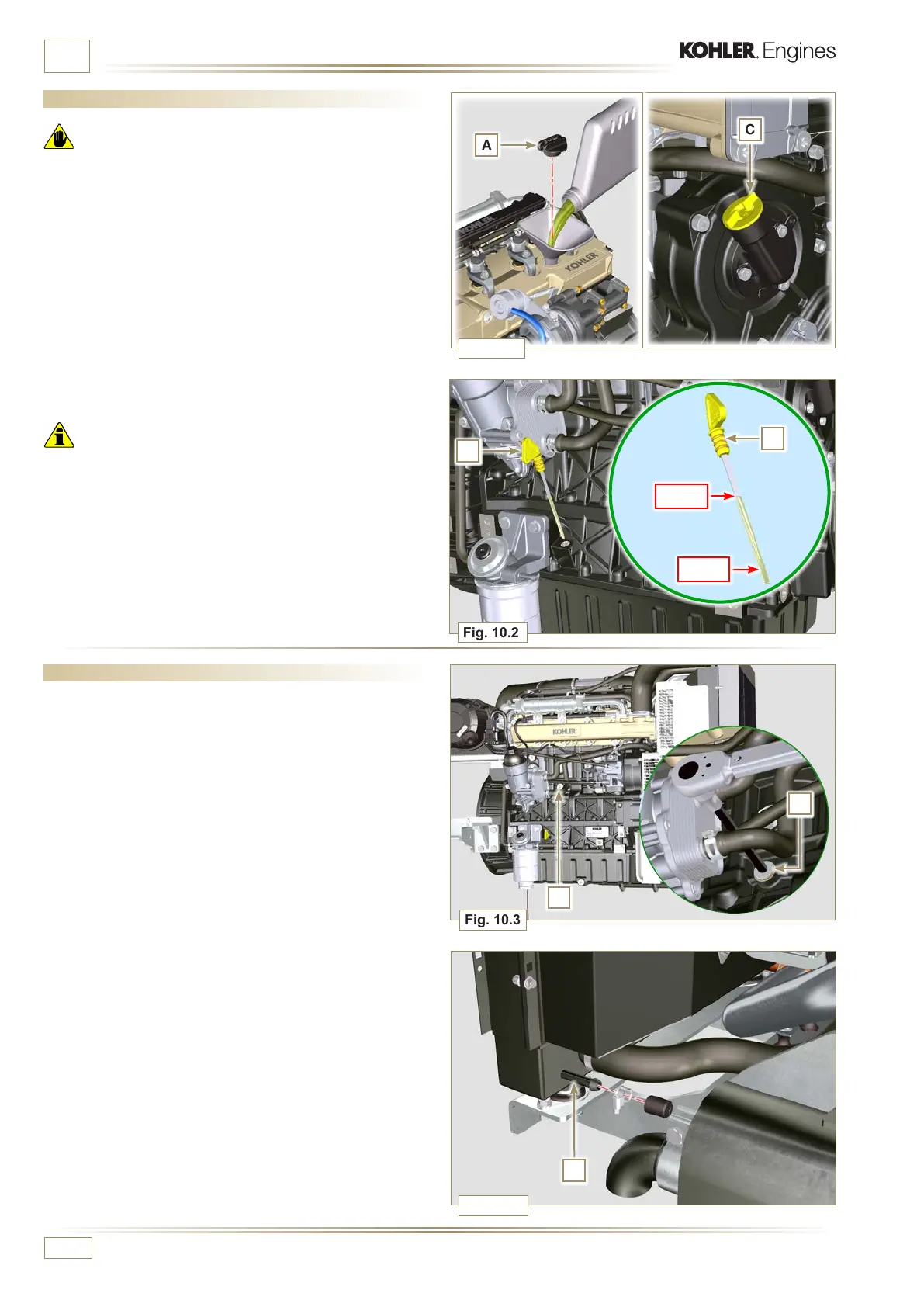

FLUIDS FILLING INFORMATION
10.1 Engine oil
Warning
• Before proceeding with operation, carefully read Par. 3.3.2.
1 - Loosen the oil filler cap A or the oil filler cap C if the cap A
is not accessible.
2 - Add the type and amount of oil recommended (Par. 2.2).
3 -
Remove the oil dipstick B and check that the level is up to
but does not exceed the MAX .
Important
• Do not use the engine with the oil level below the minimum.
4 - If the oil level is not at MAX, insert more oil until the MAX level
is reached as indicated on the dipstick.
5 - Re-tighten the cap A or C.
NOTE: See the Par. 11.1 for the various configurations of the
oil dipstick.
10.2 Coolant
1 -
Tighten the cap. G, replacing the copper gasket.
(Tightening torque of 50 Nm).
NOTE: A sealing plug or connecting pipe to the expansion
tank may be present on the junction B, both should be
secured with a strap.
2 - Reinsert on the junction C the sealing plug or a connecting
pipe to the expansion tank.
