INFORMATION ABOUT OPTIONAL COMPONENTS

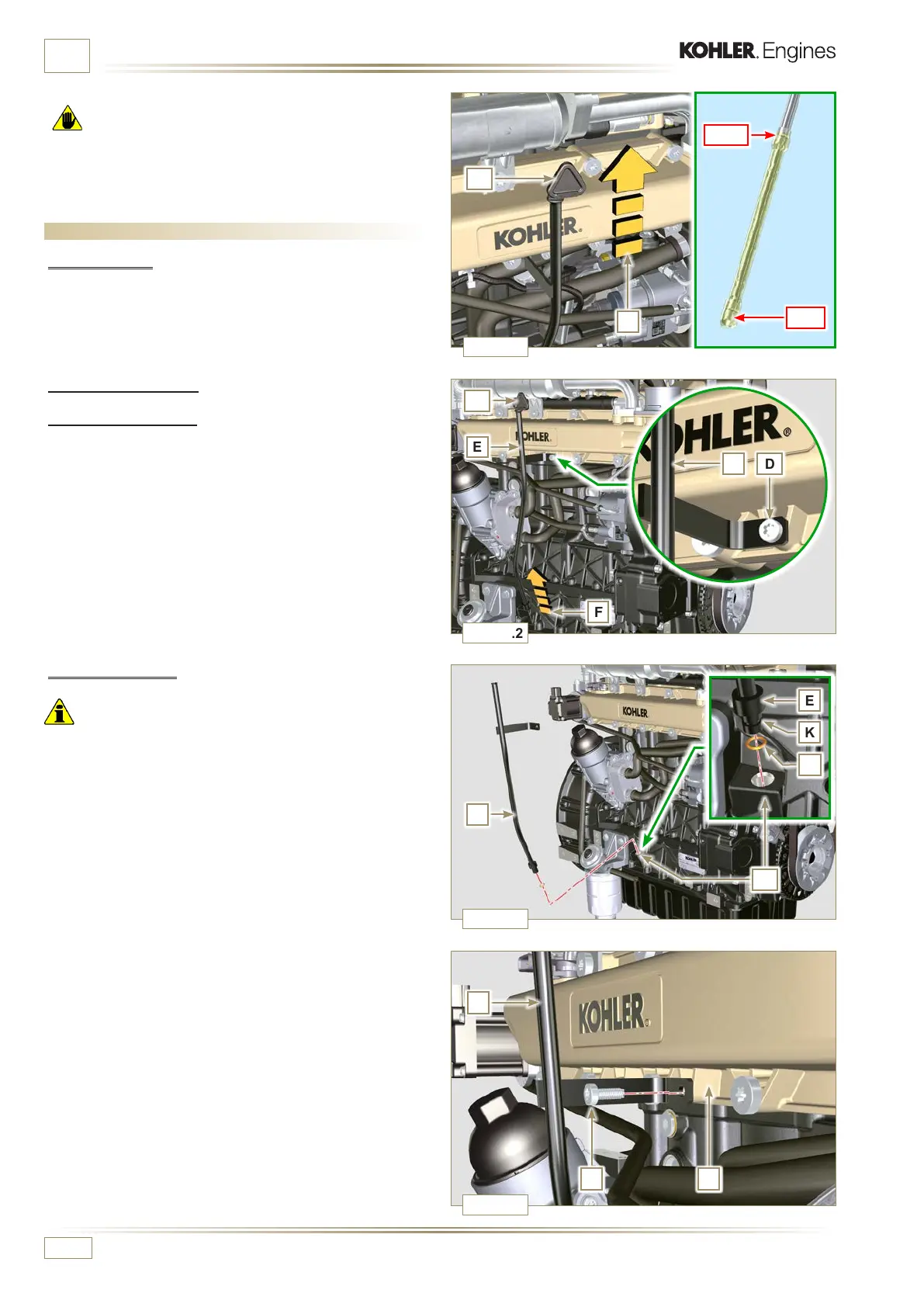

11.1 Oil dipstick in cylinder head
11.1.1 Check
1 - Pull out the dipstick B in the direction of the arrow A.
2 - Check that the mark left by the oil on the dipstick is between the
MIN and MAX notches.
11.1.2 Replacement
11.1.2.1 Disassembly
1 - Undo the screw D.
2 - Pull out the oil dipstick hose E in the direction of the arrow F.
11.1.2.2 Assembly
Important
• Always replace the gasket G every time it is disassembled.
1 - Insert the gasket G in the seat K of the hose E.
2 - Insert the hose E in the crankcase H.
3 - Secure the oil dipstick hose E using the screw D on the
manifold L (tightening torque at 10 Nm).
Warning
• Before proceeding with operation, carefully read Par. 3.3.2.
