INFORMATION ABOUT OPTIONAL COMPONENTS
NOTE: Check the integrity of the gaskets J.
4 - Insert the dipstick B inside the hose E.

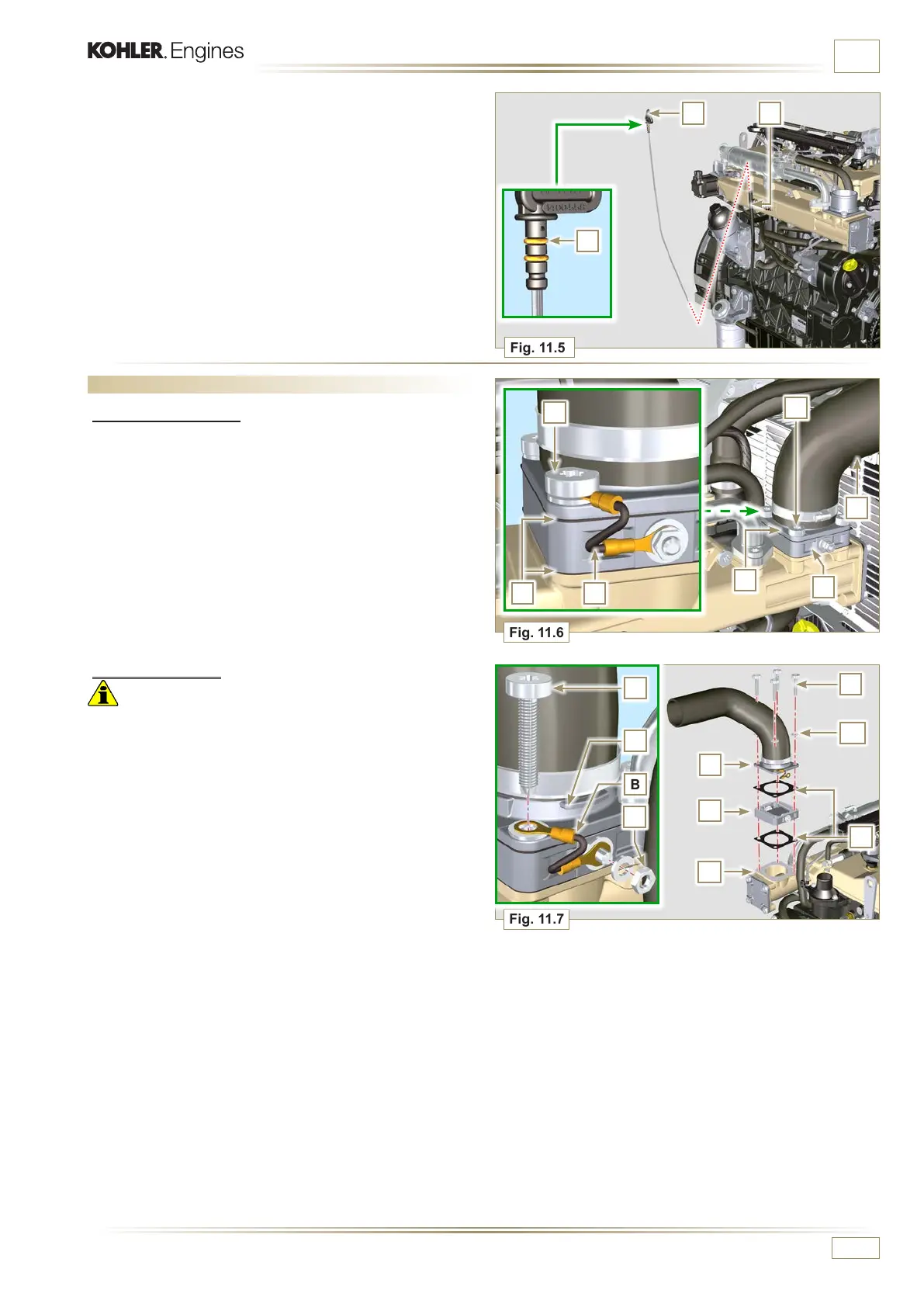

11.2 Heater (replacement)
11.2.1 Disassembly
1 - Undo the screws A and the relevant washers and remove
the earth cable B.
2 - Remove the flange C and the manifold D.
3 - Remove the heater E and the relevant gaskets F.
11.2.2 Assembly
Important
• Always replace gaskets F, with each assembly.
1 - In sequence, fit the manifold G with the gasket F, the new
heater E, the second gasket F, the flange C, the washers
H, the cable B and the screws A.
2 - Secure the flange C with the screws A (tightening torque at
22Nm).
3 - Secure the earth cable B with the nut J and the relevant
washer on the heater E.
