Kohler KDI Series

171
11
_07
Fig. 11.12
Fig. 11.14
Fig. 11.13
Fig. 11.15
A
B
D
F
E
C
G
H
L
N
M
ED0053029590
INFORMATION ABOUT OPTIONAL COMPONENTS

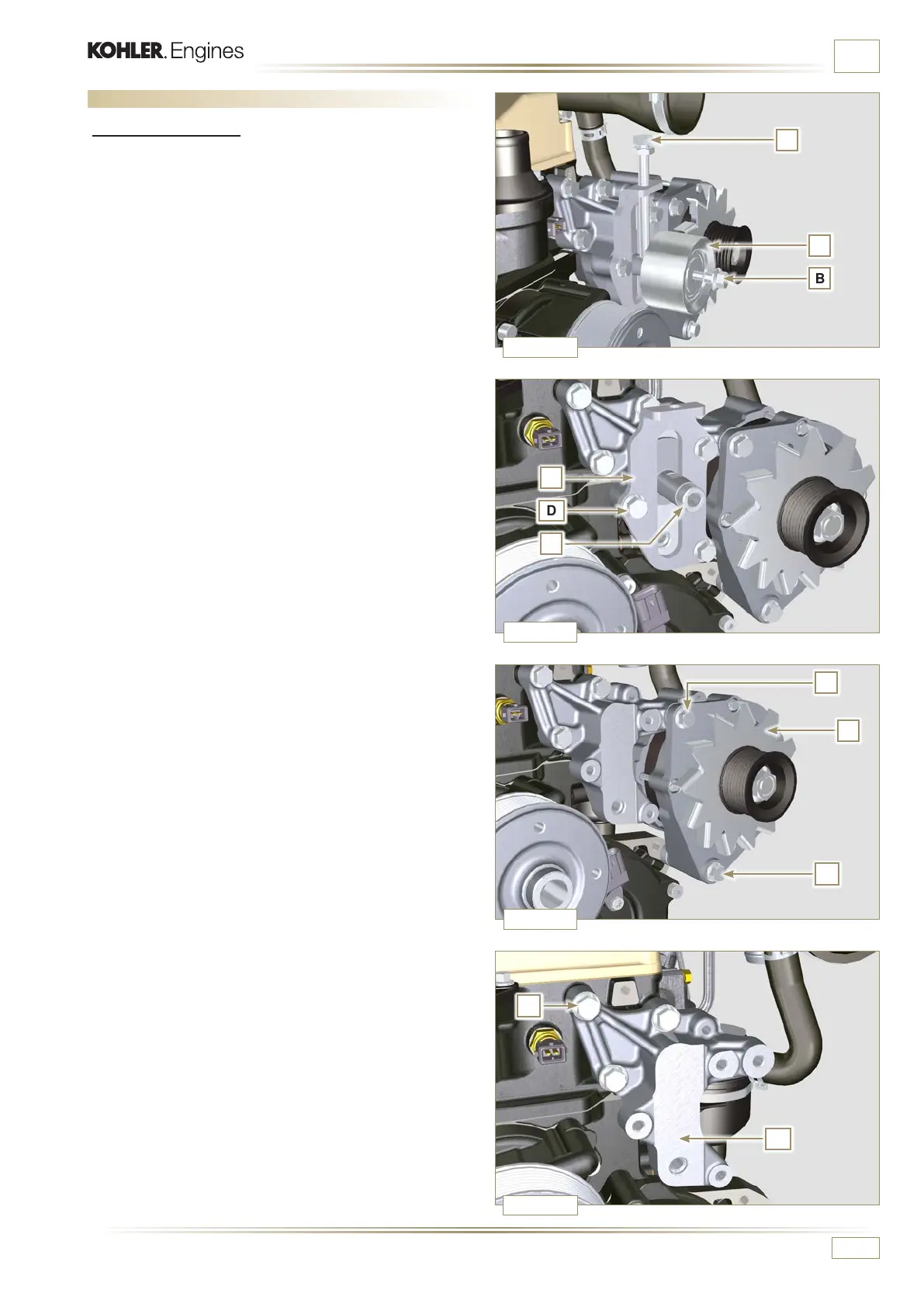

11.4 Tightening pulley and alternator for Poly-V belt
11.4.1 Disassembly
1 - Perform the operations from point 1 to 3 of Par. 11.3.
2 - Remove the belt H (Fig. 11.10).
3 - Undo and remove the screw A.
4 - Fully undo the screw B and remove the tightening pulley C.
5
- Undo the screws D and remove the plate E and the pin F.
6
- Undo the screws G and H remove the alternator L.
7
- Undo the screws M and remove the bracket N.
