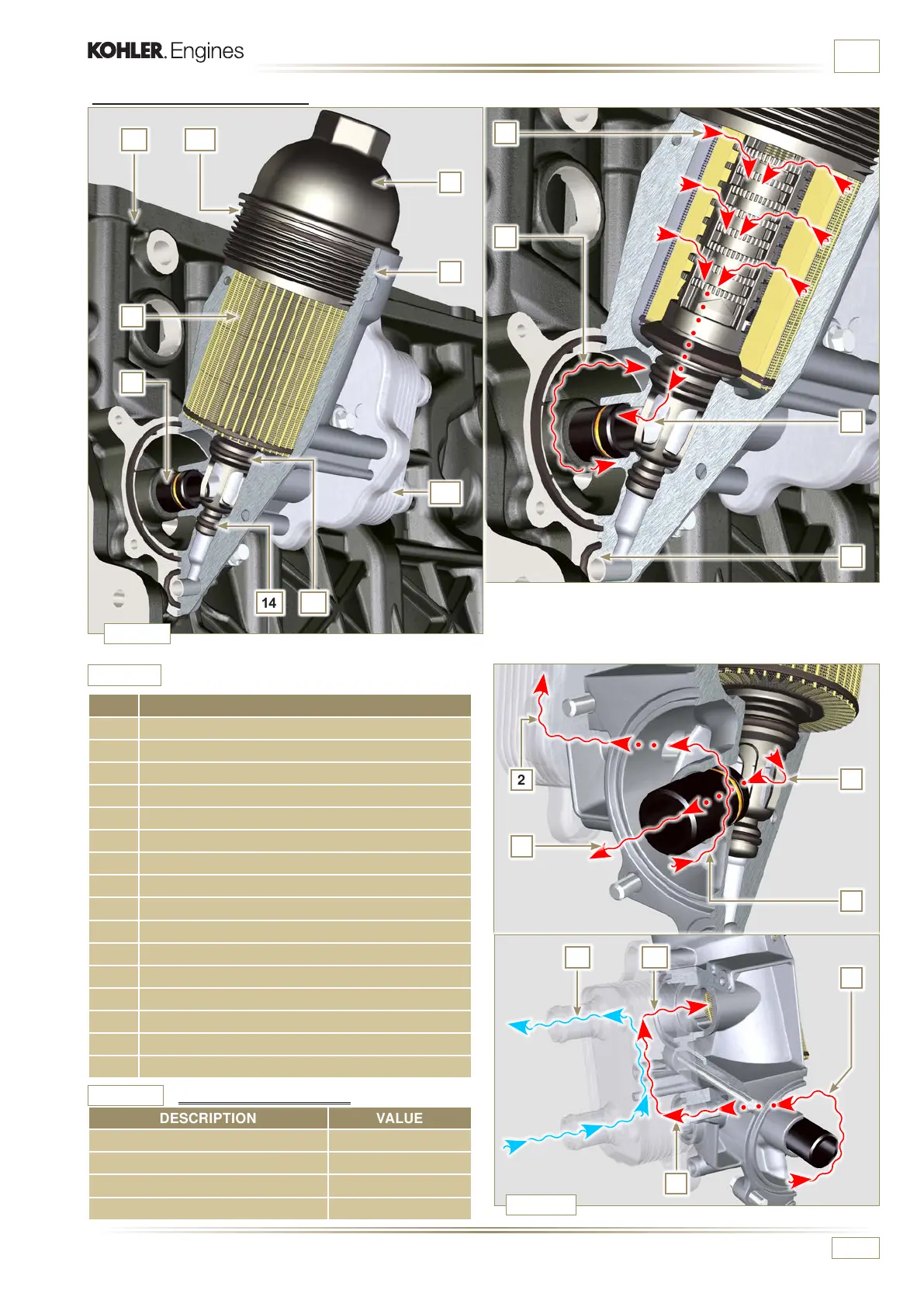

2.10.3 Oil lter and Oil Cooler
POS. DESCRIPTION
1 Oil arriving from the pump
2 Oil cooling
3 Oil ltering
4 Oil drain duct (oil sump return)
5 Oil returning into the circuit
6 Outgoing tting from lter
7 Oil lter support
8 Cartridge holder cover
9 Oil lter cartridge
10 Oil Cooler
11 Crankcase
12 Oil owing to the cartridge
13 Coolant
14 Oil drain duct closure gasket
15 Oil ltering chamber closure gasket
16 Cartridge holder cover gasket
DESCRIPTION VALUE
Filtering surface 2,300 cm
2
Degree of ltration 2 µm
Max operating pressure 4.0 Bar
Max ow rate 190 litres/hour
Cartridge characteristics.
Tab. 2.23
Tab. 2.22
NOTE: unscrewing the cartridge holder cover makes the
oil in support 7 ow towards the oil sump by means
of the drain duct 4.
