Kohler KDI Series

38
2
_07
1
2
14
14
5
5
9
10
11
3
4
8
7
6
12
15
13
5
13
12
4
3
Fig. 2.20
Fig. 2.21
16
15
ED0053029590
TECHNICAL INFORMATION
POS. DESCRIPTION
1 Coolant pump
2 Coolant intake
3 Coolant, cylinder
4 Coolant, cylinder head
5 EGR gas coolant
6 Coolant to radiator
7 Coolant into radiator
8 EGR valve coolant
9 Coolant in the Oil Cooler
10 Coolant input into the Oil Cooler
11 Coolant output from the Oil Cooler
12 Vent line from radiator (to 15)
13 Vent line to expansion vase (to 15)
14 Return from compensation tank
15 Compensation tank
16 Thermostatic valve

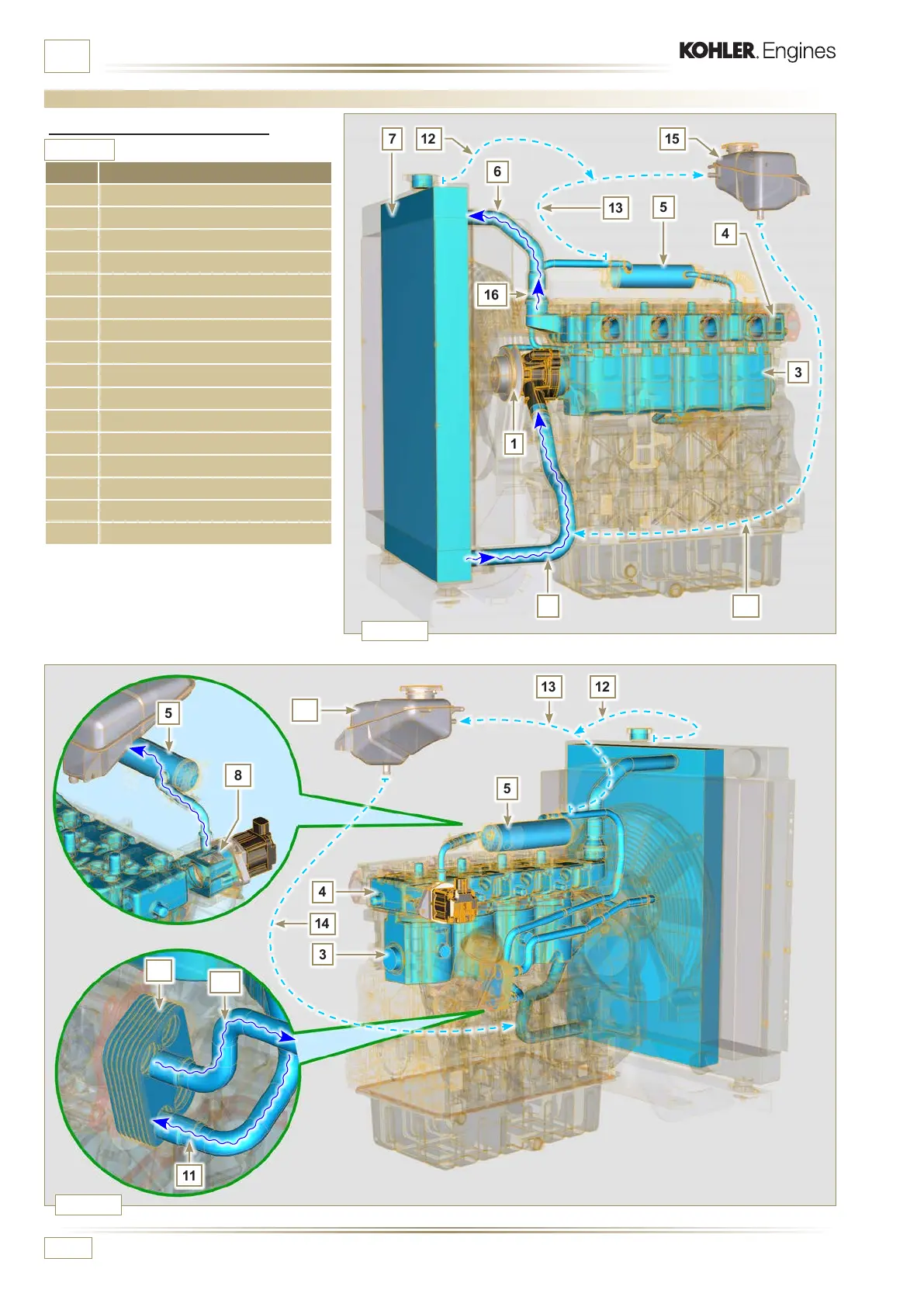

2.11 Coolant circuit
2.11.1 Coolant circuit diagram
Tab. 2.24
