INFORMATION FOR REPLACING THE FUNCTIONAL UNITS

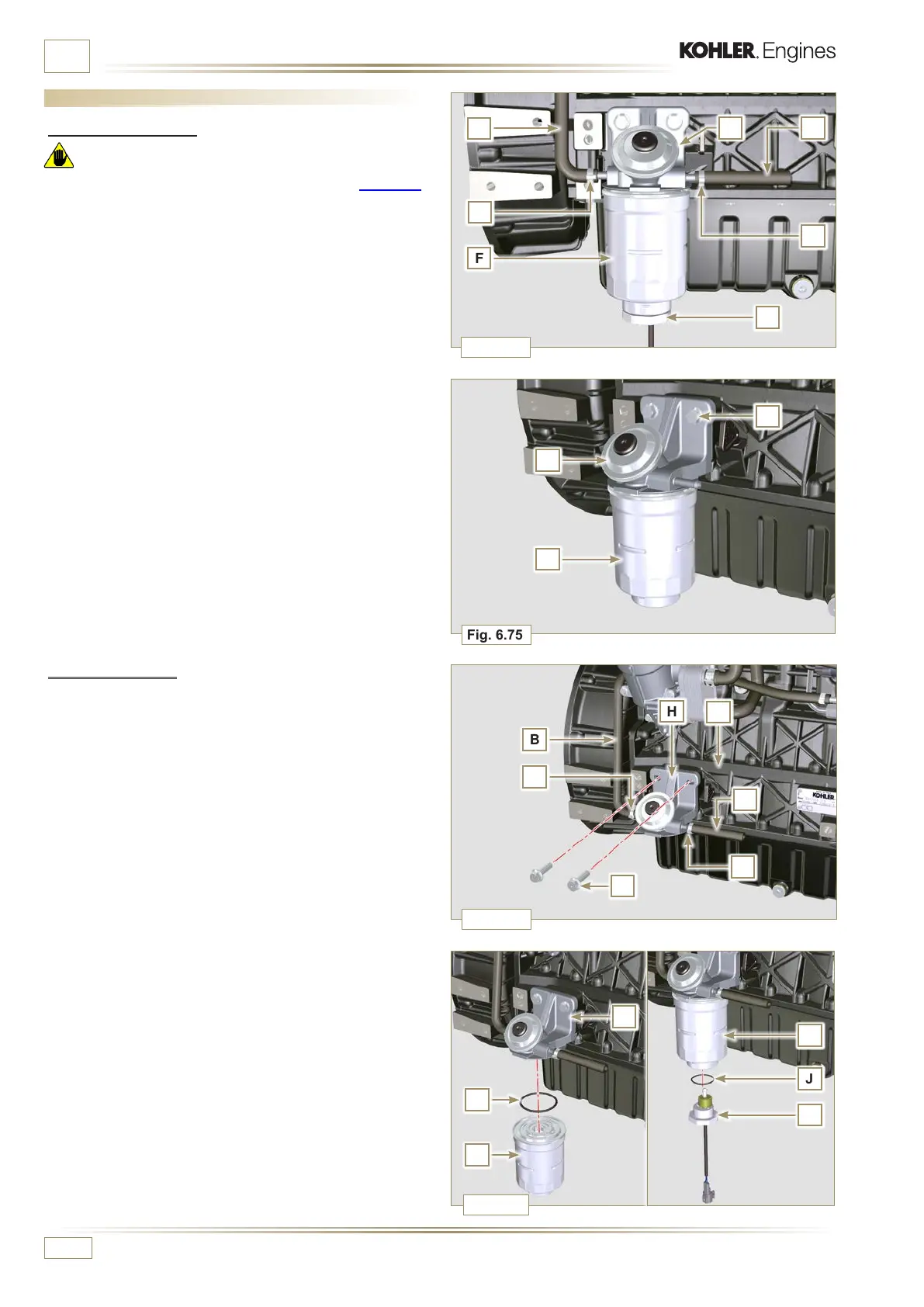

6.11 Fuel lter replacement
6.11.1 Disassembly
Warning
• Before proceeding with operation, carefully read Par. 3.3.2.
• The fuel filter is not always mounted in the engine.
• When disassembling the sensor E, use a suitable container
to recover the fuel contained in the cartridge F.
1 - Release the clamps A and pull the pipes B out of the
support H.
2 - Unscrew the sensor E from the cartridge F.
3
- Unscrew the cartridge F from the support H.
4 - Undo the screws C and remove the support H.
4 -
Lubricate the gasket N with fuel.
5 - Tighten the cartridge F on the support H (tightening torque
at 17 Nm).
6 - Assemble gasket J onto sensor E and lubricate with fuel.
7 - Tighten the sensor E on the cartridge F (tightening torque
at 5 Nm).
6.11.2 Assembly
1 - Clamp the fuel filter support H with the screws C on the
crankcase M (tightening torque at 25 Nm).
2 - Fit the pipes B on the support H.
3 - Secure the pipes B with the clamps A.
