Specifi cations
22 690 01 Rev. -- KohlerEngines.com

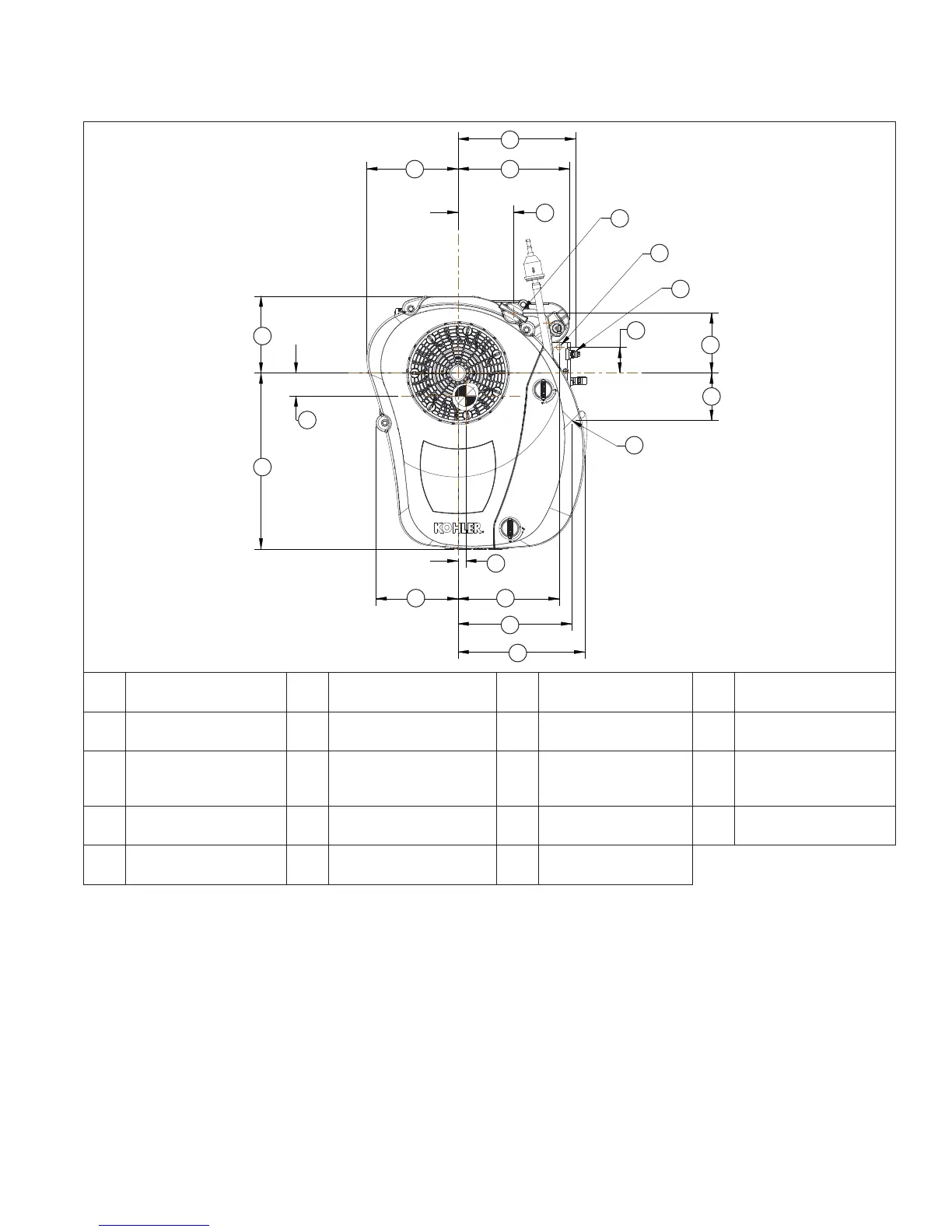

Engine Dimensions-Flywheel Side
F
E
G
H
I
K
A
B
D
C
J
L
M
N
O
P
Q
R
S
A
164.8 mm (6.49 in.)
to Starter
B 212.4 mm (8.36 in.) C
201.3 mm (7.92 in.)
to Oil Filter
D 100.0 mm (3.94 in.)
E Oil Fill and Dipstick F
Ø 10.0 mm (0.39 in.)
Lifting Point
G Throttle Cable Clip H 109.0 mm (4.29 in.)
I 46.5 mm (1.83 in.) J 85.1 mm (3.35 in.) K
Connection for
Evaporative Hose
(7/32" I.D.)
L 228.9 mm (9.01 in.)
M 205.8 mm (8.10 in.) N 182.5 mm (7.19 in.) O
13.9 mm (0.55 in.) to
Center of Gravity
P 148.1 mm (5.83 in.)
Q 317.8 mm (12.51 in.) R
41.2 mm (1.62 in.) to
Center of Gravity
S 139.0 mm (5.47 in.)
