SECTION 7
DISASSEMBLY
Governor Gear- Inspection
Inspect the governor gear teeth. Look for any
evidence of worn, chipped or cracked teeth. If one
or more of these problems is noted, replace the
governor gear.
OIL PUMP
1. Unscrew the four small caps crews that hold the
pump cover to the #1 side of the crankcase, then
remove the cover and the inner and outer pump
rotors. See Figures 7-19 and 5-5.
2. Pump gear and shaft should be removed only if
service is necessary.
Using a small diameter drift punch, drive the
roll pin in the oil pump gear hub through the hub
and into the crankcase as in Figure 7-20. Dis-
card the roll pin. Now remove the pump shaft,
gear and spacer.
Oil Pump- Inspection And Service
Check oil pump gear for any cracked, chipped or
badly worn teeth. Replace gear if any of these
problems exist.
Oil pump rotors and shaft are virtually trouble free
and will require very little service.

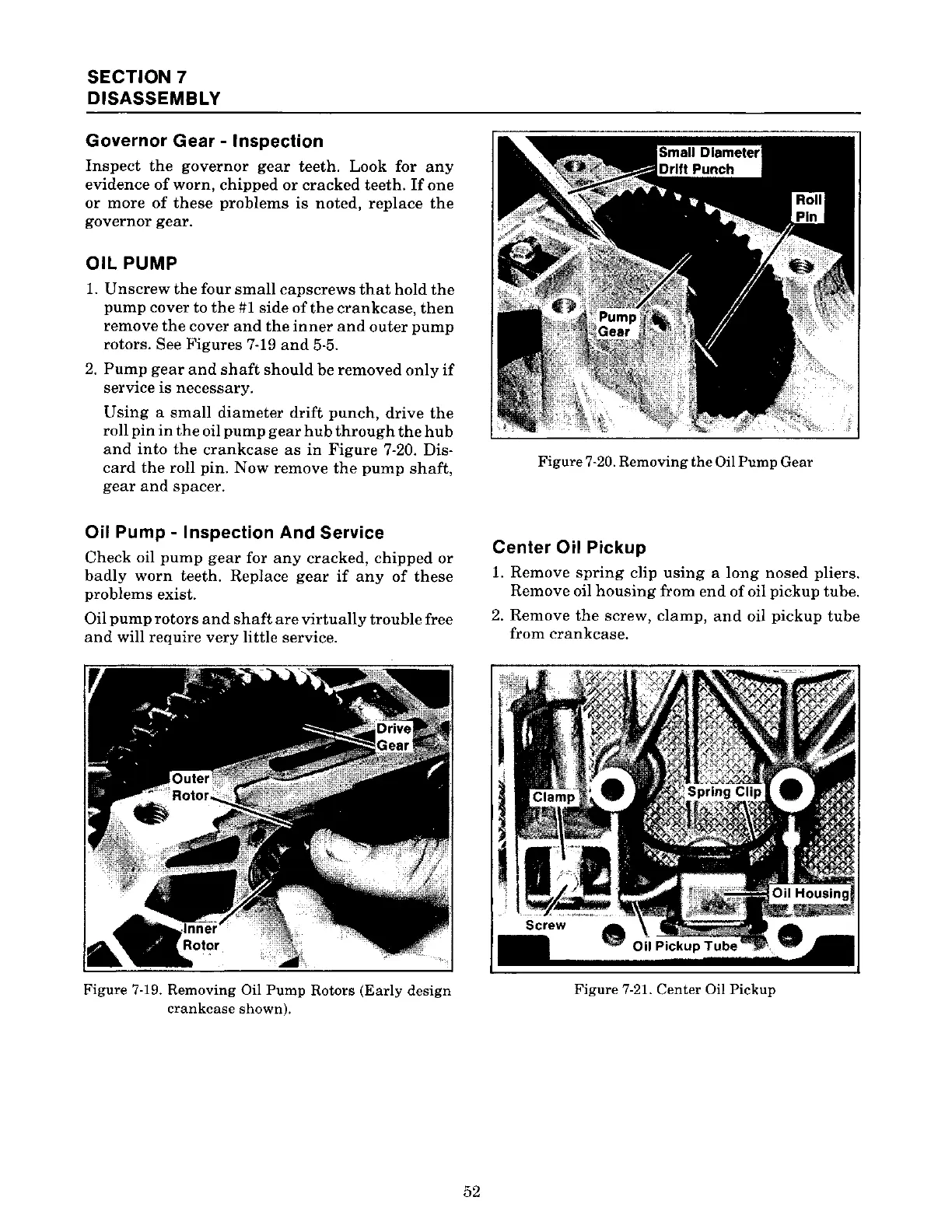

Figure 7-19. Removing Oil Pump Rotors (Early design
crankcase shown).
52
Figure 7-20. Removing the Oil Pump Gear
Center Oil Pickup
1. Remove spring clip using a long nosed pliers.
Remove oil housing from end of oil pickup tube.
2. Remove the screw, clamp, and oil pickup tube
from crankcase.
Figure 7-21. Center Oil Pickup
