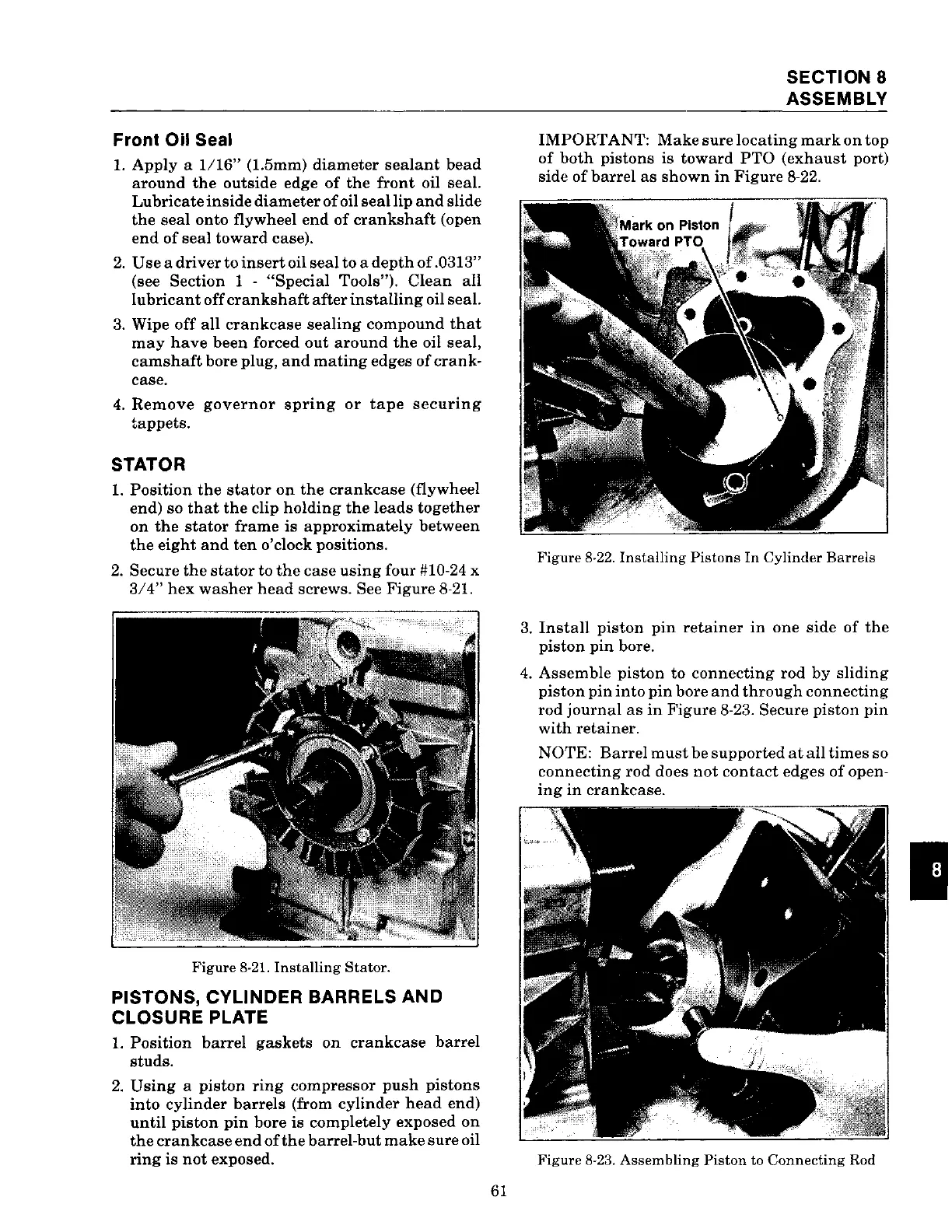

Front Oil Seal
1.
Apply
a
1/16"
(1.5mm)
diameter
sealant
bead
around
the
outside
edge
of
the
front
oil
seal.
Lubricate
inside
diameter
of
oil
seal
lip
and
slide
the
seal
onto
flywheel
end
of
crankshaft
(open
end
of
seal
toward
case).
2.
Use
a
drivertoinsertoil
seal
to
a
depth
of
.0313"
(see
Section
1 -
"Special
Tools").
Clean
all
lubricant
off
crankshaft
after
installing
oil
seal.
3. Wipe
off
all
crankcase
sealing
compound
that
may
have
been
forced
out
around
the
oil
seal,
camshaft
bore
plug,
and
mating
edges
of
crank-
case.
4.
Remove
governor
spring
or
tape
securing
tappets.
STATOR
1.
Position
the
stator
on
the
crankcase
(flywheel
end)
so
that
the
clip
holding
the
leads
together
on
the
stator
frame
is
approximately
between
the
eight
and
ten
o'clock
positions.
2.
Secure
the
stator
to
the
case
using
four
#10-24 x
3/
4"
hex
washer
head
screws. See
Figure
8-21.
Figure
8-21.
Installing Stator.
PISTONS,
CYLINDER
BARRELS
AND
CLOSURE
PLATE
1.
Position
barrel
gaskets
on
crankcase
barrel
studs.
2.
Using
a
piston
ring
compressor
push
pistons
into
cylinder
barrels
(from
cylinder
head
end)
until
piston
pin
bore
is
completely
exposed
on
the
crankcase
end
of
the
barrel-but
make
sure
oil
ring
is
not
exposed.
61
SECTION
8
ASSEMBLY
IMPORTANT:
Make
sure
locating
mark
on
top
of
both
pistons
is
toward
PTO
(exhaust
port)
side
of
barrel
as
shown
in
Figure
8-22.
Figure
8-22.
Installing Pistons In Cylinder Barrels
3.
Install
piston
pin
retainer
in
one
side
of
the
piston
pin
bore.
4.
Assemble
piston
to
connecting
rod
by
sliding
piston
pin
into
pin
bore
and
through
connecting
rod
journal
as
in
Figure
8-23.
Secure
piston
pin
with
retainer.
NOTE:
Barrel
must
be
supported
at
all
times
so
connecting
rod
does
not
contact
edges
of
open-
ing
in crankcase.
Figure 8-23.
Assembling
Piston to Connecting Rod
