RECTIFIER-REGULATOR
Attach rectifier-regulator to the top #1 side of the
blower housing with two 1/4-20 x 1 hex head
screws. The terminals on the rectifier-regulator
must face toward the P.T.O. end of the engine.
BREAKER POINTS
1. Push breaker push rod through center bore on
the breaker point mounting pad.
NOTE: When installing a "steel tipped" breaker
push rod, make sure the end with the steel tip is
inserted into the crankcase (toward camshaft).
2. Attach breaker point assembly to crankcase
with two #10-24 x 3/8 fillister head screws.
3. Adjust breaker points to an initial setting of
.020" fully open (see Figure 8-36). For final
timing procedure after engine assembly is com-
plete, see "Ignition Timing" in Section 6.

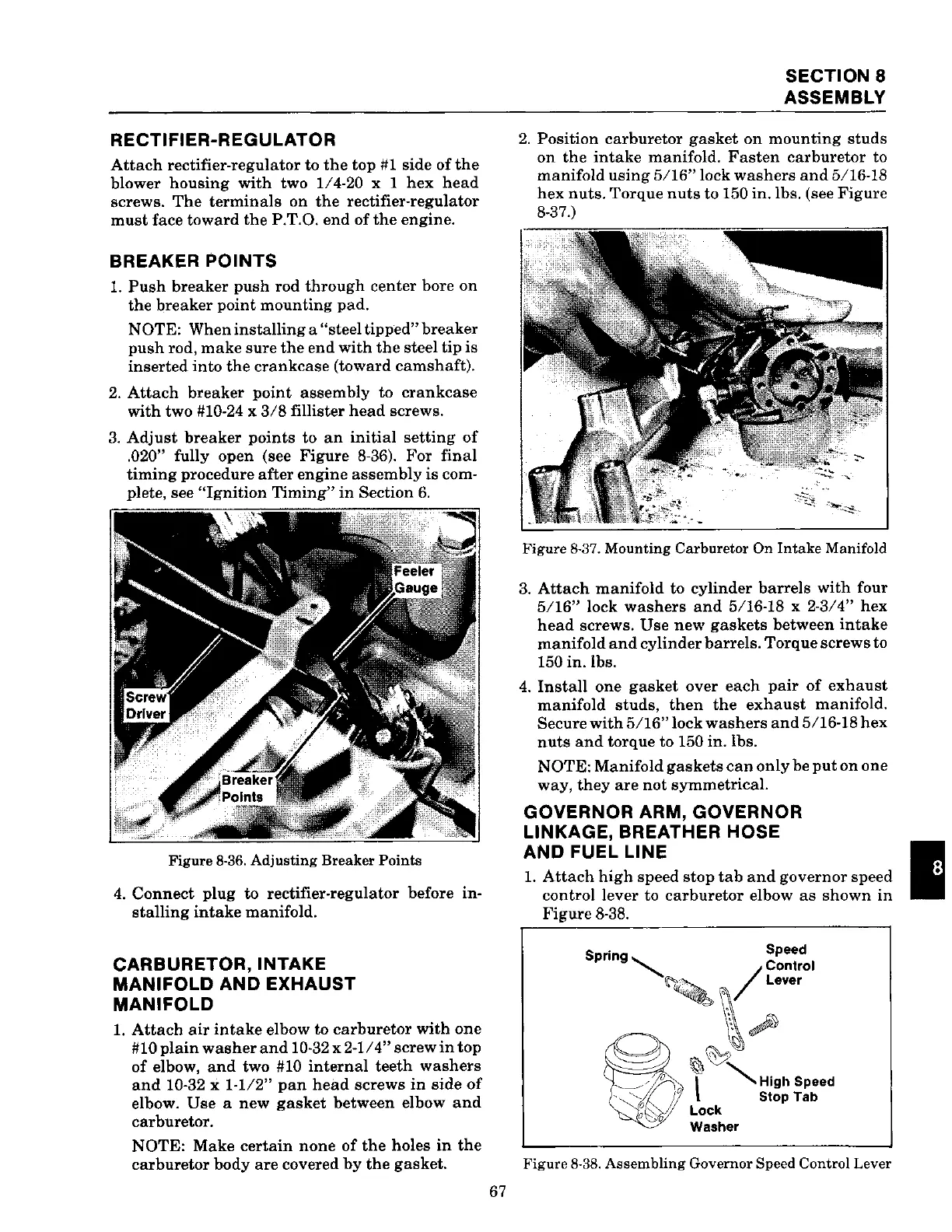

Figure 8-36. Adjusting Breaker Points
4. Connect plug to rectifier-regulator before in-
stalling intake manifold.
CARBURETOR, INTAKE
MANIFOLD
AND EXHAUST
MANIFOLD
1. Attach air intake elbow to carburetor with one
#10 plain washer and 10-32x2-1/4" screw in top
of elbow, and two #10 internal teeth washers
and 10-32 x 1-112" pan head screws in side of
elbow. Use a new gasket between elbow and
carburetor.
NOTE: Make certain none of the holes in the
carburetor body are covered by the gasket.
67
SECTION 8
ASSEMBLY
2. Position carburetor gasket on mounting studs
on the intake manifold. Fasten carburetor to
manifold using 5/16" Jock washers and 5/16-18
hex nuts. Torque nuts to 150 in. lbs. (see Figure
8-37.)
Figure
8-37. Mounting Carburetor On Intake Manifold
3.
Attach manifold to cylinder barrels with four
5116" Jock washers and 5/16-18 x 2-3/4" hex
head screws. Use new gaskets between intake
manifold and cylinder barrels. Torque screws to
150 in.lbs.
4. Install one gasket over each pair of exhaust
manifold studs, then the exhaust manifold.
Secure with 5/16" lock washers and 5116-18 hex
nuts and torque to 150 in. lbs.
NOTE: Manifold gaskets can only be put on one
way, they are not symmetrical.
GOVERNOR ARM, GOVERNOR
LINKAGE,
BREATHER HOSE
AND FUEL LINE
1. Attach high speed stop tab and governor speed
control lever to carburetor elbow as shown in
Figure 8-38.
Spring Speed
""-. •.· /Control
(('>~ " Lever
\~
~~"-..
~(} \ ~;~~ ~~~ed
0
f;yj! Lock
Washer
Figure 8-38. Assembling Governor Speed Control Lever
