SECTION 8
ASSEMBLY
2. On some early production KT17 models, -
attach breather hose to carburetor elbow with
hose clamp as shown in Figure 8-39.
On later KT17, KT19, and KT21 models, the
breather hose is inserted into a hole in the air
cleaner base. Refer to Section 3 - Air Intake
System.
3. Clamp fuel line from fuel pump outlet side to
carburetor (see Figure 8-39).

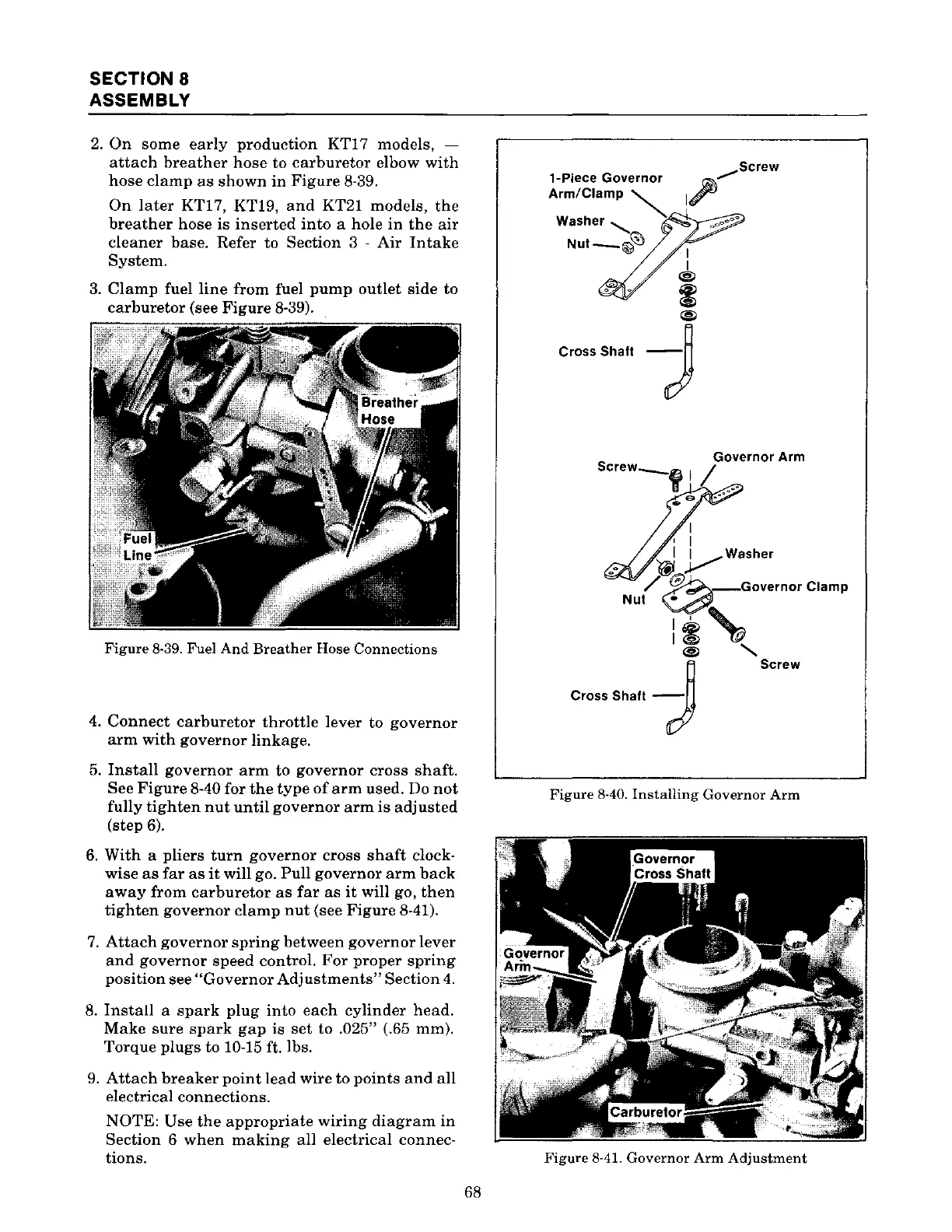

Figure 8-39. Fuel And Breather Hose Connections
4. Connect carburetor throttle lever to governor
arm with governor linkage.
5. Install governor arm to governor cross shaft.
See Figure 8-40 for the type of arm used. Do not
fully tighten nut until governor arm is adjusted
(step 6).
6. With a pliers turn governor cross shaft clock-
wise as far as it will go. Pull governor arm back
away from carburetor as far as it will go, then
tighten governor clamp nut (see Figure 8-41).
7. Attach governor spring between governor lever
and governor speed control. For proper spring
position see "Governor Adjustments" Section 4.
8. Install a spark plug into each cylinder head.
Make sure spark gap is set to .025" (.65 mm).
Torque plugs to 10-15 ft. lbs.
9. Attach breaker point lead wire to points and all
electrical connections.
NOTE: Use the appropriate wiring diagram in
Section 6 when making all electrical connec-
tions.
68
1-Piece Governor
Arm/Clamp ""
Washer '-... ;,::.,.:;--,.---;:;;.
Nut-~~
Cross Shalt
I
, I
~ VWasher
/-~--Governor Clamp
Nut~
I ' '-..
I~ "tP
-~ 'screw
Cross Shalt ?
Figure 8-40. Installing Governor Arm
Figure 8-41. Governor Arm Adjustment
