IGNITION COIL AND CONDENSER
1. Set ignition coil on intake manifold so that high
tension terminals are one over the other and
face toward the flywheel end of engine. When
looking at the coil from the flywheel end, the
minus(-) terminal should be on the right.
2. Set coil strap over coil, then secure lower end of
strap to intake manifold with a 1/4-20 x 7 /16"
hex washer head screw.
3. On early models, set condenser over hole in
other end of strap (condenser faces flywheel
end) then secure condenser and strap to mani-
fold with a 1/4-20 x 7 /16" hex washer head
screw.
SECTION 8
ASSEMBLY
4. On later models, place condenser (with con-
denser leads facing breaker) over crankcase
boss, located above breaker (see Figure 8-42).
Secure condenser to crankcase with 1/4-20 x
7116" self-tapping screw.

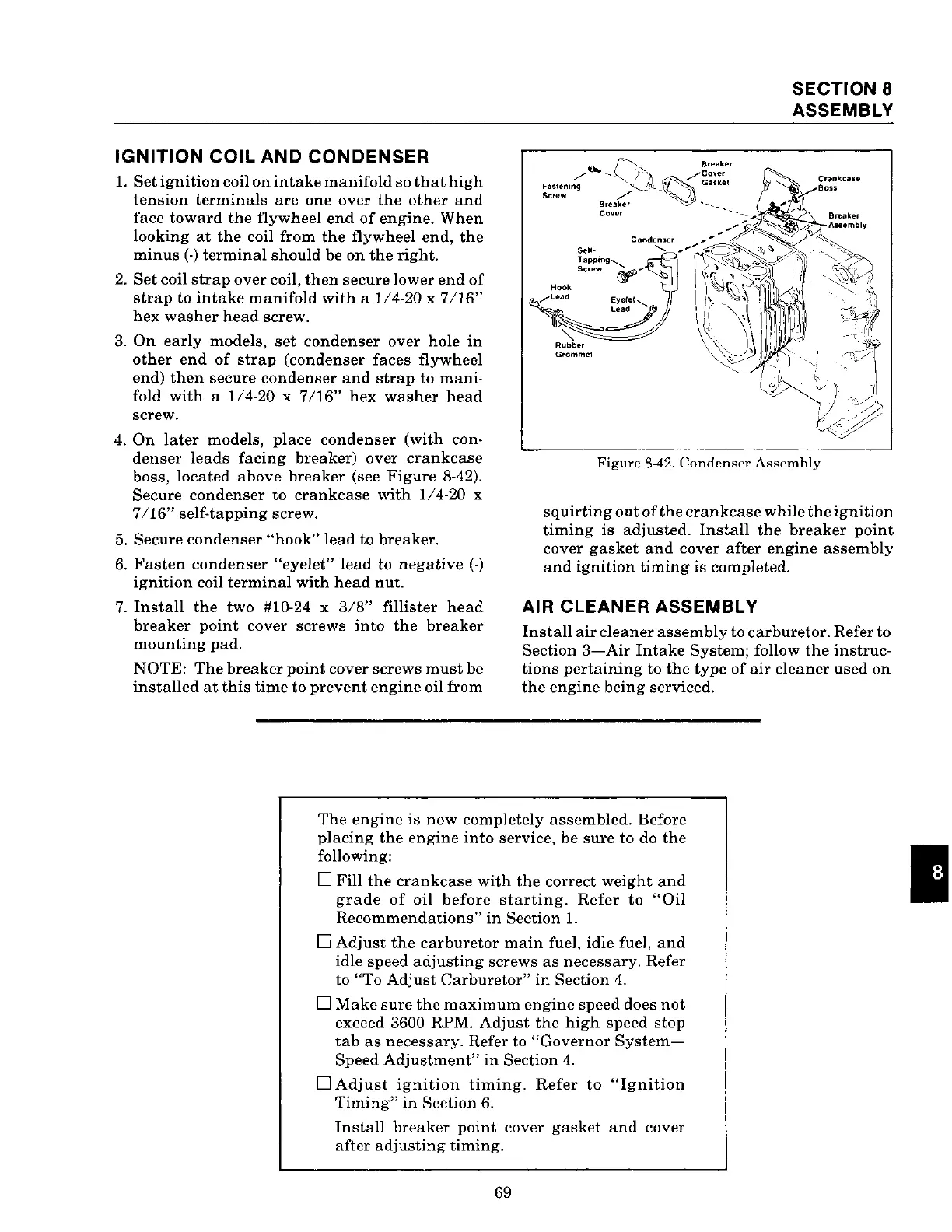

Figure 8-42. Condenser Assembly
5. Secure condenser "hook" lead to breaker.
6. Fasten condenser "eyelet" lead to negative (-)
ignition coil terminal with head nut.
7. Install the two #10-24 x 3/8" fillister head
breaker point cover screws into the breaker
mounting pad.
NOTE: The breaker point cover screws must be
installed at this time to prevent engine oil from
squirting out of the crankcase while the ignition
timing is adjusted. Install the breaker point
cover gasket and cover after engine assembly
and ignition timing is completed.
AIR CLEANER ASSEMBLY
Install air cleaner assembly to carburetor. Refer to
Section 3-Air Intake System; follow the instruc-
tions pertaining to the type of air cleaner used on
the engine being serviced.
The engine is now completely assembled. Before
placing the engine into service, be sure to do the
following:
D Fill the crankcase with the correct weight and
grade of oil before starting. Refer to "Oil
Recommendations" in Section 1.
D Adjust the carburetor main fuel, idle fuel, and
idle speed adjusting screws as necessary. Refer
to "To Adjust Carburetor" in Section 4.
D
Make sure the maximum engine speed does not
exceed 3600 RPM. Adjust the high speed stop
tab as necessary. Refer to "Governor System-
Speed Adjustment" in Section 4.
D Adjust ignition timing. Refer to "Ignition
Timing" in Section 6.
Install breaker point cover gasket and cover
after adjusting timing.
69
