Kohler MAGNUM M18

SECTION 2
SPECIAL TOOLS
ENGINE ANALYSIS KIT NO. KO-1000
Digital Tachometer
Digital Engine Analyzer
Thermocouples
Digital Voltmeter
Digital Thermometer
Slack Tube Manometer
Carrying Case

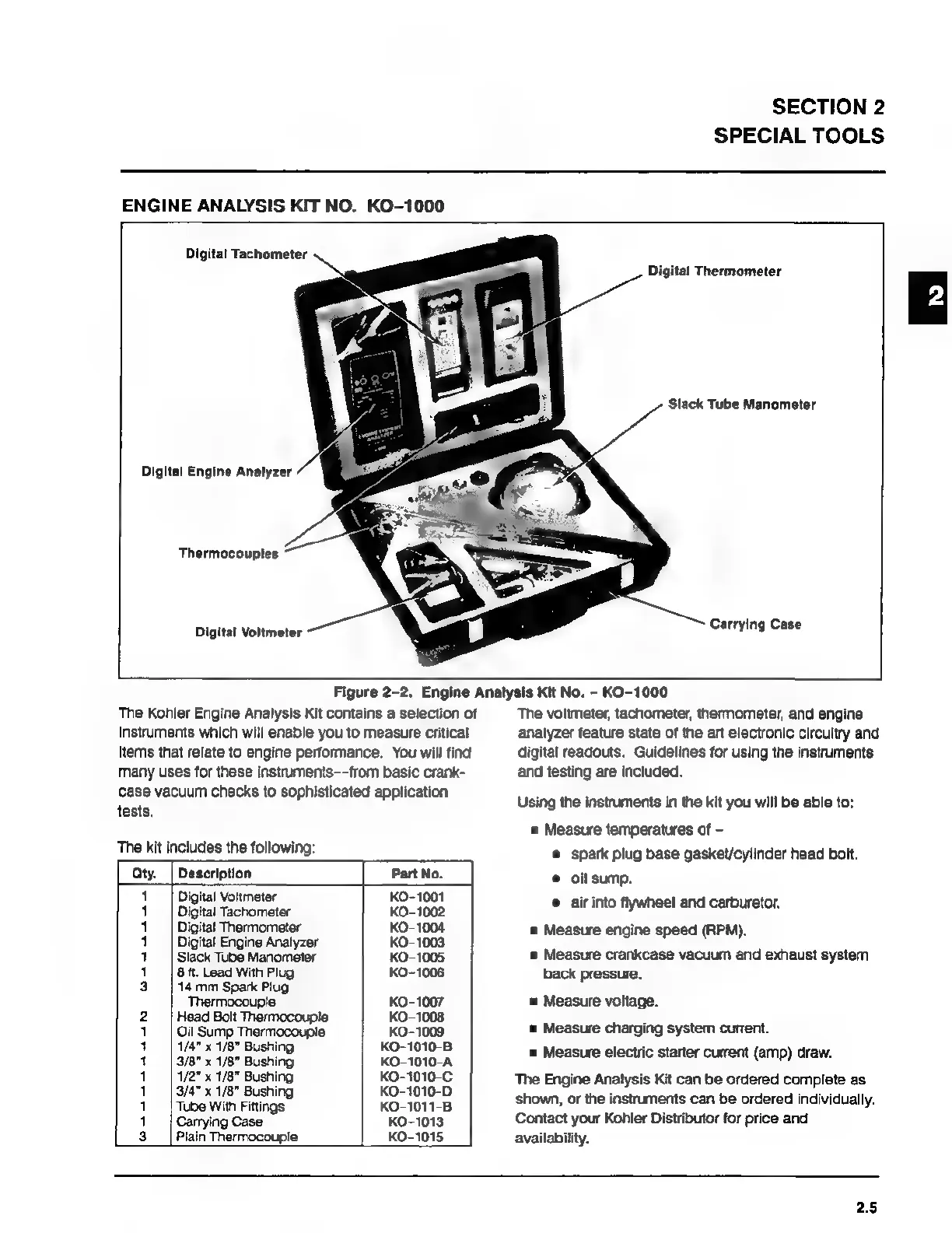

Figure 2-2. Engine Analysis Kit No. - KO-1000
The Kohler Engine Analysis Kit contains a selection of
instruments which will enable you to measure critical
items that relate to engine performance. You will find
many uses for these instruments--from basic crank-
Case vacuum checks to sophisticated application
tests.
The kit includes the following:
Qty. | Description Part No.
1 Digital Voltmeter KO-1001
1 | Digital Tachometer KO-1002
1 Digitat Thermometer KO-1004
1 | Digital Engine Analyzer KO-1003
1 Slack Tube Manometer KO-1005
1 8 ft. Lead With Plug KO-1006
3 14 mm Spark Piug
Thermocouple KO-1007
2 Head Bolt Thermocouple KO-1008
1 Ой Sump Thermocouple KO-1009
1 1/4" x 1/8" Bushing KO-1010-B
1 3/8" x 1/8" Bushing KO-1010-A
1 1/2" x 1/8" Bushing KO-1010-C
1 3/4" x 1/8" Bushing KO-1010-D
1 Tube With Fittings KO-1011-B
1 Carrying Case KO-1013
3 Piain Thermocouple KO-1015
The voltmeter, tachometer, thermometer, and engine
analyzer feature state of the art electronic circuitry and
digital readouts. Guidelines for using the instruments
and testing are included.
Using the instruments in the kit you will be able to:
m Measure temperatures of -
* spark plug base gasket/cylinder head bolt.
* oil sump.
* air into flywheel and carburetor.
п Measure engine speed (RPM).
п Measure crankcase vacuum and exhaust system
back pressure.
m Measure voltage.
п Measure charging system current.
= Measure electric starter current (amp) draw.
The Engine Analysis Kit can be ordered complete as
shown, or the instruments can be ordered individually.
Contact your Kohler Distributor for price and
availability.
