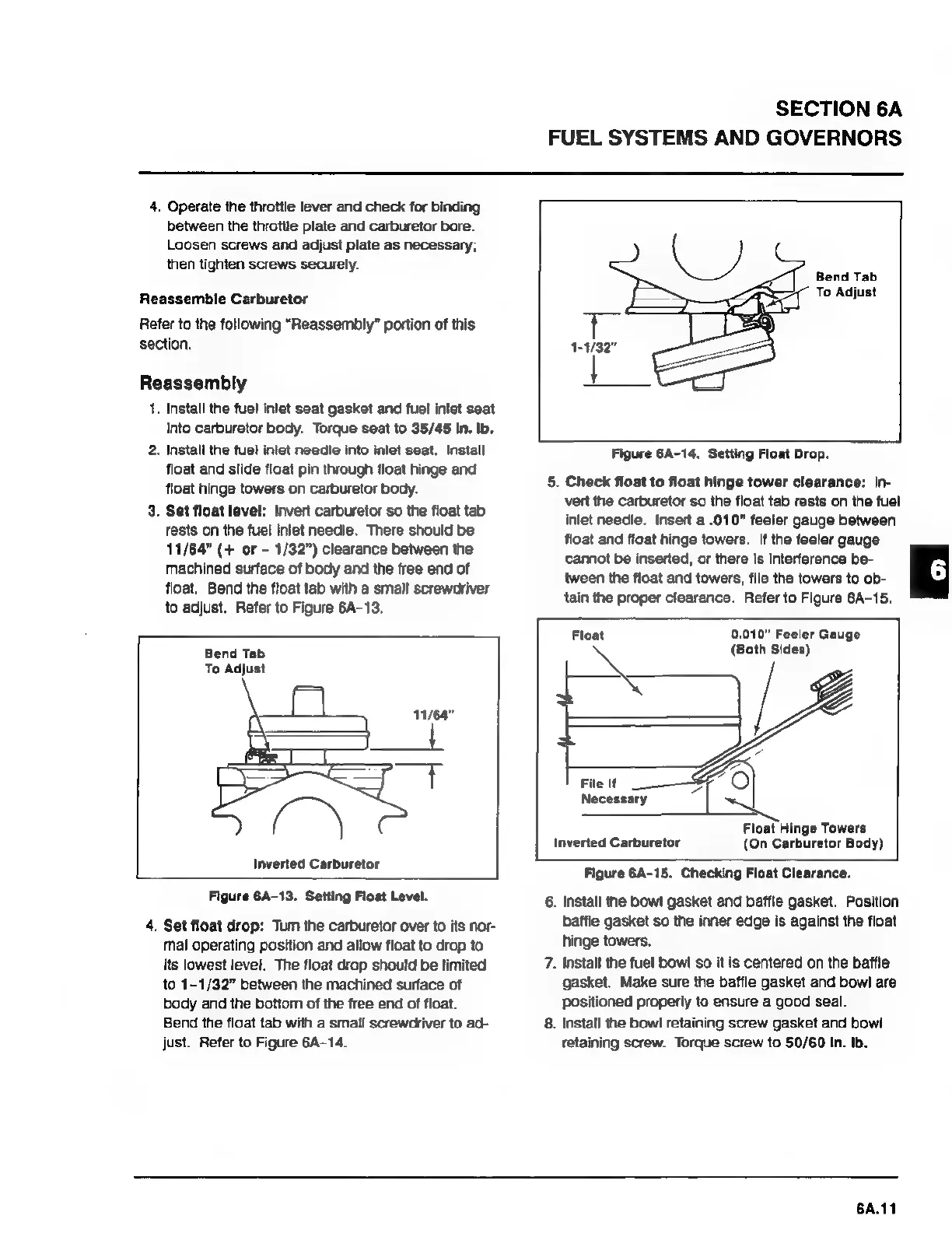

SECTION
6A
FUEL
SYSTEMS
AND
GOVERNORS
4.
Operate
the
throttle
lever
and
check
for
binding
between
the
throttle
plate
and
carburetor
bare.
Loosen
screws
and
adjust
plate
as
necessary;
then
tighten
screws
securely.
Reassemble
Carburetor
Refer
to
the
following
“Reassembly”
portion
of
this
section.
Reassembly
1.
install
the
fuel
inlet
seat
gasket
and
fuel
inlet
seat
into
carburetor
body.
Torque
seat
to
35/45
In. Ib.
2.
Install
the
fuel
inlet
needle
into
inlet
seat.
Install
float
and
slide
float
pin
through
float
hinge
and
float
hinge
towers
on
carburetor
body.
3.
Set
float
levet:
Invert
carburetor
so
the
float
tab
rests
on
the
fuel
inlet
needle.
There
should
be
11/64"
(+
or
-
1/32")
clearance
between
the
machined
surface
of
body
and
the
free
end
of
float.
Bend
the
float
tab
with
a
small
screwdriver
to
adjust.
Refer
to
Figure
6A-13.
Bend
Tab
To
Adjust
Inverted
Carburetor
Figure
6A-13.
Setting
Float
Level.
4.
Set
float
drop:
Tum
the
carburetor
over
to
its
nor-
mal
operating
position
and
aliow
float
to
drop
to
its
lowest
level.
The
float
drop
should
be
limited
to
1-1/32”
between
the
machined
surface
of
body
and
the
bottom
of
the
free
end
of
float.
Bend
the
float
tab
with
a
smaif
screwdriver
to
ad-
just.
Refer
to
Figure
6A-14.
Bend
Tab
To
Adjust
Figure
6А-14.
Setting
Float
Drop.
5.
Check
float
to
float
hinge
tower
clearance:
In-
vert
the
carburetor
so
the
float
tab
rests
on
the
fuel
inlet
needle.
Insert
a
.010"
feeler
gauge
between
float
and
float
hinge
towers.
If
the
feeler
gauge
cannot
be
inserted,
or
there
is
interference
be-
tween
the
float
and
towers,
file
the
towers
to
ob-
tain
the
proper
clearance.
Refer
to
Figure
6A-15.
0.010"
Feeler
Gauge
(Both
Sides)
Float
М
File
If
Necessary
~
Float
Hinge
Towers
(On
Carburetor
Body)
Inverted
Carburetor
Figure
6A-15.
Checking
Float
Clearance.
6.
Install
the
bowl
gasket
and
baffle
gasket.
Position
baffle
gasket
so
the
inner
edge
is
against
the
float
hinge
towers.
7.
Install
the
fuel
bowl
so
it
is
centered
on
the
baffle
gasket.
Make
sure
the
baffle
gasket
and
bowl
are
positioned
properly
to
ensure
a
good
seal.
8.
Install
the
bowl
retaining
screw
gasket
and
bowl
retaining
screw.
Torque
screw
to
50/60
In.
Ib.
6А.11
