Kohler MAGNUM M18

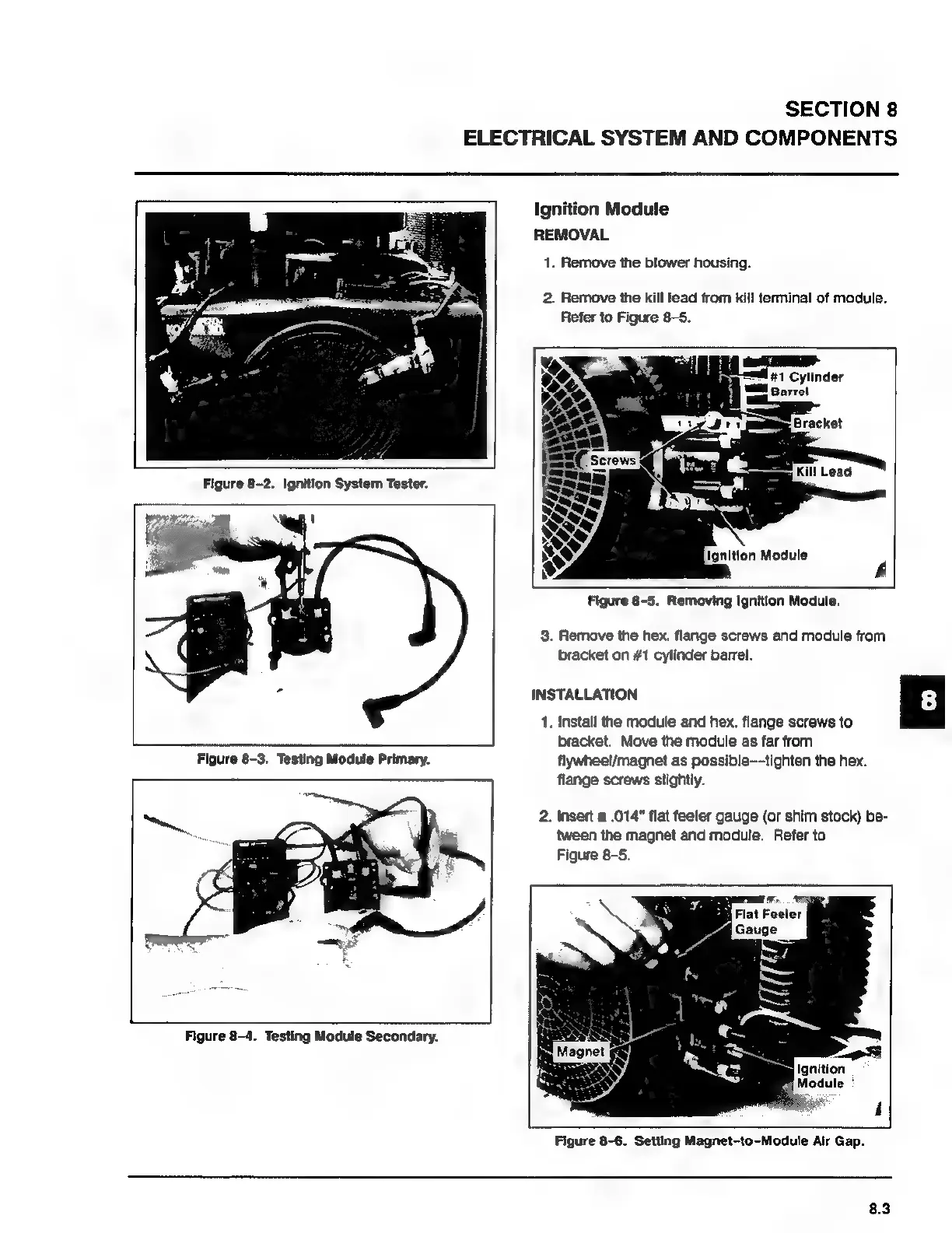

SECTION 8
ELECTRICAL SYSTEM AND COMPONENTS
Ignition Module
REMOVAL
1. Remove the blower housing.
2. Remove the kill lead from kill terminal of module.
Refer to Figure 8-5.
#1 Cylinder
arret
Figure 8-5. Removing Ignition Module.
3. Remove the hex. flange screws and module from
bracket on #1 cylinder barrel.
INSTALLATION
1. Install the module and hex. flange screws to
bracket. Move the module as far from
Figure 8-3. Testing Module Primary. flywheel/magnet as possible-~-tighten the hex.
flange screws slightly.
2. Insert a .014" flat feeler gauge (or shim stock) be-
tween the magnet and module. Refer to
Figure 8-5.
Figure 8-4. Testing Module Secondary.
Figure 8-6. Setting Magnet-to-Module Air Gap.
8.3
