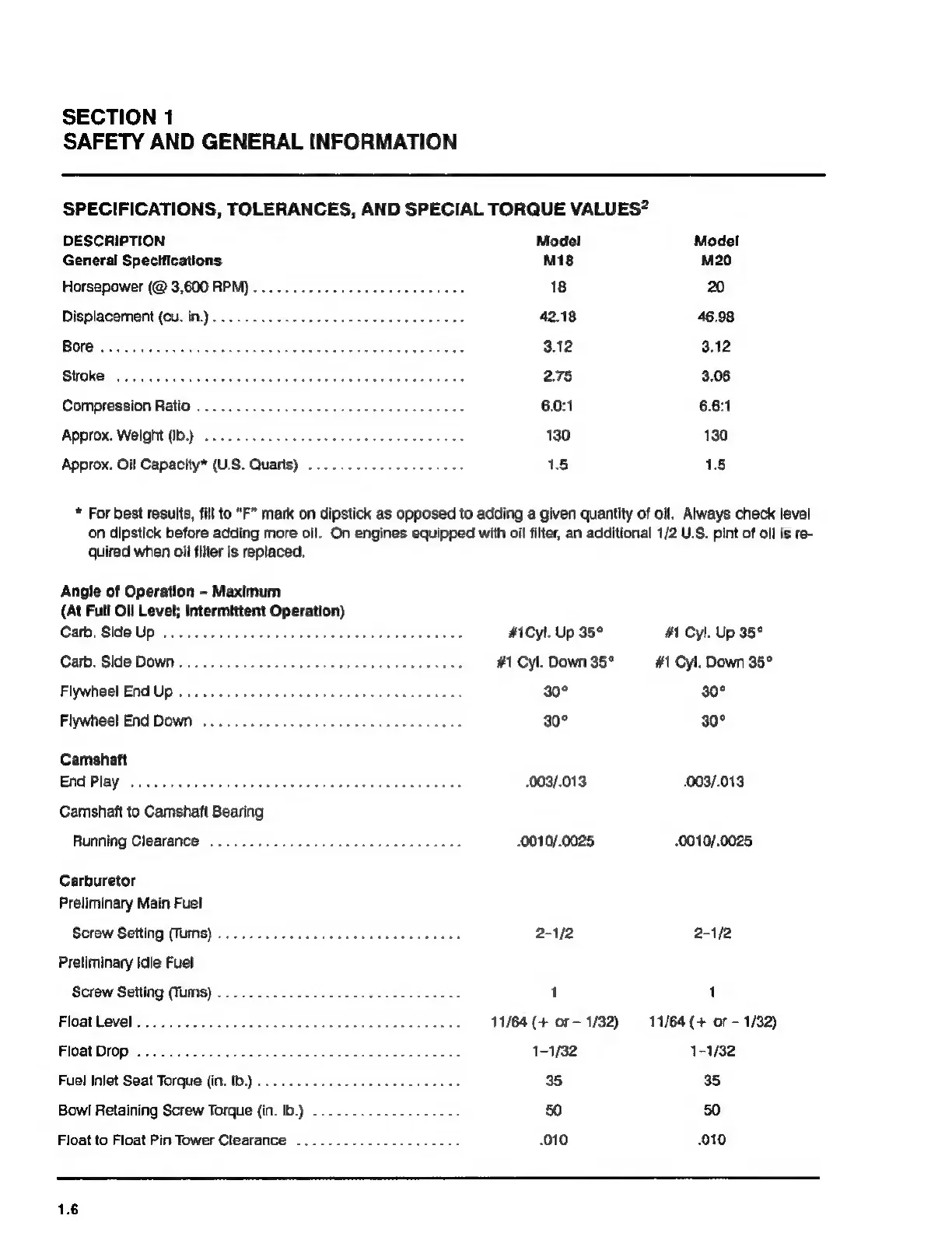

SECTION 1
SAFETY AND GENERAL INFORMATION
SPECIFICATIONS, TOLERANCES, AND SPECIAL TORQUE VALUES?
DESCRIPTION Model Model
General Specifications M18 M20
Horsepower (@ 3,600 ВРМ)........................... 18 20
Displacement (cu. in) ............................-... 42.18 46.98
Lj а БКМК БУЗУУ wlio AE E ДИЕТЫ 3.12 3.12
ЭШКЕ уаз» oly dole TUS eig crit ЧЫКЕ ЕУ ҮСҮЕ 2.75 3.06
Compression Ratio .................................. 6.0:1 6.6:1
Approx. ИШКЕ}. 0.0... унйн ыы ышы 130 130
Approx. Oi! Capacity* (U.S. Quarts) .................... 1.5 1.5
* For best results, fill to “F” mark on dipstick as opposed to adding a given quantity of ой. Always check level
on dipstick before adding more oil. On engines equipped with oil filter, an additional 1/2 U.S. pint of oil is re-
quired when oil filter is replaced.
Angle of Operation - Maximum
(At Full Oil Level; Intermittent Operation)
Carb. Side Up .. #1Cyl. Up 35° #1 Cyl. Up 35°
Carb. Side Down. . #1 Cyl. Down 35° #1 Cyl. Down 35°
Flywheel End Up .. 30° 30°
Flywheel End Down . 30° 30°
Camshaft
End Play ... .003/.013 -003/.013
Camshaft to Camshaft Bearing
Running Clearance -0010/.0025 .0010/.0025
Carburetor
Prelirninary Main Fuel
Screw Setting (ТЭШ)... „4з уз ээй aa a aE 2-1/2 2-1/2
Pretiminary Idle Fuel
Screw Setting (Тит)... 1 1
іса [емеге ава ТҮ ГЕТЕ 11/64 (+ or - 1/32) 11/64 {+ or - 1/32)
Float Drop 1-1/32 1-1/32
Fuel Inlet Seat Torque (in. Ib.) . . 35 35
Bowl Retaining Screw Torque (in. Ib.) 50 50
Float to Float Pin Tower Clearance .............. cH 010 010
16
