Kohler MAGNUM M18

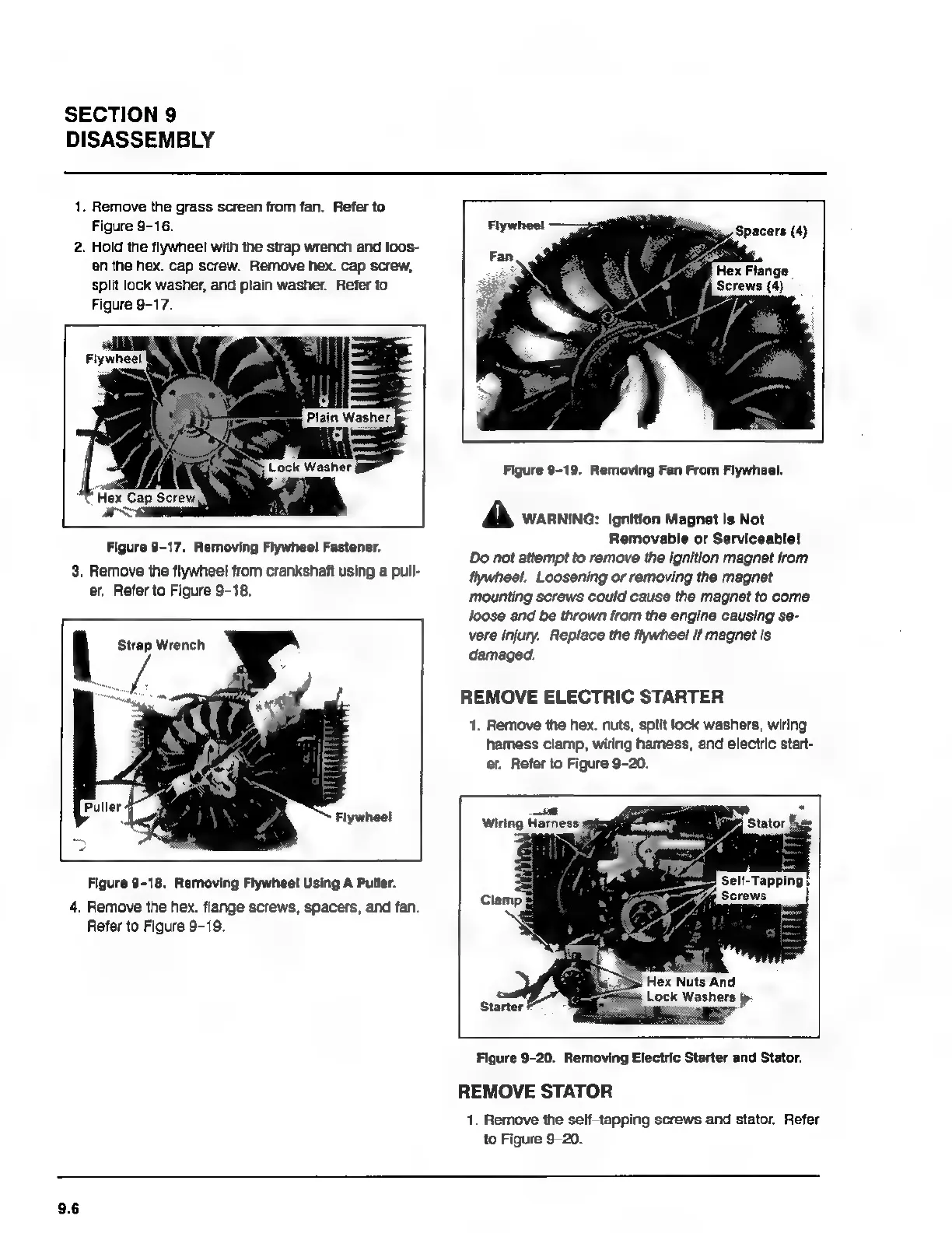

SECTION 9
DISASSEMBLY
1. Remove the grass screen from fan. Refer to
Figure 9-16.
2. Hold the flywheel with the strap wrench and loos-
en the hex. cap screw. Remove hex. cap screw,
split lock washer, and plain washer. Refer to
Figure 9-17.
Figure 9-17. Removing Flywheel Fastener.
3, Remove the flywheel fram crankshaft using a pull-
er, Refer ta Figure 9-18.
| Strap Wrench
Figure 9-18. Removing Flywheel Using A Puller.
4. Remove the hex. flange screws, spacers, and fan.
Refer to Figure 9-19.
Spacers (4)
Hex Flange |
Screws (4)
Figure 9-19. Removing Fan From Flywheel.
A WARNING: Ignition Magnet Is Not
Removable or Serviceable!
Do not attempt to remove the ignition magnet from
flywheel. Loosening or removing the magnet
mounting screws could cause the magnet to come
loose and be thrown trom the engine causing se-
vere injury. Replace the flywheel if magnet is
damaged.
REMOVE ELECTRIC STARTER
1. Remove the hex. nuts, split lock washers, wiring
hamess clamp, wiring hamess, and electric start-
er. Refer to Figure 9-20.
oe
R
252 нех Nuts And
=: Lock Washers jp:
Figure 9-20. Removing Electric Starter and Stator.
REMOVE STATOR
1. Remove the self-tapping screws and stator. Refer
to Figure 9-20.
9.6
