-3-

STEP

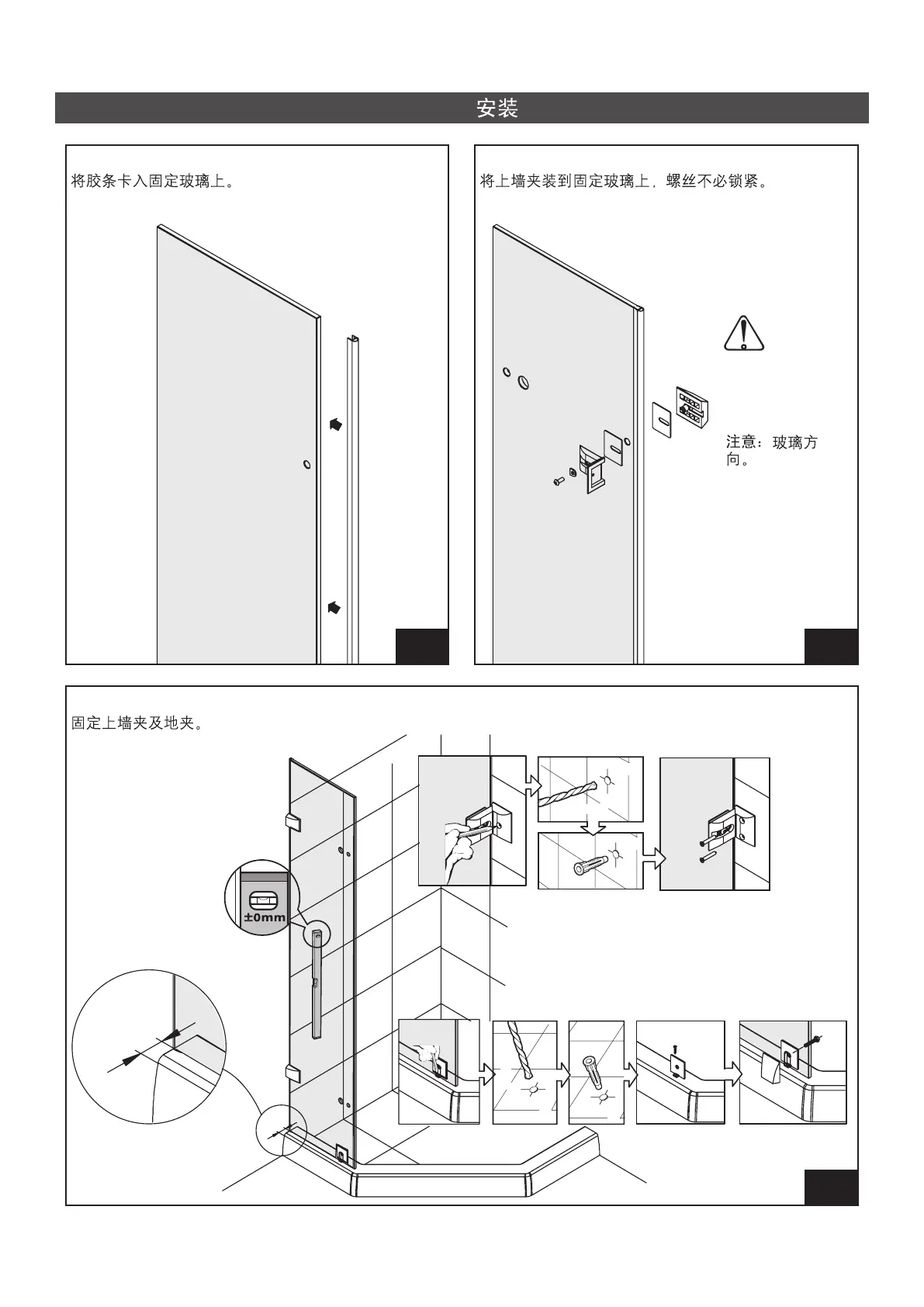

Fix the gasket to the glass.

STEP

Affix the wall clip to the glass ,screws not locked.

Note: Please

insert the glass

in the correct

direction.

INSTALLATION

STEP

Fix the wall clip and the floor clip.

6mm

1146426-T01-B
