Installation
2 Dene the position of connector: Place the connector onto the pan, position
between outlet and waste pipe.
1 Remove the existing toilet: Turn o the water supply and ush the toilet, then
sponge out all remaining water from the cistern. Disconnect the supply shut-o
valve (if present), and remove the old pan and cistern.
CAUTION: Risk of hazardous gases. If the new toilet is not installed immediately,
temporarity stu a rag in the closet ange.
3 Position the template on the oor. Mark the positions of the oor xing kit holes.

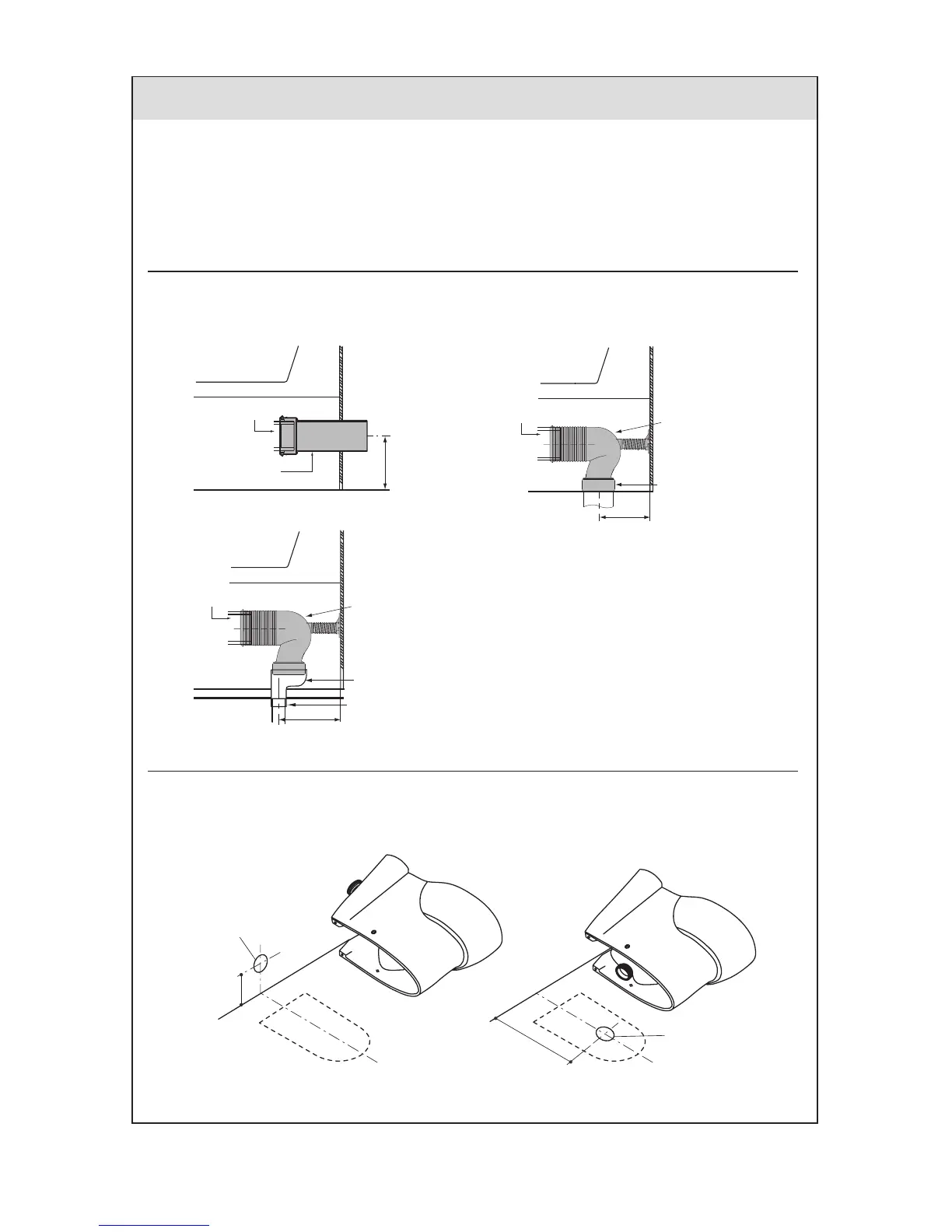

Waste Pipe
Waste Pipe
A
B
Connector to Wall Connector to Wall
Wall
Wall
Case 1 Case 2
Finished
Wall
Finished
Wall
Pan
Connector
Waste Pipe
Connector
Waste Pipe
Connector
X
Pan
X
Case 3
Finished
Wall
Connector
Waste Pipe
Connector
Pan
X
Offset Pan Collar
X = Set out as per spec sheet

Kohler PERSUADE Specifications

General

Bowl Shape	Elongated
Material	Vitreous China
WaterSense Certified	Yes
ADA Compliant	Yes
Flush Type	Gravity
Water Consumption	1.28 GPF
Rough-In	12 inches
Color Options	White, Biscuit, Black
