Disassembly/Inspection and Service
WARNING
Before working on engine or equipment, disable engine as
follows: 1) Disconnect spark plug lead(s). 2) Disconnect
negative (–) battery cable from battery.
Accidental Starts can cause severe injury or
death.
Disconnect and ground spark plug lead(s)
before servicing.
KohlerEngines.com 18 690 06 Rev. --

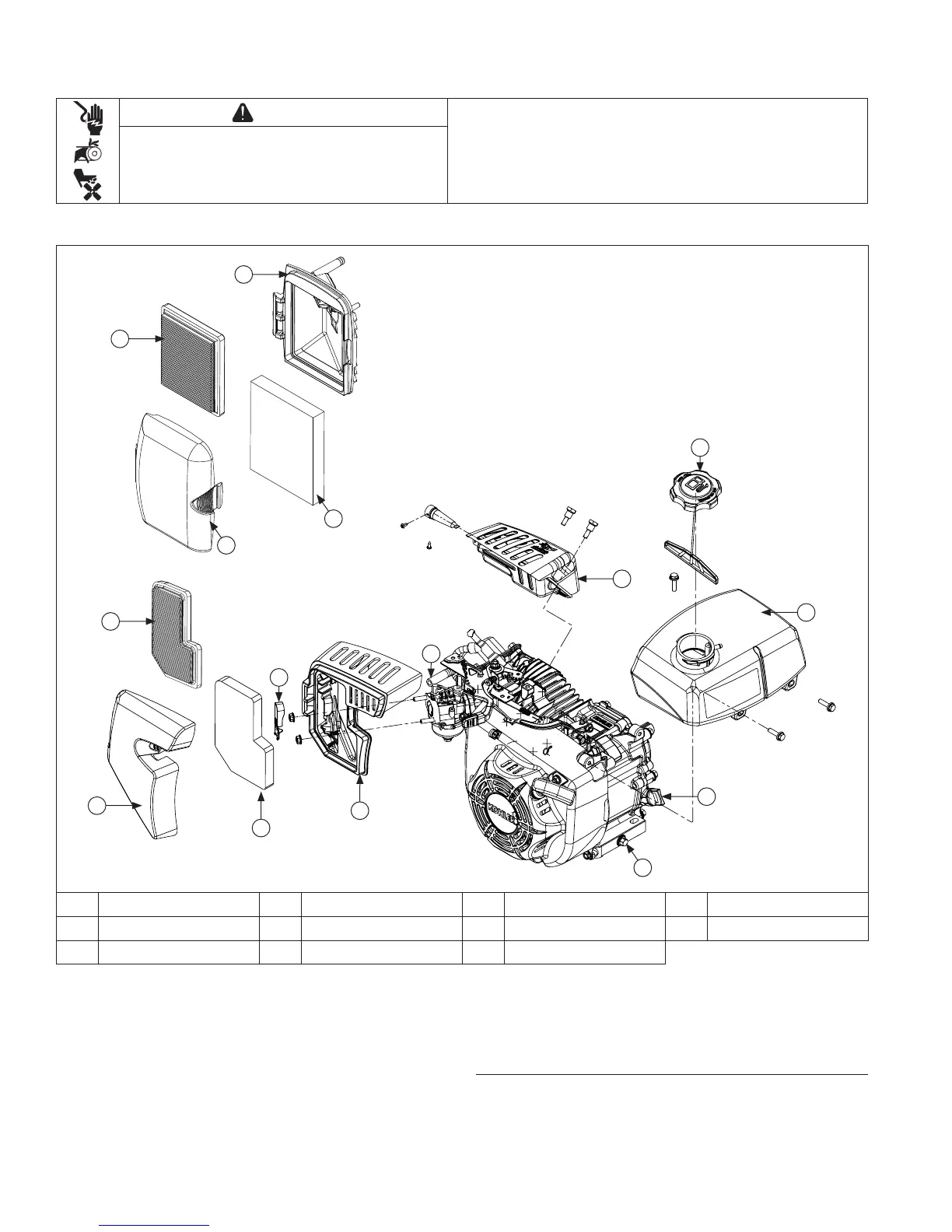

External Engine Components
B
K
E
D
I
G
A
C
J
G
I
K
J
H
F
A Oil Drain Plug B Dipstick/Oil Fill Plug C Fuel Tank D Fuel Tank Cap
E Muffl er Assembly F Breather Tube G Air Cleaner Base H Spit Cup Cover
I Foam Element J Paper Element K Air Cleaner Cover
Clean all parts thoroughly as engine is disassembled.
Only clean parts can be accurately inspected
and gauged for wear or damage. There are many
commercially available cleaners that will quickly remove
grease, oil, and grime from engine parts. When such a
cleaner is used, follow manufacturer’s instructions and
safety precautions carefully.
Make sure all traces of cleaner are removed before
engine is reassembled and placed into operation. Even
small amounts of these cleaners can quickly break down
lubricating properties of engine oil.
Disconnect Spark Plug Lead
NOTE: Pull on boot only, to prevent damage to spark
plug lead.
Disconnect spark plug lead from spark plug.
