Kohler RH265 Service Manual

5
Specifi cations
18 690 06 Rev. -- KohlerEngines.com

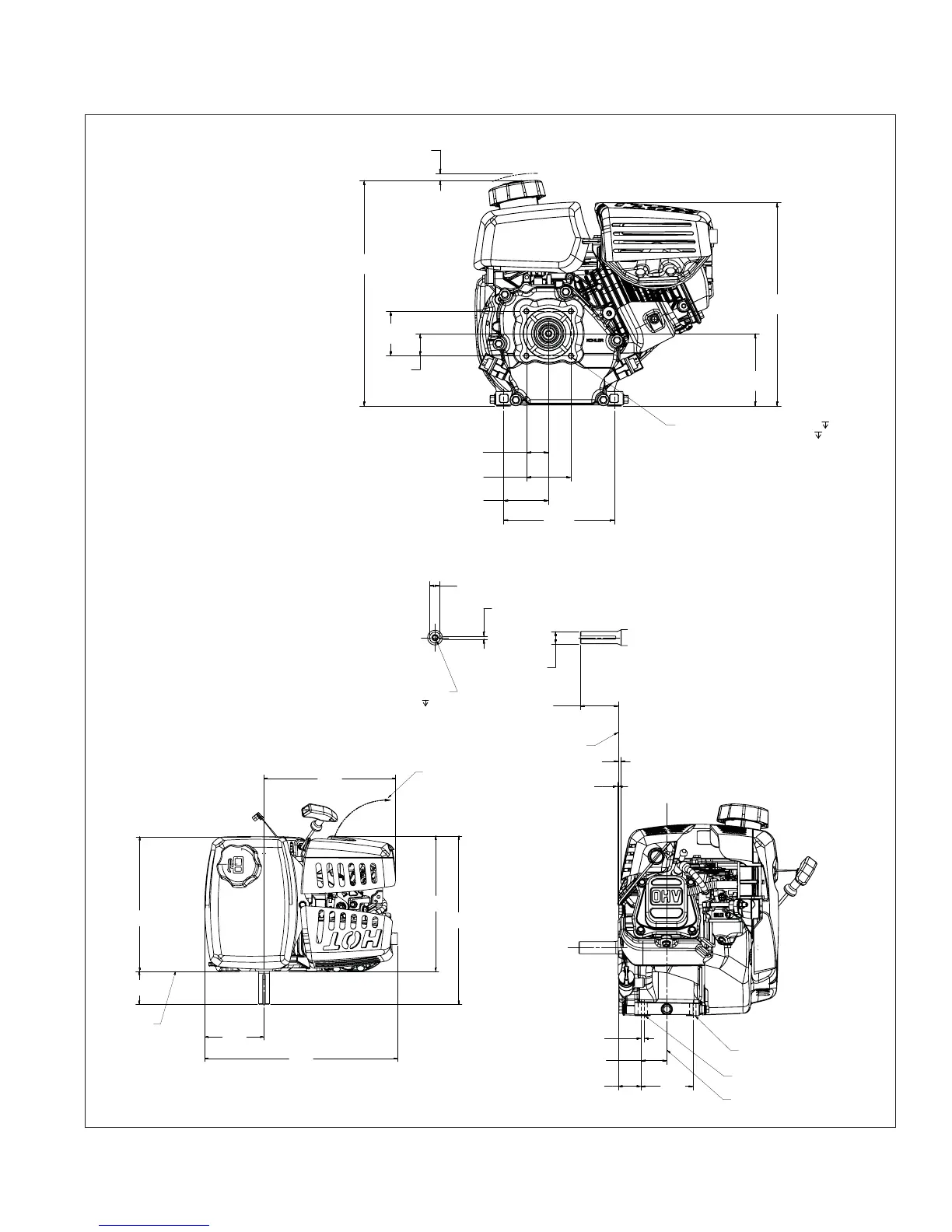

Engine Dimensions
Dimensions in millimeters. Inch equivalents shown in [ ].
329.53
[12.974]
FUEL CAP
REMOVAL
10.50
[0.413]
65.05
[2.561]
32.53
[1.281]
162.00
[6.378]
32.53
[1.281]
65.05
[2.561]
66.00
[2.598]
METRIC FLANGE: 4X M8 X 1.25-6H 15.00 [0.591]
SAE FLANGE: 4X
5/16-24 UNF-2B 15.00 [0.591]
297.37
[11.707]
106.00
[4.173]
5.00
[0.197]
15.24
[0.600]
40.00
[1.575]
35.71
[1.406]
80.50
[3.169]
1.16
[0.046]
3.89
[0.153]
61.24
[2.411]
MOUNTING FACE
Ø 19.0 [0.75]
4.74
[0.187]
2X Ø 10.00 [0.394]
2X Ø 10.00 [0.394] X 15.00 [0.590] SLOT
CYLINDERC
L
Ø 19.0 [0.75]
5/16-24 UNF-2B
24.5
3/4” STRAIGHT SHAFT
SAE
242.84
[9.561]
249.68
[9.830]
310.92
[12.241]
248.54
[9.785]
61.24
[2.411]
355.66
[14.002]
109.37
[4.306]
AIR CLEANER COVER
OPENING SWING DIRECTION
MOUNTING FACE

Kohler RH265 Specifications

General

Bore	68 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Lubrication System	Splash
Fuel Capacity	3.6 liters
