11 - ENG

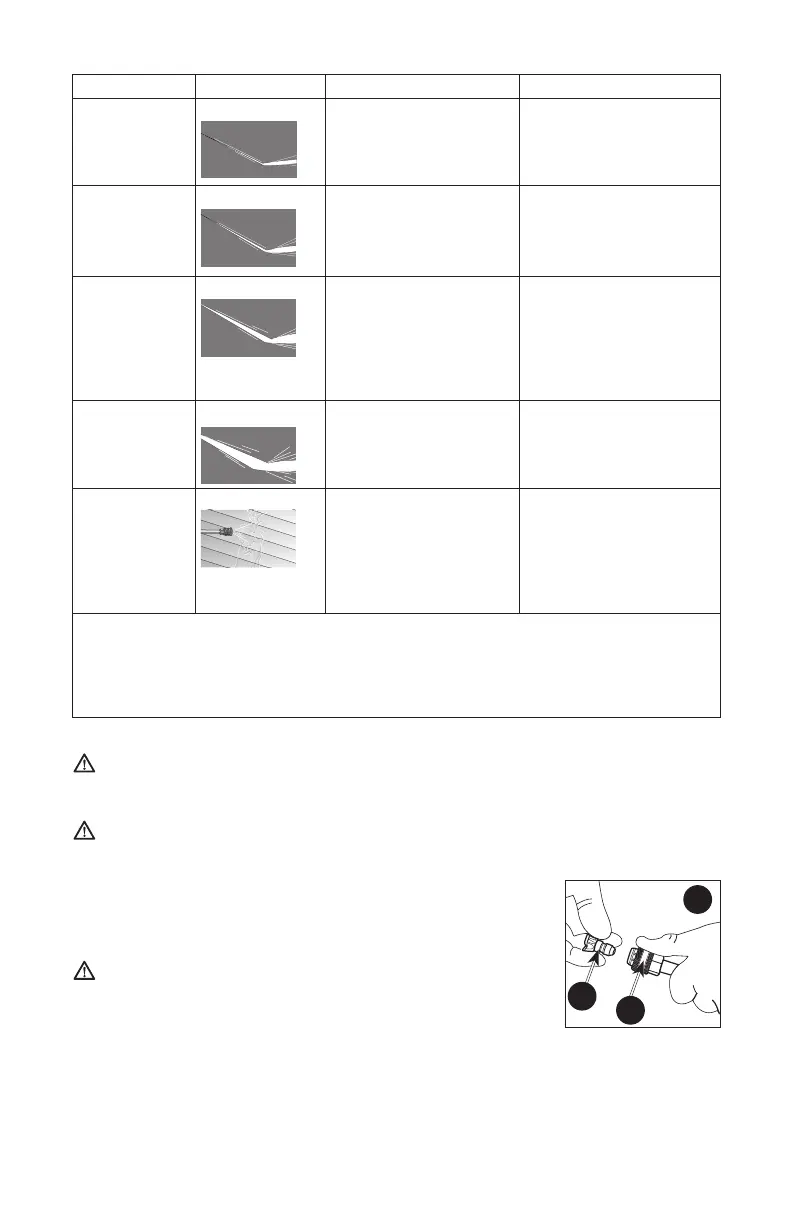

NOZZLE COLOR SPRAY PATTERN USES SURFACES*
Red
0˚
powerful pinpoint for
spot cleaning of hard,
unpainted surfaces or
for high reach areas
unpainted metal
or concrete;
DO NOT use on wood
Yellow
15˚
intense cleaning
of unpainted
hard surfaces
grills, driveways,
concrete or brick
walkways, unpainted
brick or stucco
Green
25˚
standard clean-
ing nozzle for most
applications
yard tools, sidewalks,
lawn furniture,
unpainted siding,
stucco, gutters and
eaves, concrete,
brick surfaces
White
40˚
cleaning of painted
or delicate surfaces
auto/RV, marine,
wood, painted brick
and stucco, vinyl,
painted siding
Black
low pressure
applies cleaning
solutions
Low pressure
spray is safe on all
surfaces. Always
verify compatibility
of cleaning solution
prior to use.
*NOTICE: The high pressure spray from your pressure washer is capable of
causing damage to surfaces such as wood, glass, automobile paint, auto striping
and trim, and delicate objects such as flowers and shrubs. Before spraying, check
the item to be cleaned to assure yourself that it is strong enough to resist damage
from the force of the spray.
CHANGING NOZZLES ON SPRAY WAND (FIG. 6)
DANGER: Risk of fluid injection. Do not direct discharge stream toward
persons, unprotected skin, eyes or any pets or animals. Serious injury will
occur.
WARNING: Flying objects could cause risk of serious injury. Do not
attempt to change nozzles while pressure washer is running. Turn engine off
before changing nozzles.
1. Pull quick-connect coupler (E) back and insert nozzle (K).
6
K
E
2. Release quick-connect coupler and twist nozzle to
make sure it is secure in coupler.
WARNING: Flying object could cause risk of serious
injury. Ensure nozzle is completely inserted in quick-
connect socket and quick-connect collar is fully engaged
(forward) before squeezing gun trigger.
