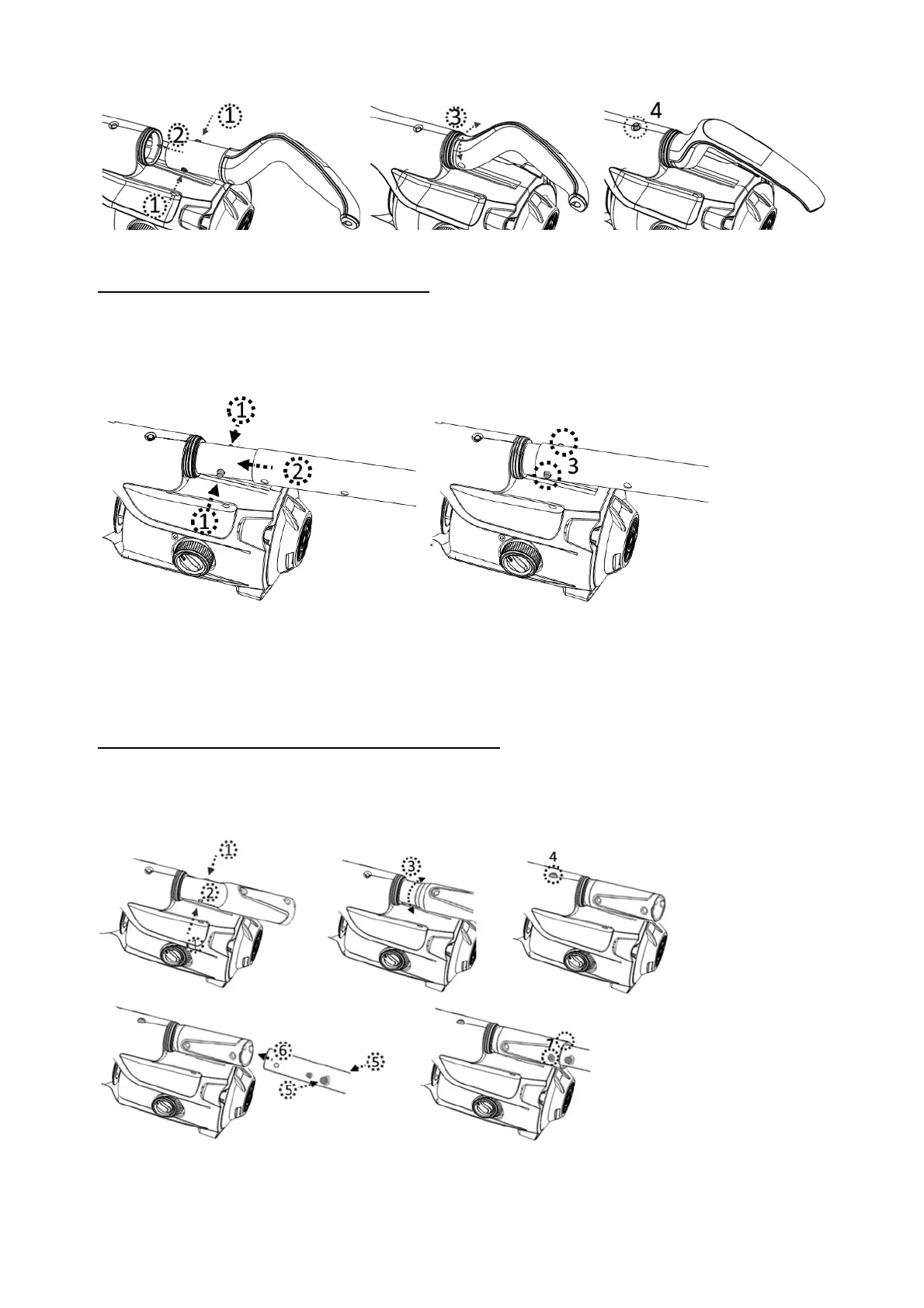

Telescopic pole (not included) assembly
Note: a V-clip is installed inside the pole connector to secure the telescopic pole (not
included) in position. Slide the telescopic pole onto the pole connector. Press on the side
pins of the connector and slide the telescopic pole further down until the pins of the
connector are secured inside the holes of the pole.
To release the telescopic pole, press down the side pins simultaneously and pull out the
pole.
Specific Telescopic pole (not included) assembly
Insert the end (with two side pins) of the specific telescopic pole connector into the pool
vacuum as shown until its side pins are secured to the handle’s locking hole on the rear
body. To install the specific telescopic pole (with internal wishbone clip) to the pole
connector as shown:
