Manual EDU 2AE/TOP and EDU 2AE/TOP/TA Rev. 3 Page 17

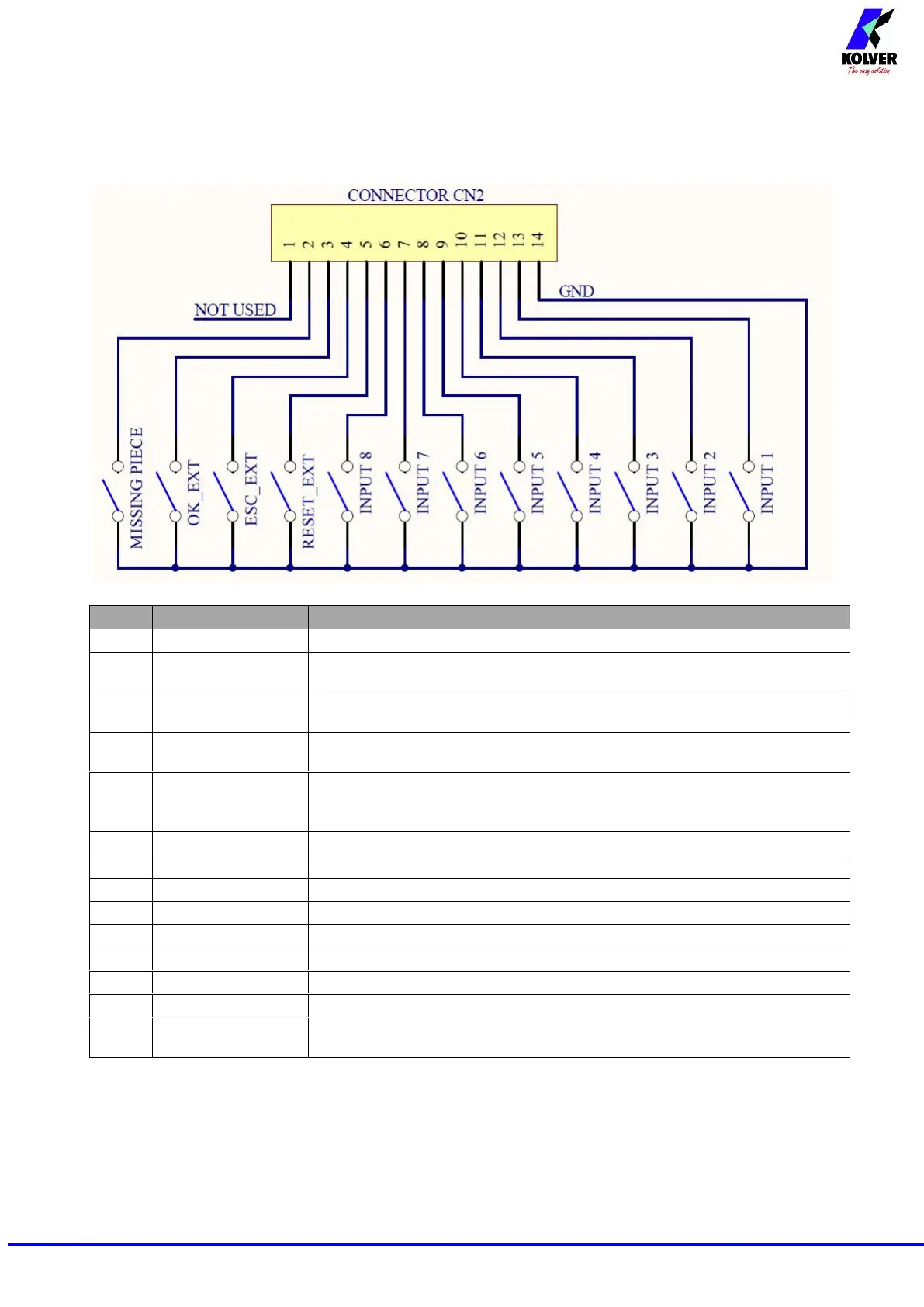

 CN2 CONNECTOR – 14 pins
All of the following pins are input: make a contact with pin 14 to activate them.
PIN
NAME
FUNCTION
1
NOT USED
2
MISSING PIECE
If enabled it stops the motor, enables the error signal and “Error missing
piece” is displayed on the status bar.
3
OK EXT
If enabled (see point 4: OK-ESC commands, in the option menu), remote
OK key function.
4
ESC EXT
If enabled (see point 4: OK-ESC, in the option menu), ESC key function to
reser remote errors.
5
RESET EXT
If enabled (see point 4: OK-ESC commands, in the option menu), it resets
program or sequence according to the preset function (see point 5: Reset, in
the option menu)
6
INPUT 8
Switch – selection of program 8
7
INPUT 7
Switch – selection of program 7
8
INPUT 6
Switch – selection of program 6
9
INPUT 5
Switch – selection of program 5
10
INPUT 4
Switch – selection of program 4
11
INPUT 3
Switch – selection of program 3
12
INPUT 2
Switch – selection of program 2
13
INPUT 1
Switch – selection of program 1
14
GND
Common to every input (1-13). Signals have to be enabled making contact
between the desired signal and this pin (common 0VDC) .
