METHOD FOR INSTALLING TRUNNION CAP
1.
Lower the work equipment to the ground.
2.
Set the work equipment lock lever to LOCK position.
3.
Stop the engine.
4.

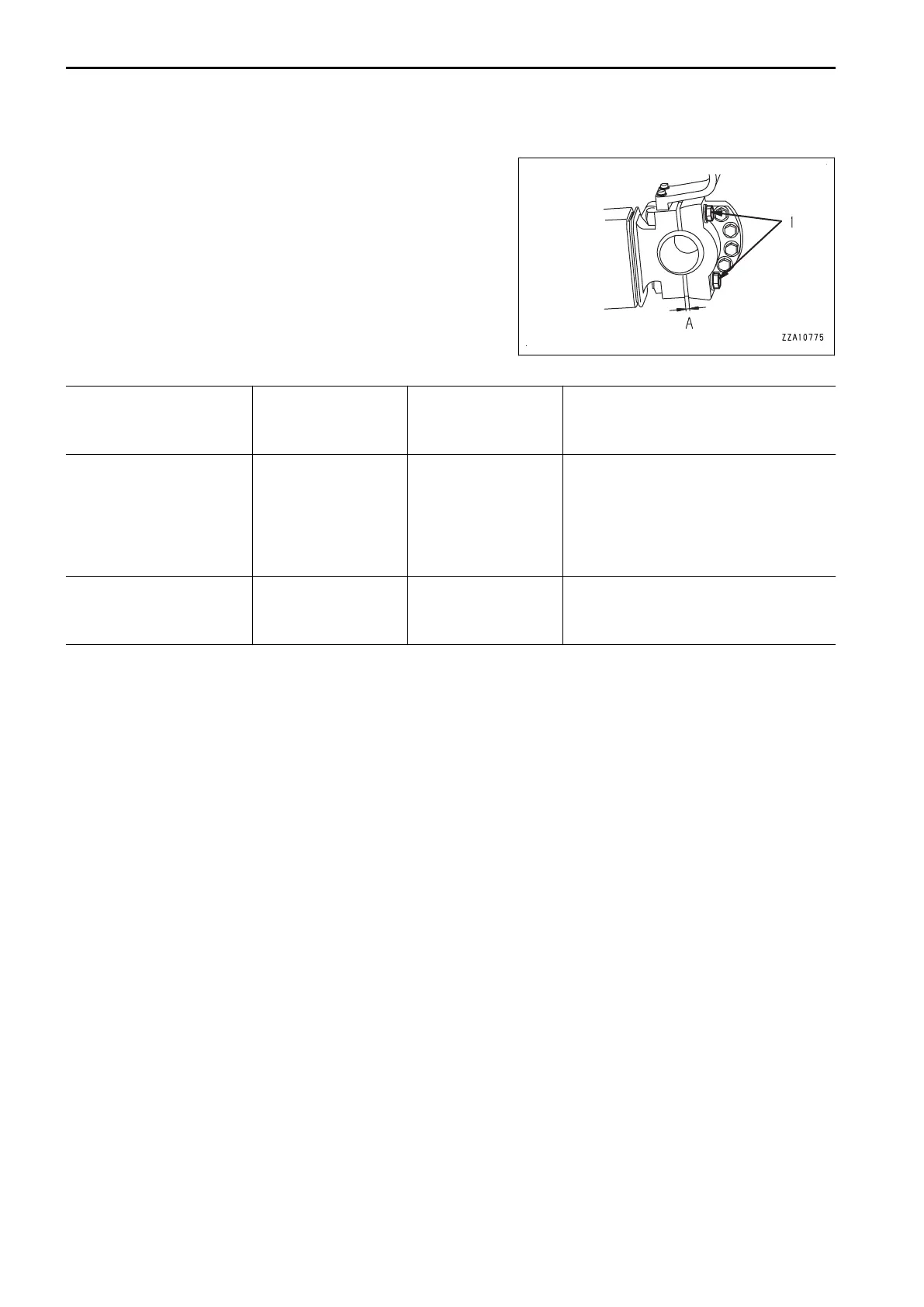

Install the shims. (Top, bottom: 2 places)
(A) Standard number of shims: Thickness 1 mm (0.039 in)
x 10 pieces
5.
Tighten bolts (1) alternately until they reach the specified
torque.
For detail, see “METHOD FOR ADJUSTING SHIMS AT
TRUNNION (4-50)”.
Thread diameter of clamp-
ing bolt
( mm ( in))
Shim part No.
Tightening torque
( Nm { kgm, lbft})
Specifications of work equipment
24 (0.9) 14Y-71-22280
785 to 980
{80 to 100, 579 to
723}
Straight tilt dozer
Straight tilt power pitch dozer
Sigma dozer
Sigma power pitch dozer
Angle dozer
27 (1.1) 14X-72-51460
1150 to 1440
{118 to 147, 846 to
1060}
Power angle power tilt dozer
