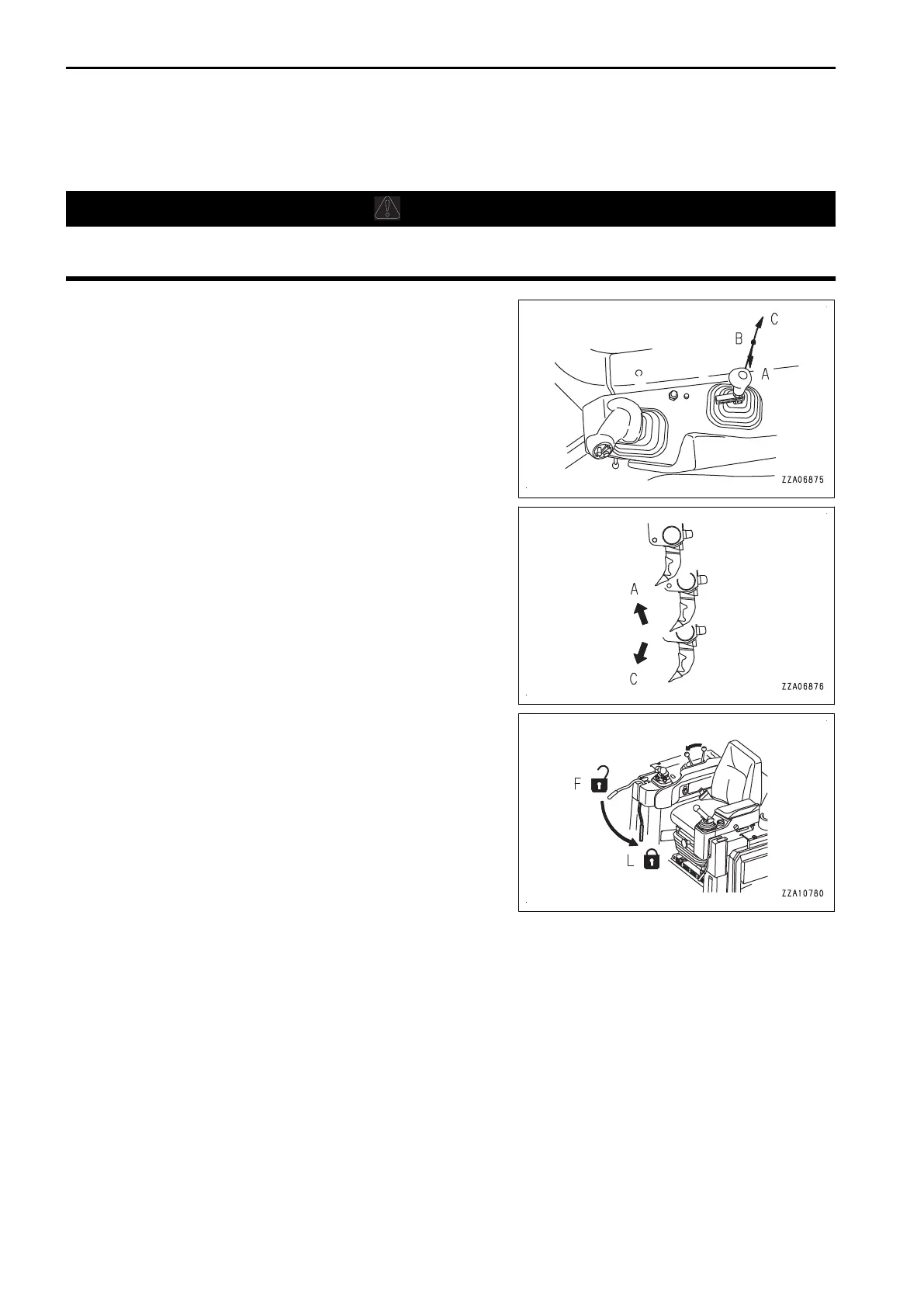

EXPLANATION OF COMPONENTS
RIPPER CONTROL LEVER
WARNING
When performing inspection or maintenance of the machine, or when parking the machine, lower the
ripper to the ground and set the work equipment lock lever to LOCK position.
The ripper control lever is used for operating the ripper.
(a) RAISE: Ripper goes up
(b) HOLD: Ripper is stopped and held in this position.
(c) LOWER: Ripper goes down
REMARK
If the work equipment lock lever is set to LOCK position (L), the
operation of the ripper is locked. For details of the operation of
the work equipment lock lever, see “WORK EQUIPMENT
LOCK LEVER (3-107)”.
HANDLE HYDRAULIC RIPPER ATTACHMENTS AND OPTIONS
6-4
