Komatsu ecot3 - Controls and Gauges

.
OPERATION

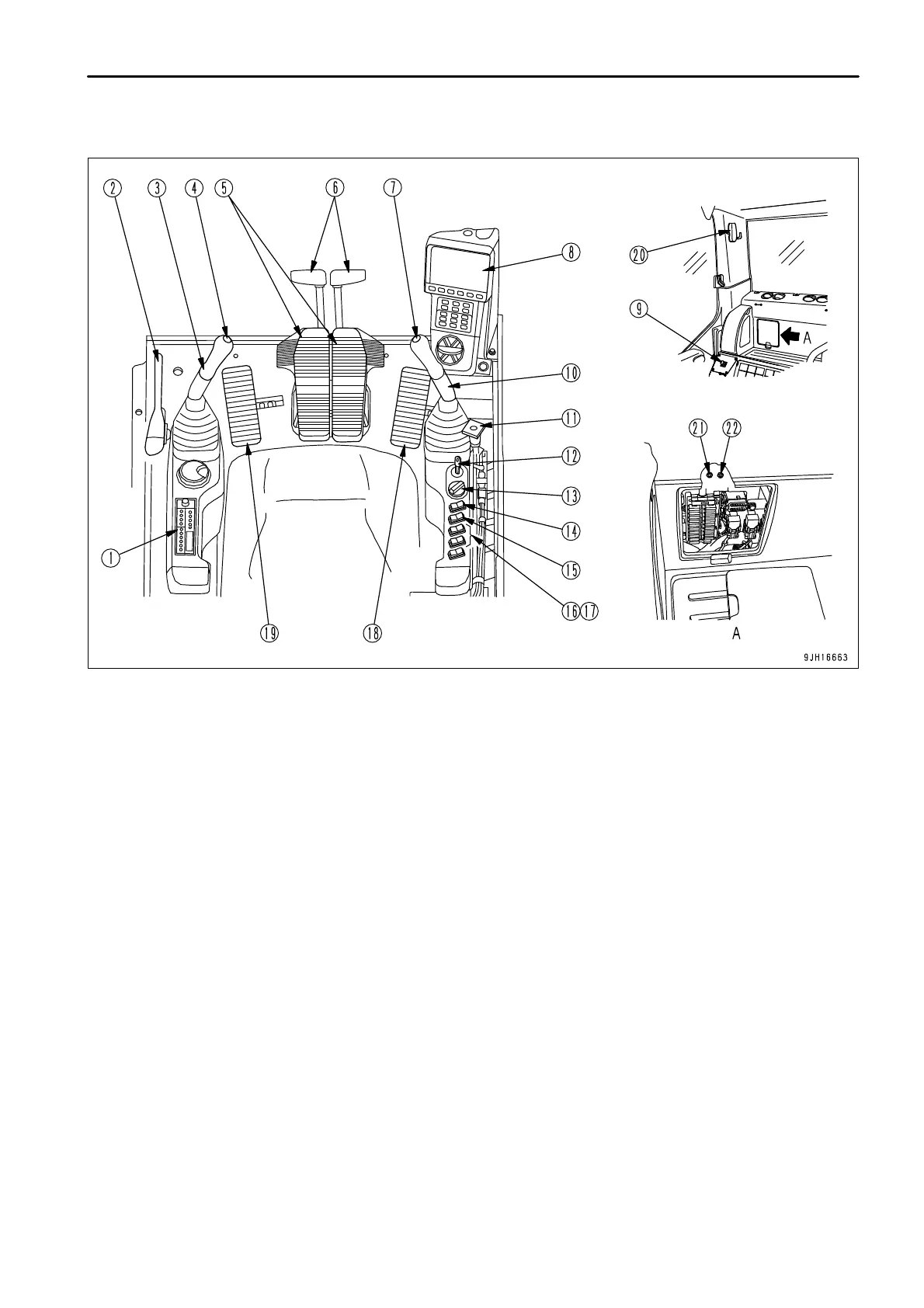

MACHINE VIEW ILLUSTRATIONS
CONTROLS AND GAUGES
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
Radio
Lock lever
Left work equipment control lever
One-touch power max. switch
Travel pedals
Travel levers
Horn switch
Machine monitor
Cigarette lighter
Right work equipment control lever
Blade control lever (if equipped)
Starting switch
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
(21)
(22)
Fuel control dial
Lamp switch
Swing lock switch
Revolving warning lamp switch (if equipped)
Large capacity airflow air conditioner blower
switch (if equipped)
Attachment control pedal (if equipped)
Attachment control pedal (if equipped)
Room lamp switch
Emergency pump drive switch
Swing brake cancel switch
3 - 3
