SEN03775-04 10 Structure, function and maintenance standard

34 PC130-8

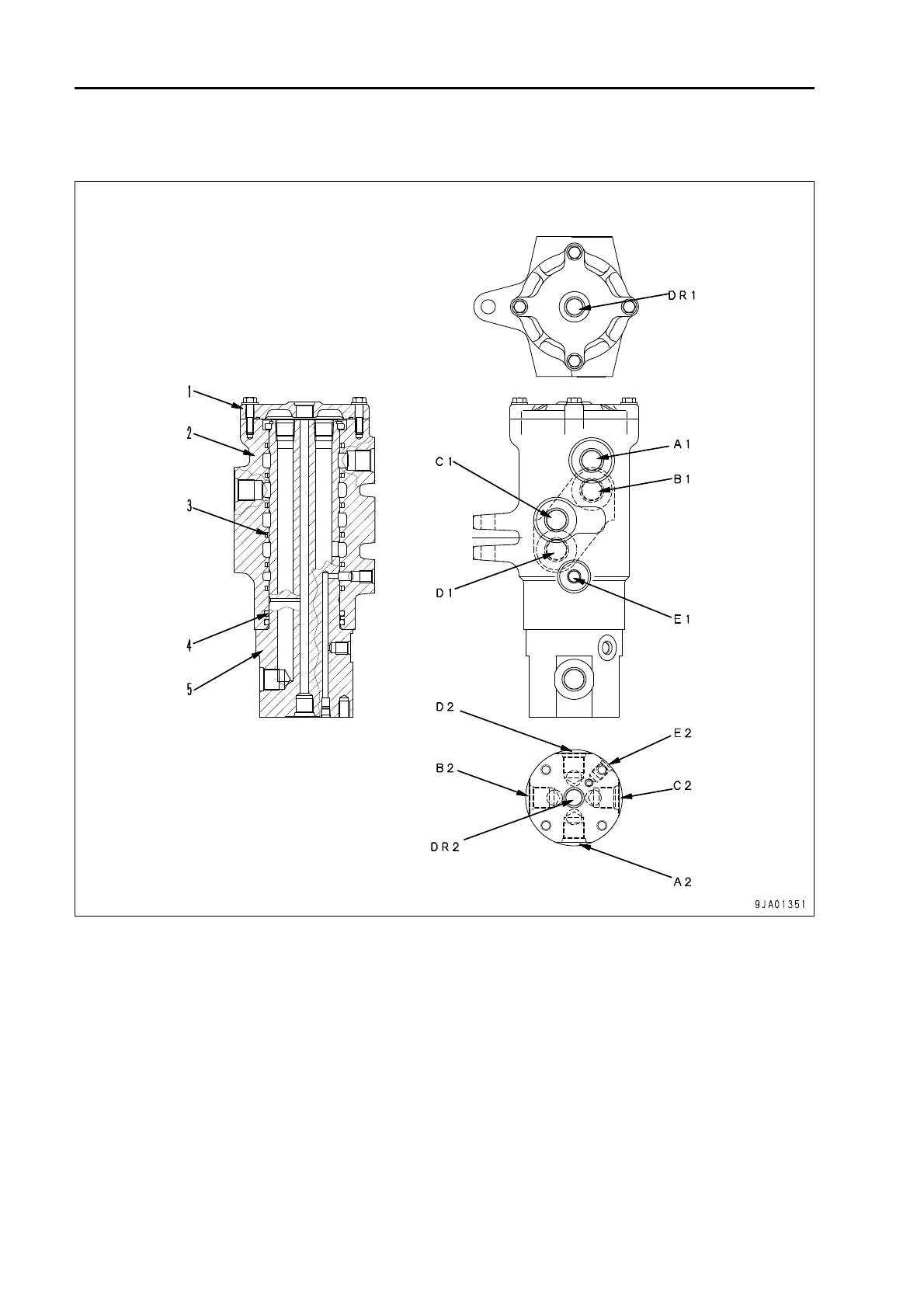

Center swivel joint 1

Standard specification

A1: From control valve (R.H. travel FORWARD)

B1: From control valve (L.H. travel FORWARD)

C1: From control valve (R.H. travel

REVERSE)

D1: From control valve (L.H. travel REVERSE)

E1: From 2nd travel speed select solenoid valve

DR1: To hydraulic tank

1. Cover

2. Body

3. Slipper seal

A2: To R.H. travel motor FORWARD port B

B2: To L.H. travel motor FORWARD port A

C2: To R.H. travel motor

REVERSE port A

D2: To L.H. travel motor REVERSE port B

E2: To L.H. and R.H. travel motor port P

DR2: From L.H. and R.H. travel motor port D

4. O-ring

5. Shaft
