50 Disassembly and assembly SEN04127-02
PC130-8
13
Removal and installation of
cylinder head assembly 1
Removal
k Disconnect the cable from the negative (–)
terminal of the battery.

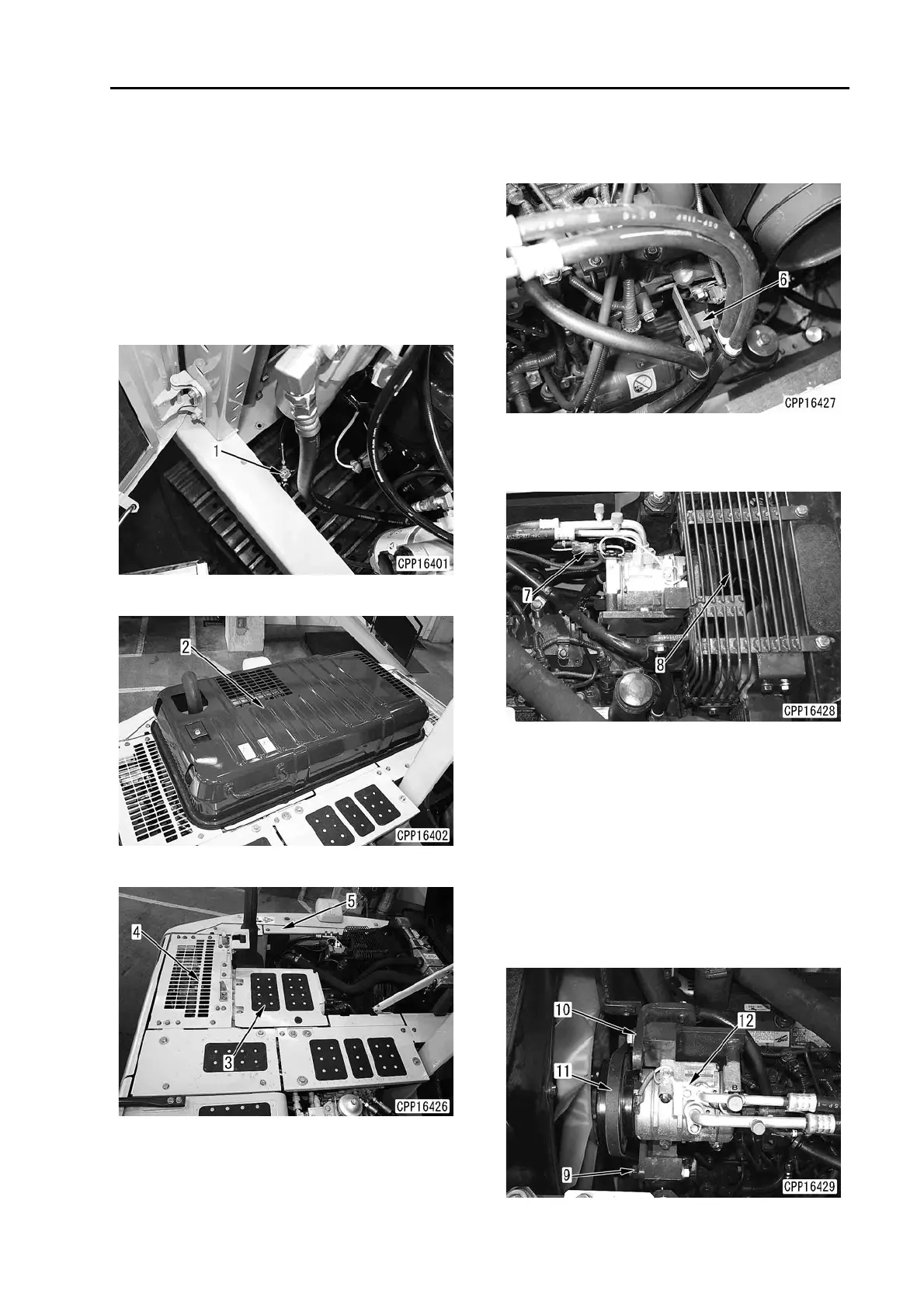

1. Open fuel drain valve (1) and drain the fuel.
a After starting draining the fuel, open the
fuel filler cap.
6 Fuel tank: 247 l
2. Open and lock engine hood (2).
3. Remove covers (3) – (5).
4. Disconnect air conditioner compressor accord-
ing to the following procedure.
1) Disconnect air conditioner hose clamp (6).
2) Disconnect wiring connector AC02 (7).
3) Remove air conditioner compressor drive
belt protective cover (8).
4) Loosen air conditioner compressor mount-
ing bolt (9) and drive belt adjustment bolt
(10) and remove drive belt (11). [*1]
5)
Remove air conditioner compressor mount-
ing bolt (9) and air conditioner compressor
belt tension adjustment bolt (10) and dis-
connect air conditioner compressor assem-
bly (12).
a Move the air conditioner compressor
assembly aside and bind it with a
rope, etc. so that it will not be an
obstacle.
To Next Page
