SEN06143-00
PC200, 200LC, 220, 220LC-8M0 50-200
43
200 Engine and cooling system
Removal and installation of fuel cooler assembly
Removal and installation of fuel
cooler assembly 1
Removal
k Disconnect the cable from the negative (–)
terminal of the battery.
a If the fuel is too much, drain the fuel in order to
stop the fuel flow from the fuel tank return
hose.

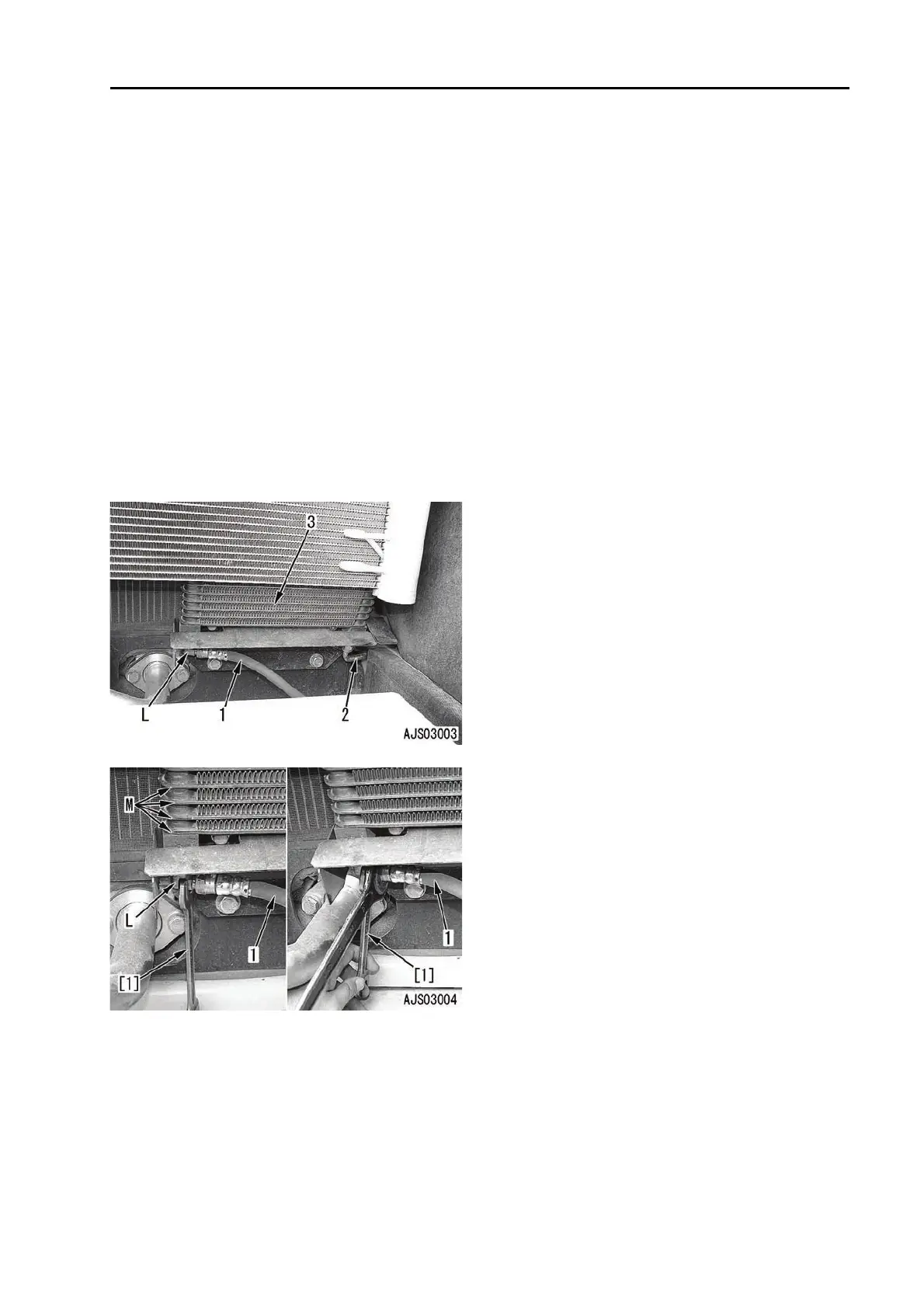

1. Disconnect fuel hoses (1) and (2) with the pre-
caution described below.
a Be sure to disconnect the hoses in avoid-
ing the input force to the cooler body by
fixing elbow (L) with wrench (1).
a Be sure to use wrench [1], otherwise the
force is loaded to the cooler body and the
weld portion (M) may be separated.
2. Remove fuel cooler assembly (3).
Installation
q Installation is done in the reverse order of
removal.
