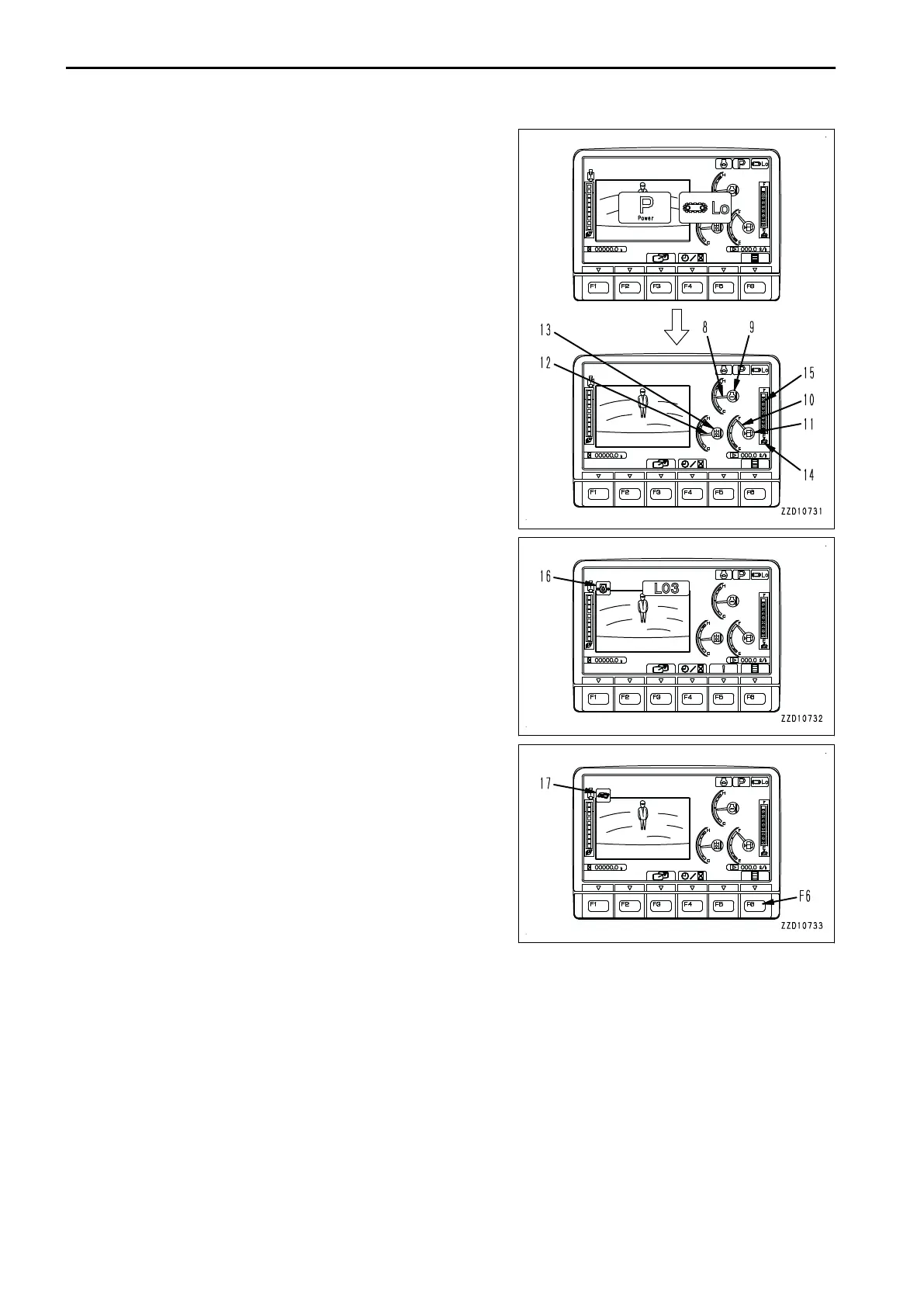

• Engine coolant temperature gauge (9)
• Engine coolant temperature caution lamp (10)
• Fuel gauge (11)
• Fuel level caution lamp (12)
• Hydraulic oil temperature gauge (13)
• Hydraulic oil temperature caution lamp (14)
• DEF level gauge (15)
• DEF level caution lamp (16)
3)
If the caution lamp (17) stays lit in red, immediately
check the item lit in red.
For details of contents and check methods for caution
lamp, see “WARNING DISPLAY (3-17)”.
7.
If the maintenance due time has passed for certain items,
maintenance due time caution lamp (18) is lit in red for 30
seconds. Press user menu display switch (19), check the
item, and perform maintenance immediately.
For details of the method of checking the maintenance in-
terval, see “MAINTENANCE SCREEN SETTING (3-78)” in
EXPLANATION OF COMPONENTS.
AUTOMATIC GREASE SYSTEM
Check Automatic Grease System is normal.
Refer to “AUTOMATIC GREASE SYSTEM (6-7)”
MACHINE OPERATIONS AND CONTROLS OPERATION
