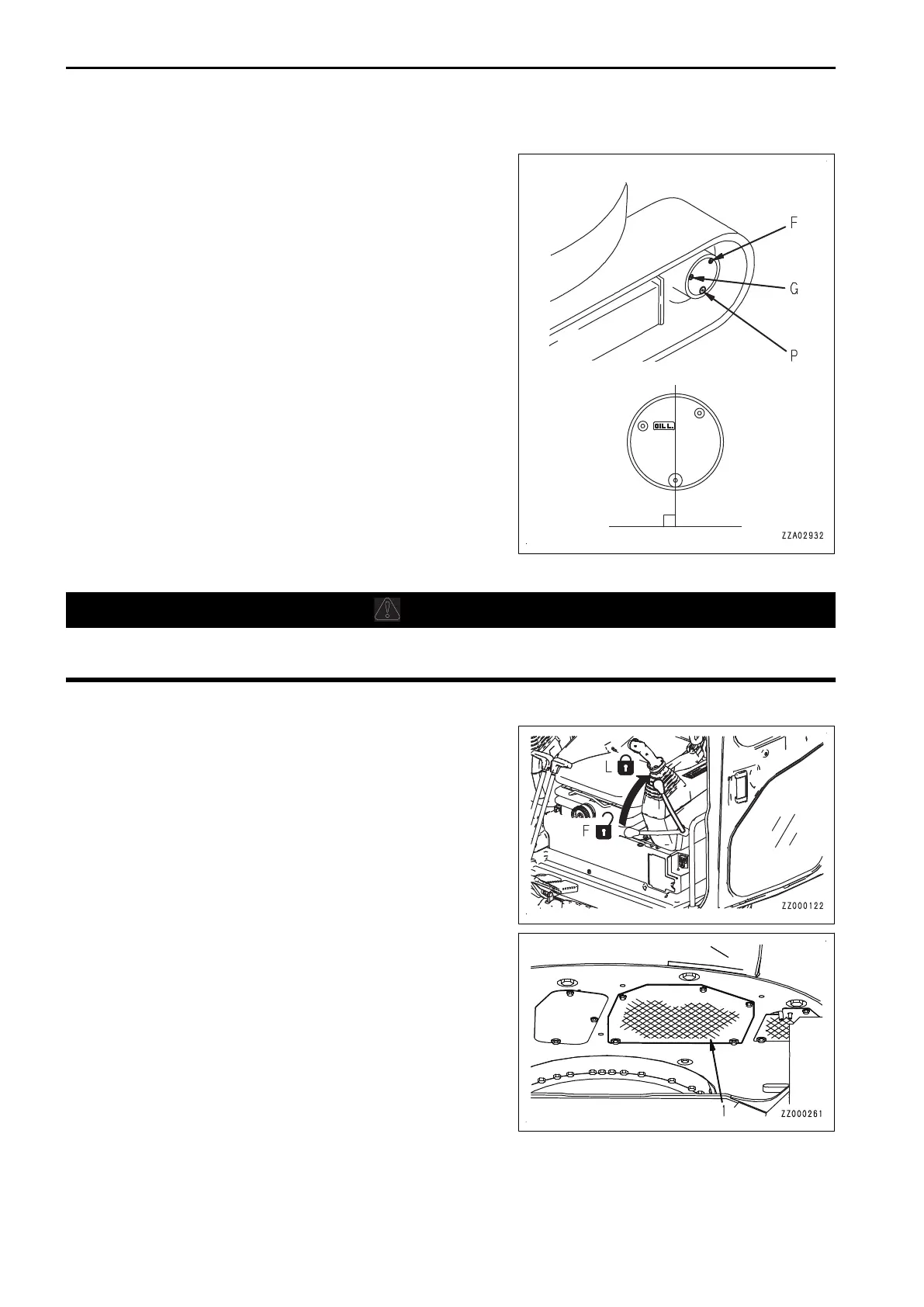

• Hexagonal wrench
1.
Bring plug (P) to the lowest position.
2.
Place the oil container to catch oil under plug (P).
3.
By using a hexagonal wrench, remove plugs (P), (G), and
(F) , and drain the oil.
4.
Tighten plug (P) .
5.
Add the refill capacity of engine oil through oil filler port (F).
6.
When oil begins to overflow from plug (G) hole, install
plugs (G) and (F).
METHOD FOR CHECKING OIL LEVEL IN PTO GEAR CASE, ADDING OIL
WARNING
Immediately after the engine is stopped, its parts and oil are still very hot, and may cause burn injury.
Accordingly, wait until they have cooled down before starting the work.
1.
Swing the upper structure so that PTO gear case is at the center between the right and left tracks.
2.
Set the lock lever to LOCK position (L).
3.
Stop the engine.
4.
Remove undercover (1) at the bottom of the machine.
MAINTENANCE PROCEDURE MAINTENANCE
4-66
