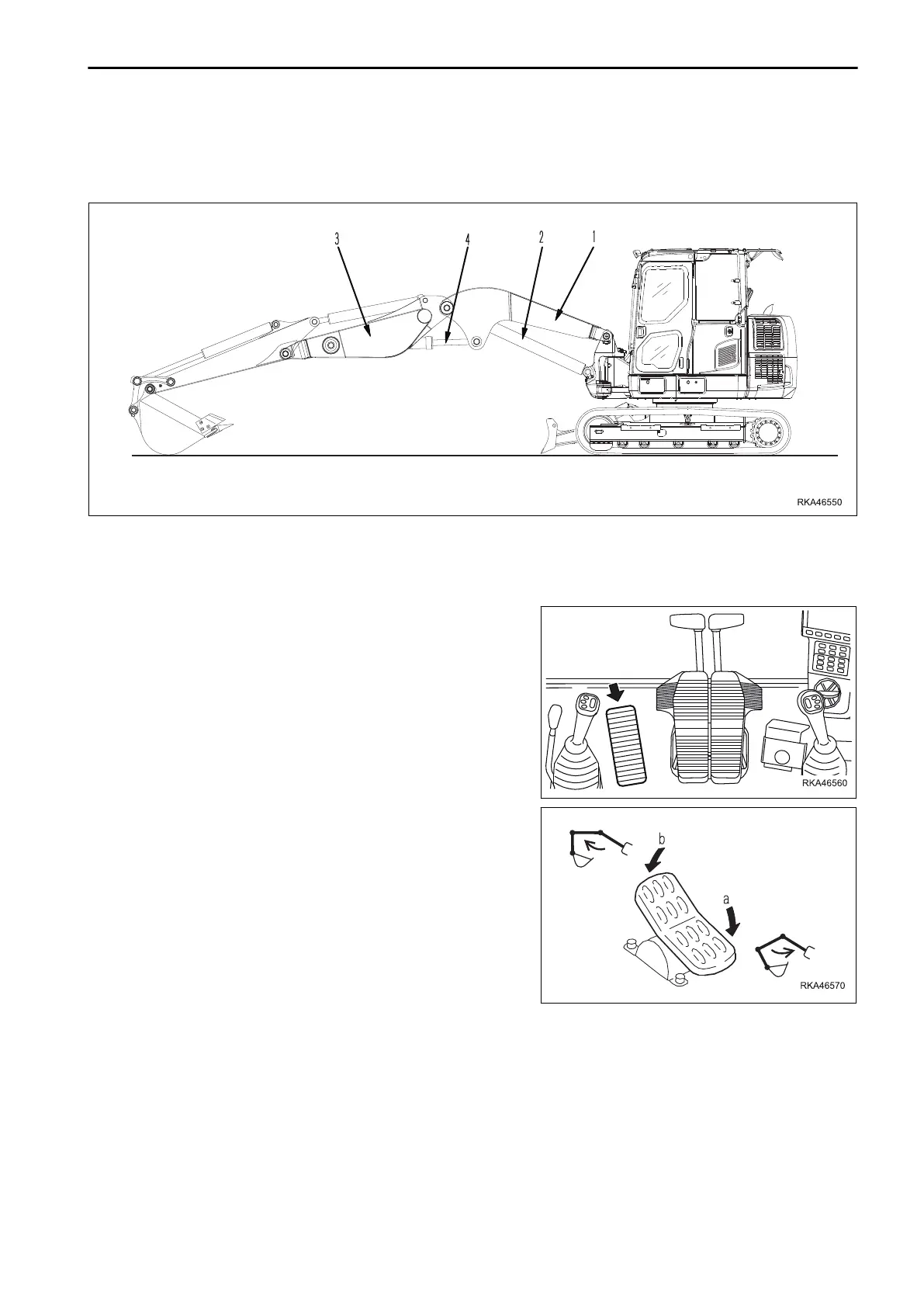

2-PIECE BOOM
2-PIECE BOOM COMPONENTS
(1) First boom
(2) Boom cylinder
(3) Second boom
(4) 2-piece boom cylinder
2-PIECE BOOM CONTROL PEDAL
The
2-piece
boom
control
pedal
is
situated
at
the
left
of
travel
levers.
It
controls
the
extension
and
folding
of
the
2-piece
boom
ac-
cording to the movements indicated.
(a) Boom folding
(b) Boom extension
N (Neutral): boom at rest.
A
TT
ACHMENTS AND OPTIONS
2-PIECE BOOM
6-7
WENAM00042
392
394
