Komax Silence - Product Assembly

17
3) Assembly the L cap and U cap
in the same way.
2) Insert the O cap at the end of
the Multi-joint hose. Turn it to
the right to fit the groove.
1) Insert the end of the Multi-joint
hose into the filter cover.
3
2
1
2

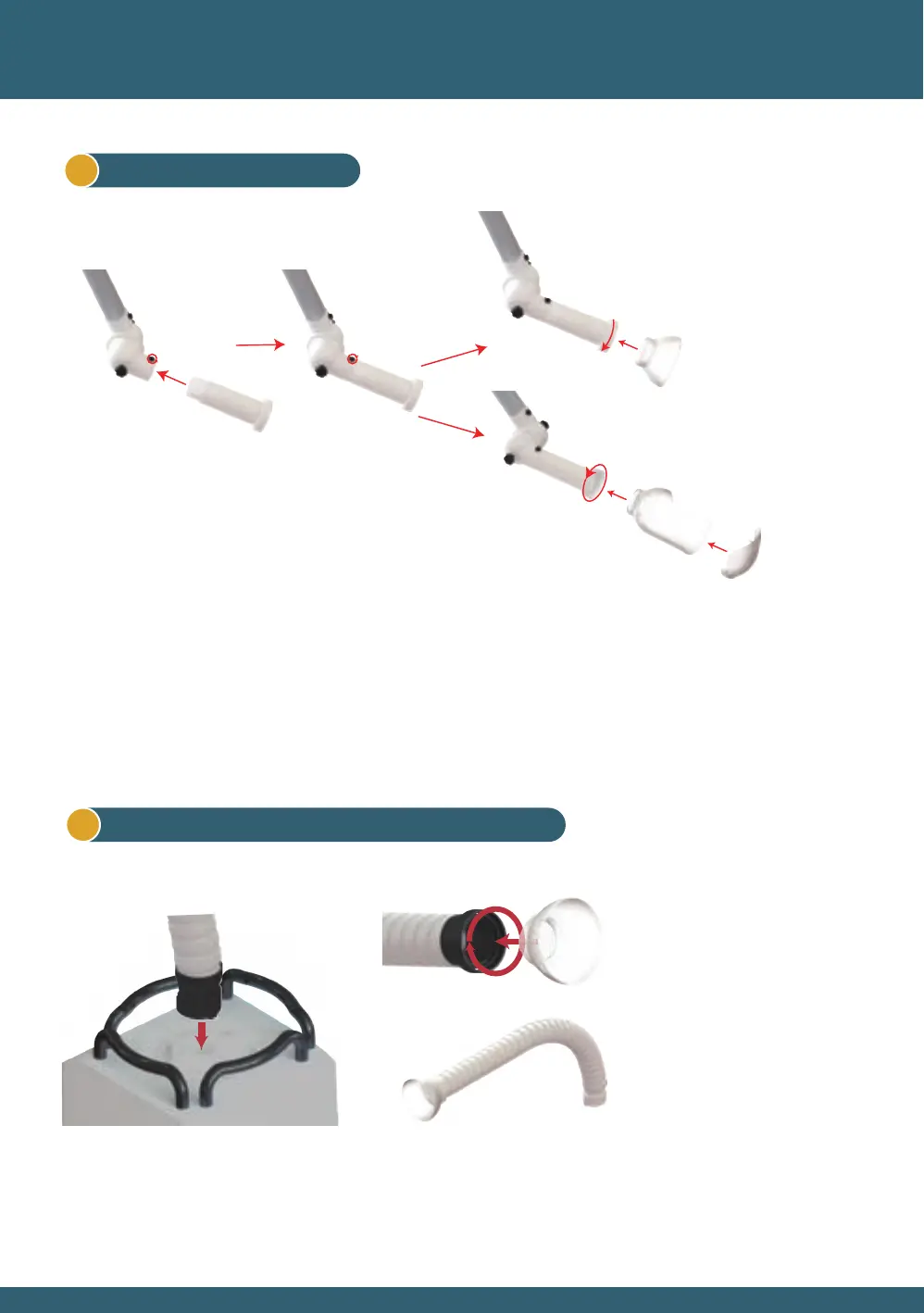

Module and main body connection - Silence H1
5) Assembling the L cap & U cap to the Hood post.
4) Assembling the O cap & Hood post.
3) Align the groove where the screw of the hood post will go into and the position where the
screw of the joint part was located, and reinsert the screw to fix it.
2) Insert the hood post at the end of the joint.
1) Loosen the screw at the end of the joint.
1
2
3
4
5
6
1
Hood assembly
09 Product assembly
