Kone V3F25 - 4 INITIAL COMMISSIONING OF THE MACHINE (WITHOUT ROPES); 4.1 Prerequisites and preparations

V3F25/18 drive
Installation Instruction
© 2004 KONE Corporation AM-11.65.020
All rights reserved. 11 (42) (E) 2004-01-08
4 INITIAL COMMISSIONING OF THE MACHINE (WITHOUT ROPES)
4.1 Prerequisites and preparations
Refer to the elevator level installation manuals for the prerequisites and preparations that
each elevator needs to have been done before commissioning of the machine.
4.1.1 Checking the mechanical obstructions
4.1.2 Checking cable routes
For elevators in North America (MonoSpace® and EcoSystem MR®) refer to AM-01.01.065.
Step Action Note
1 Check that there is nothing leaning against the traction sheave.
2 Check that the ropes are not on.
3 Check that the cables are connected and covers of the panels and boxes are
closed.

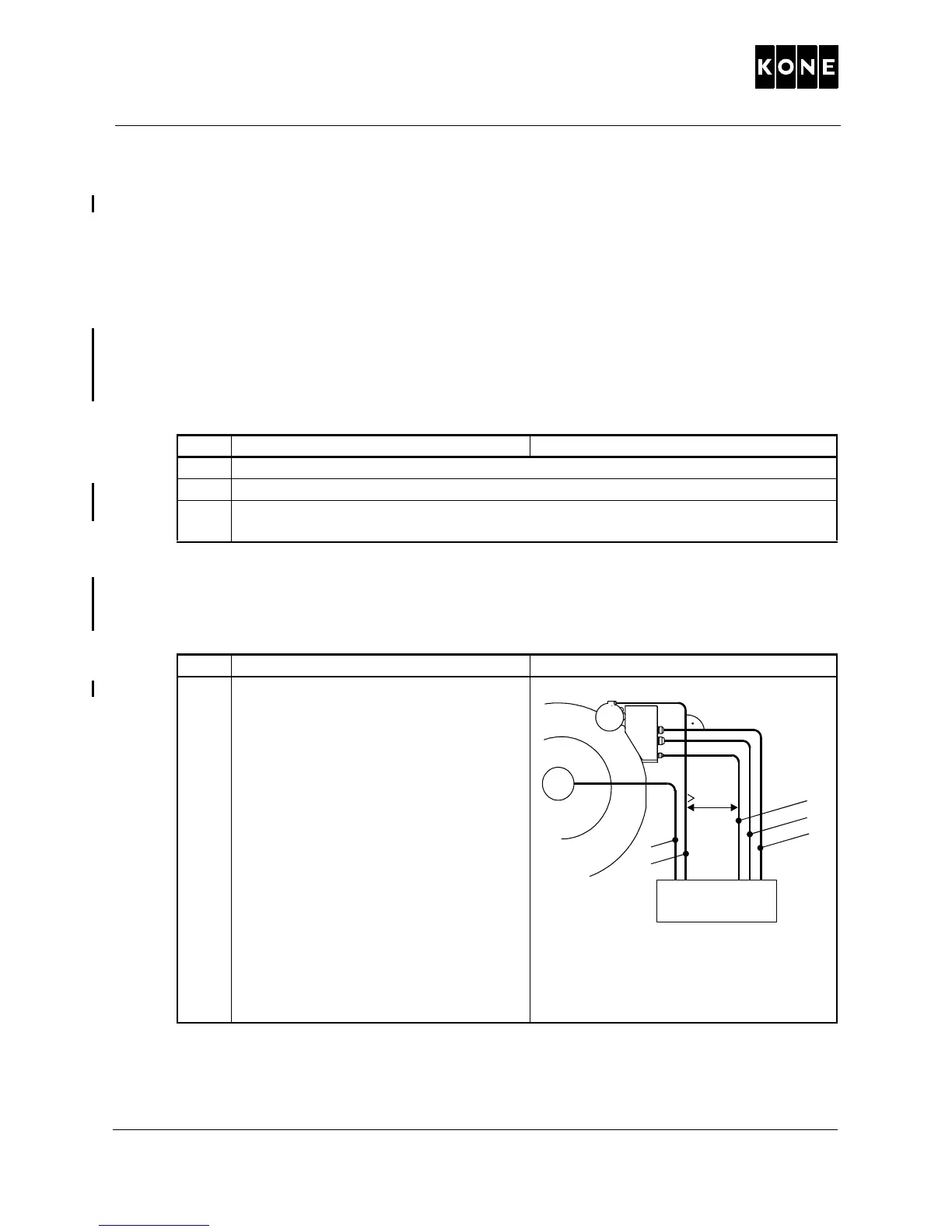

Step Action Note
1 Resolver cable and tachometer cables
must be separated from motor supply,
brake control and thermistor cables.
Otherwise there might be disturbances
in the resolver and tachometer signals.
These cables can cross each other in
angle of 90 degree.
If these cables are routed parallel, the
minimum clearance between these two
cable groups must be 100 mm.
1 = Resolver cable
2 = Tachometer cable
3 = Brake control cable
4 = Motor cable
5 = Thermistor cable
3
4
5
T
R
1
2
1019837.wmf
100mm
90
o
