V3F25/18 drive
Installation Instruction
© 2004 KONE Corporation AM-11.65.020
All rights reserved. 13 (42) (E) 2004-01-08

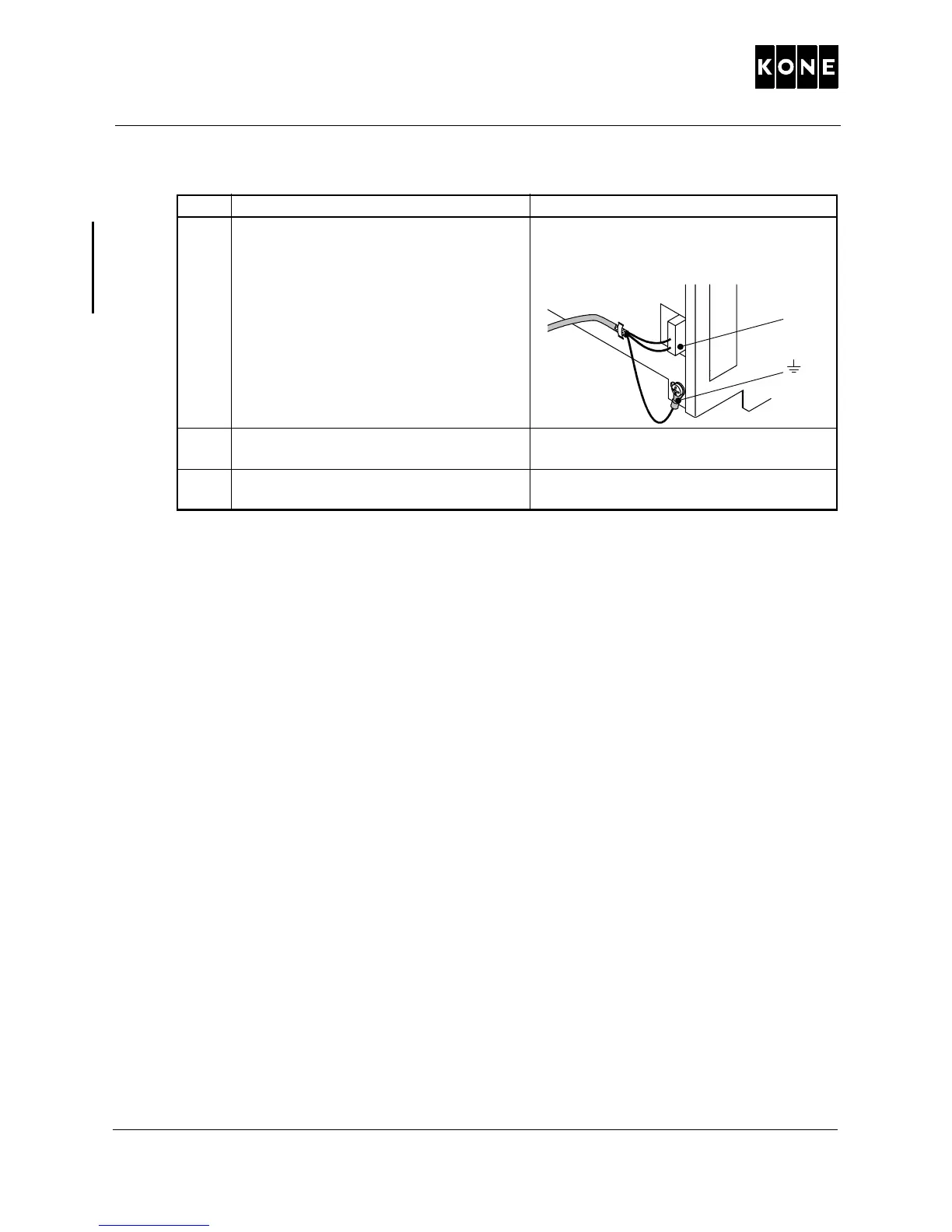

4 Check that the shield of the tachometer
cable is connected to the drive body.
Check that the earth wire is connected
to the drive.
CAUTION!Do not connect the
tachometer shielding to the earthing at
the motor end.
5 Check that the shield of the brake cable
is connected to the controller body.
6 Check the connection and tightness of
wires in the terminals.
Refer to the wiring diagrams.
