10 Instruction manual SMV 10 600B – 60 1500B Publ. no. 6196.082 1117, Version 02
Presentation of the machine

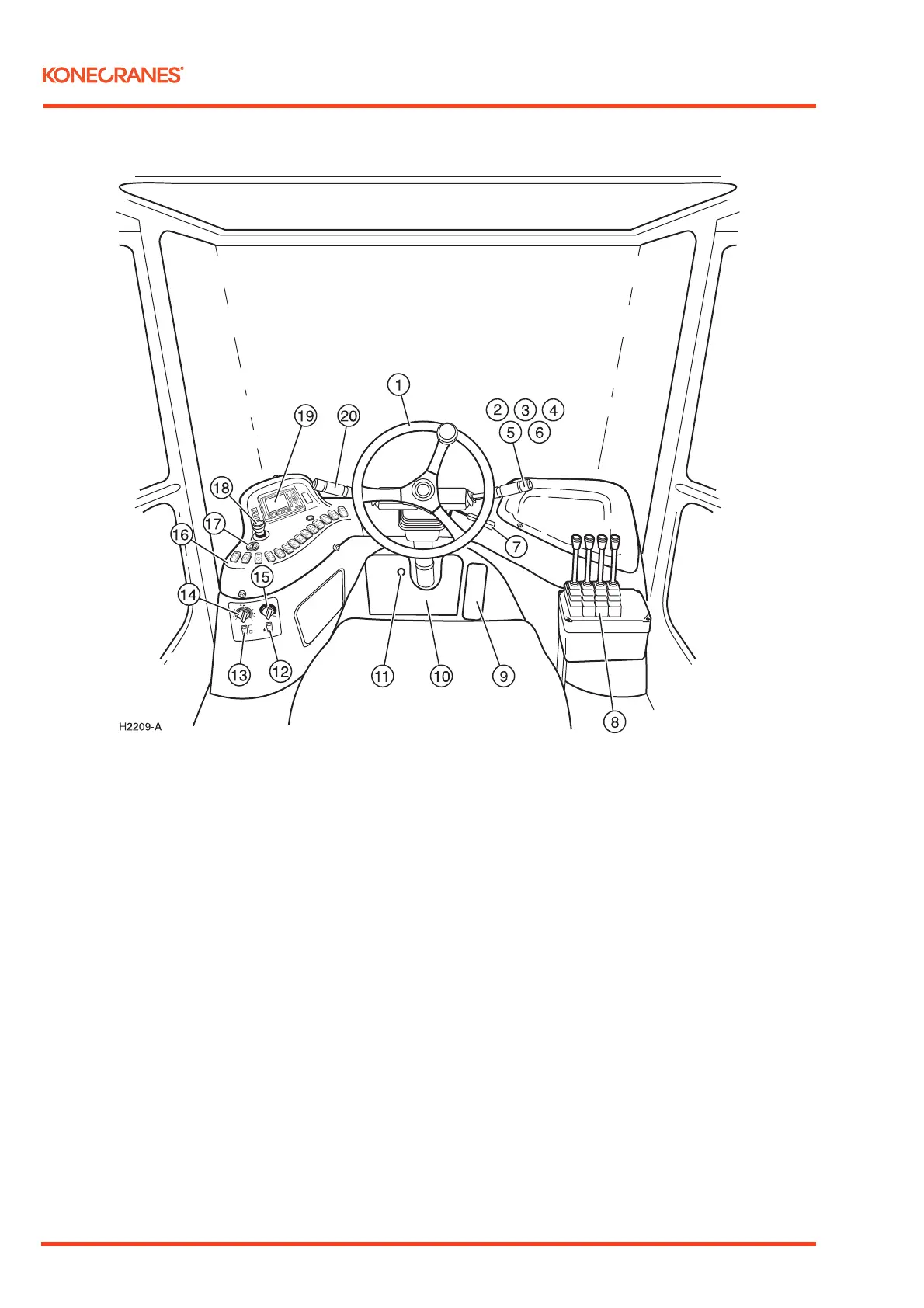

CABIN CONTROLS AND INDICATORS
1. Steering wheel
2. Wiper windscreen
3. Main beam/dipped beam
4. Horn
5. Driving direction indicator
6. Windscreen washer
7. Adjustment lever steering wheel
8. Control levers hydraulics
9. Accelerator pedal
10. Brake pedal
11. Declutch
12. Cooling (AC)
13. Recirculation
14. Heater controls
15. Fan
16. Instrument panel and switches
17. Ignition lock
18. Emergency stop
19. Drive monitor IQAN MD3
20. Gear lever
The placing of the controls may vary from machine to machine depending on the requirements of the customer. The image above
shows the standard placing of controls.
