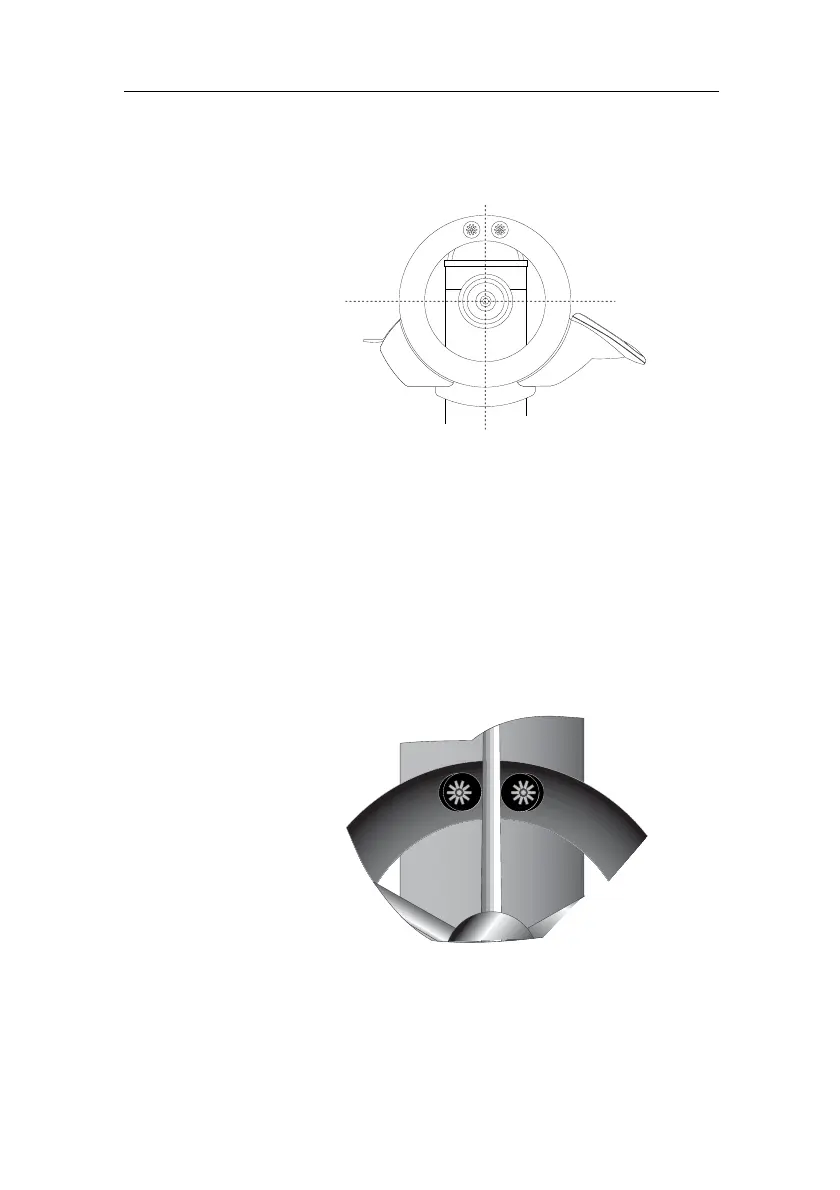

Fig 5.6 - Pilot should be central to wheel shaft
7. Fit the Wheelpilot to the pedestal mount by inserting the
two guide rods into the slots on the pedestal mount. Check
that the Wheelpilot ring is centred on the wheel shaft (Fig 5.6) -
Fig 5.7 - Offset rubber spoke clamps
If necessary, reposition the pedestal mount by removing the
pilot and the front plate and loosening the band clamp.
8. With the clutch lever disengaged, rotate the Wheelpilot ring
until the two spoke pillars are at the top.
9. Refit the wheel, ensuring that the top spoke sits between the
two spoke clamps.
10. Two rubber clamps are supplied that fit over the toothed
spoke pillars. The holes in the clamps are offset, so that by
rotating them the gap between the pillars can be increased or
decreased until the wheel spoke is held securely (Fig 5.7) -
11. If necessary, move the Wheelpilot forward, or back along
the guide rods until the wheel spoke fits equally between the
clamps.
