ADU/PAPER EXIT SECTION

2-32

II UNIT EXPLANATION

8.2.3 Paper reverse control

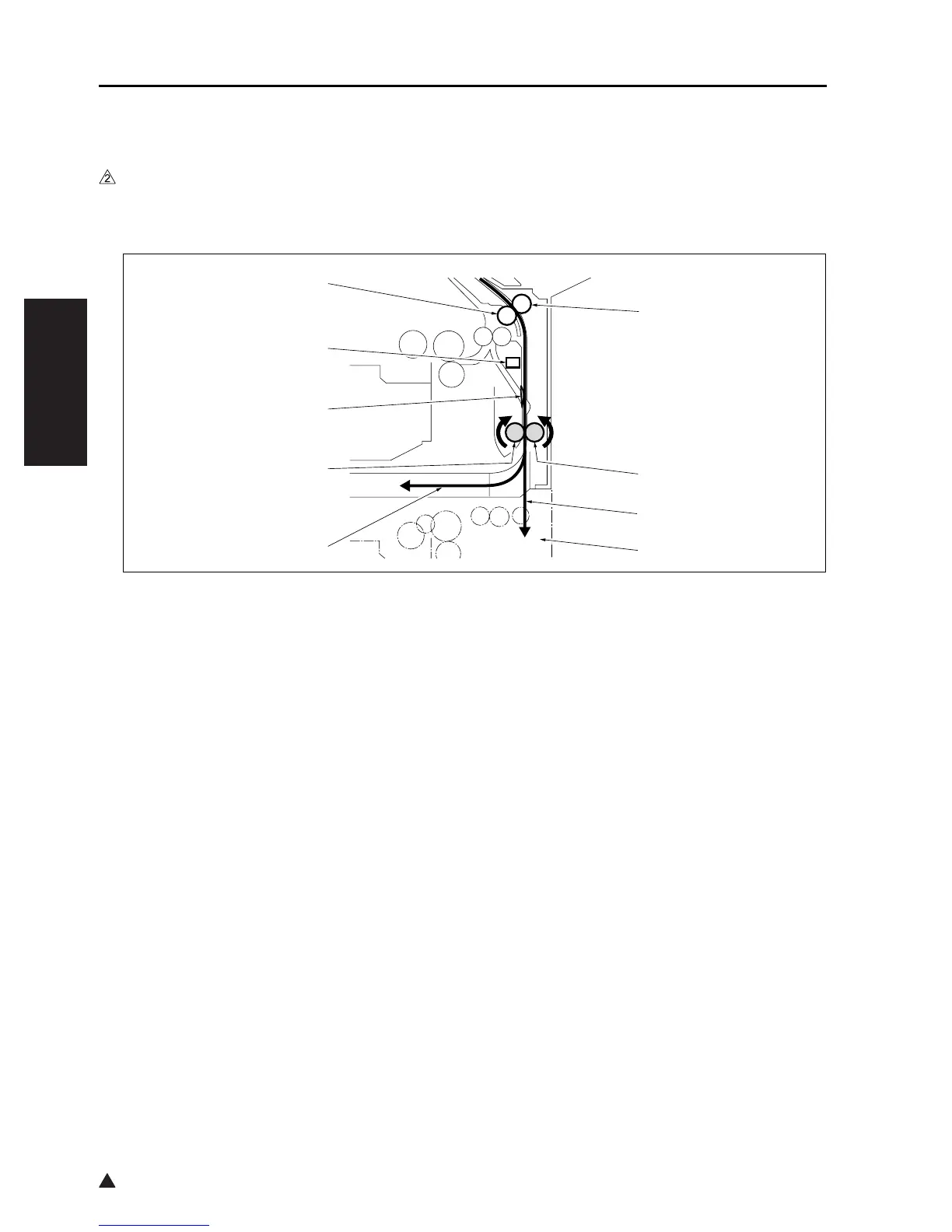

A. Paper reverse path

(1) When conveying paper

When a sheet of paper is conveyed from the ADU conveyance roller/2, it is further conveyed to the

ADU roller by pushing the switching sheet open.

[1] ADU conveyance driven roller/2 [6] ADU roller

[2] ADU driven roller [7] Switching sheet

[3] Conveyance path when DB is provided [8] PS4 (ADU sensor)

[4] DB [9] ADU conveyance roller/2

[5] Conveyance path when DB is not provided

7322ma2006
