17
17-26 bizhub C554/C454/C364/C284/C224
Tips
- This adjustment is possible when the Finisher FS-535 and Z Folding Unit ZU-606 are installed in
bizhub C554.
- Make adjustment while checking paper folded at a displaced position.
- The value you set by selecting [All] in [Paper Size] will be added to the setting for each paper size.

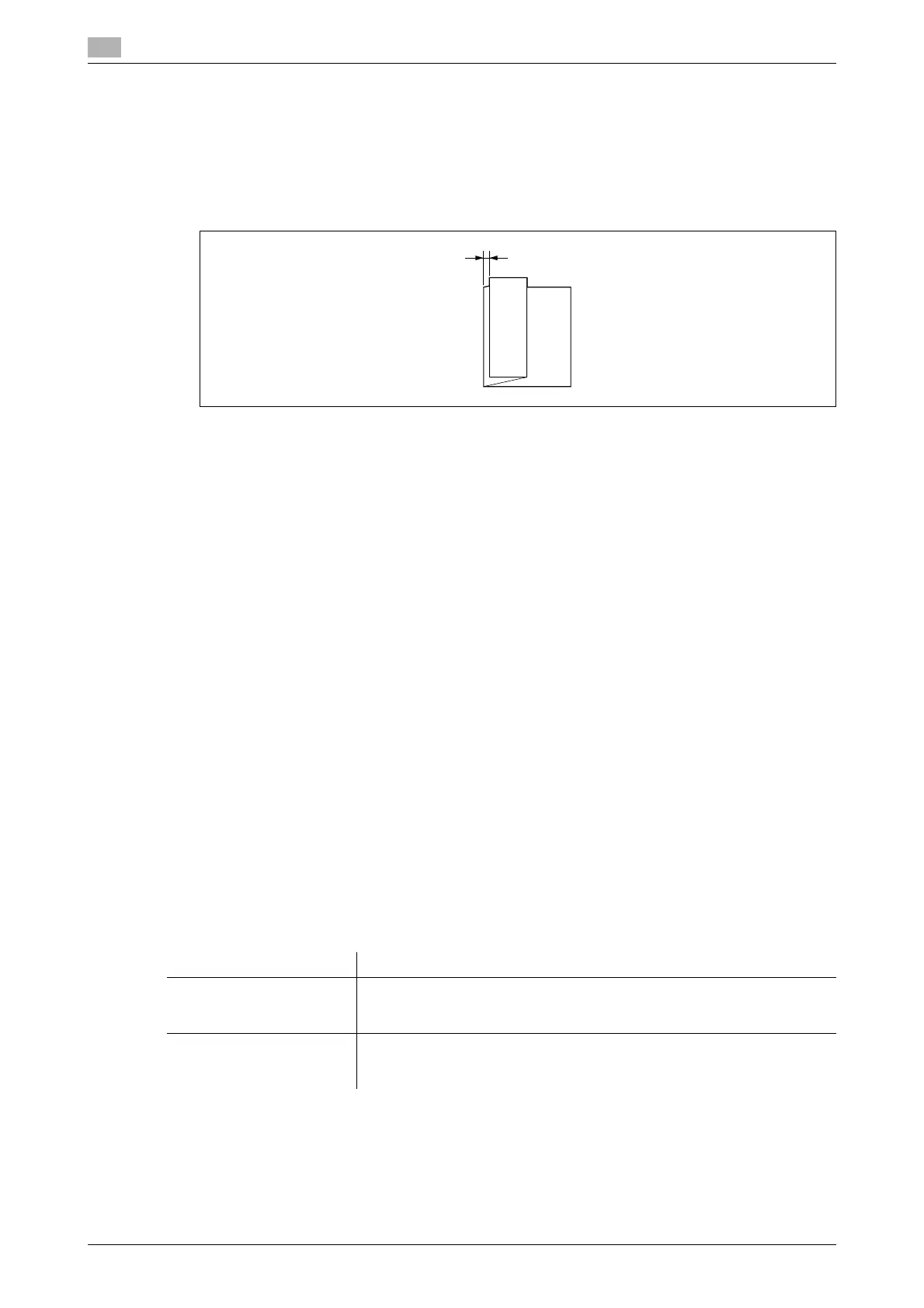

- The distance between the left end of the paper and the second Z-fold position must be 1/16 inch (2
mm) or more.
[Punch Unit Size Detect Sensor]
To display: [Utility] - [Administrator Settings] - [System Settings] - [Expert Adjustment] - [Finisher Adjustment]
- [Punch Unit Size Detect Sensor]
Use this option to adjust the sensor of the Punch function to detect the edge of the paper.
Press Start to start adjustment.
Tips
- This adjustment is possible when the Finisher FS-535 and Z Folding Unit ZU-606 are installed in
bizhub C554.
[Post Inserter Tray Size Adjustment]
To display: [Utility] - [Administrator Settings] - [System Settings] - [Expert Adjustment] - [Finisher Adjustment]
- [Post Inserter Tray Size Adjustment]
If the size of the paper loaded into the Post Inserter is not detected correctly, use this option to adjust it so
that it is detected correctly.
Select a paper tray and paper size to be adjusted, and load paper. Press Start to start adjustment.
Tips
- This adjustment is possible when the Finisher FS-535 and Post Inserter are installed in bizhub C554.
[Paper Alignment Plate Settings]
To display: [Utility] - [Administrator Settings] - [System Settings] - [Expert Adjustment] - [Finisher Adjustment]
- [Paper Alignment Plate Settings]
If paper is not discharged with the edges aligned, use this option to adjust the effective width of the paper
alignment plate for making discharged paper stored neatly.
Tips
- This adjustment is possible when the Finisher FS-533 is installed.
Settings Description
[ Alignment Plate Position
(Back)] / [Alignment Plate
Position (Front)]
Select the paper alignment plate to adjust the position.
[Adjust Value] Enter an adjustment value between -10.0 mm and 10.0 mm by tapping [-]
and [+].
[0.0 mm] is specified by default.

Konica Minolta bizhub C224 Specifications

General

Print Speed	22 ppm (A4)
Duplex Printing	Yes
Print Technology	Laser
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Memory (RAM)	2 GB
Type	Color Multifunction Printer
Print Resolution	1200 x 1200 dpi
Paper Capacity	1, 150 sheets (standard)
Connectivity	Ethernet, USB
Functions	Print, Copy, Scan, Fax
Supported Paper Sizes	A3
Hard Drive	250 GB
PDL	PostScript
Max Paper Size	SRA3
Display	9" color touch-screen
