NOTE : EMERGENCY DRAIN IN EXTREME TEMPERATURES
Drain or evaporate the condensate?
FACT:
= condensate evaporators use a lot of costly energy and add heat
to the system that can shorten the life of cooling units.
= Another important issue is the development of harmful spores
and a requirement for time consuming and expensive cleaning
and maintenance.
SOLUTIONS:
= Koolspace units are designed with multi stage systems;
Internal evaporation using the natural heat of the unit.
Externally the unit is equipped with a pan containing an over
ow sensor and the ability to drain under extreme
temperature and humidity conditions into a larger container
using a 1/2” O.D. hose (for models 100-300) or the supplied
hose (for models 600-900).
NOTE:
If unit is operated according to specications overows will not occur.
Excess condensation is caused by extreme conditions. Unit will shut off at
72°F and will restart when temperature drops or unit is re-plugged (wait 5
seconds after pulling out plug then re plug). Empty drain pan before re-
plugging.
If Drain Pan lls frequently do the following:
Remove Drain pan and insert a hose into drain hole and cut to length. Place
drain hose into a large container.
IMPORTANT NOTE :
When leaving the house for an extended period of time do the above to
insure your wine. Make sure the DOOR is CLOSED and ROOM is totally
SEALED from any air leakage.

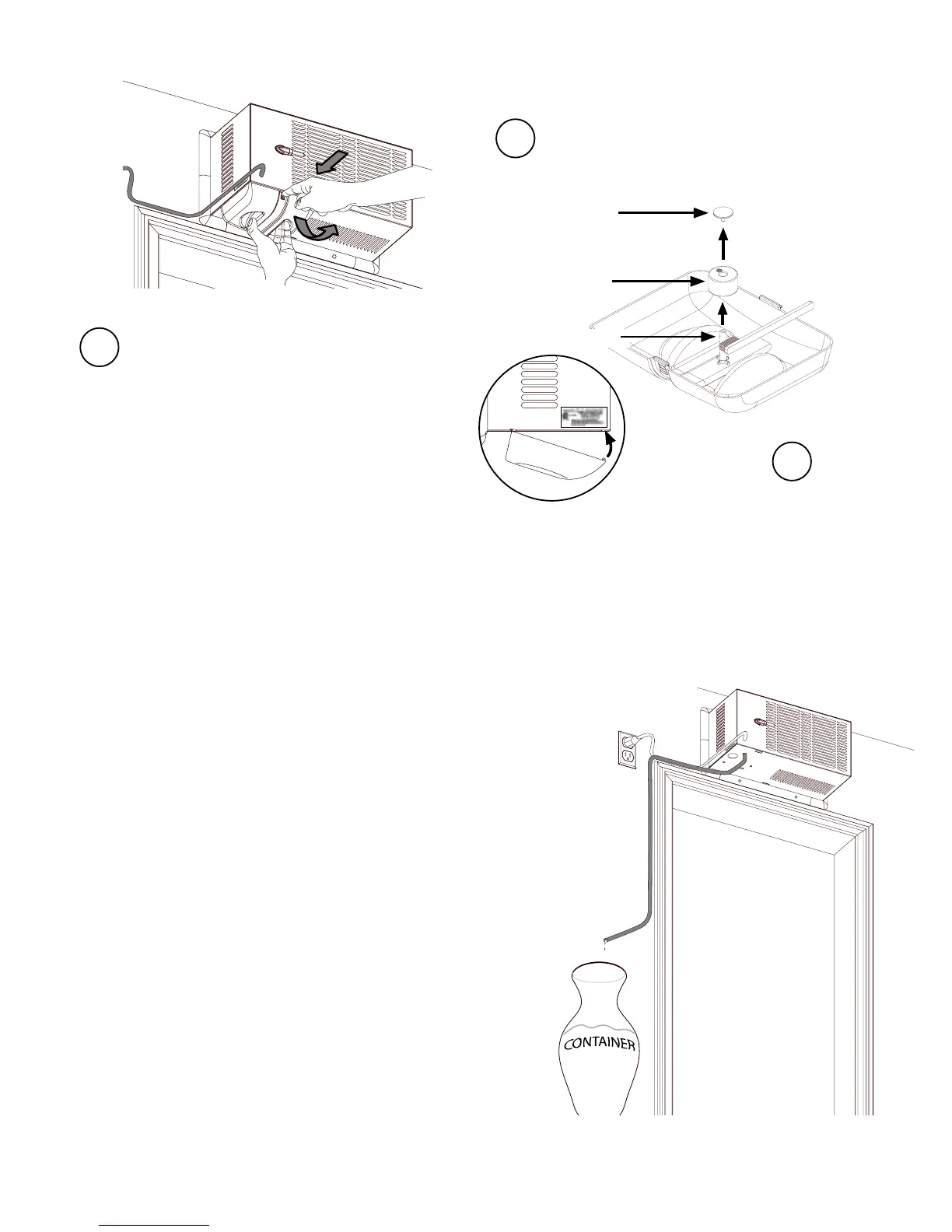

DRAIN PAN MAINTENANCE
Remove Drain Pan by inserting ngers
into half moon cutouts on bottom of pan
and press in center front edge to release
Front Tab.
1
Dump out condensation water
Inspect sensor FLOAT SHAFT and FLOAT
for residue that may limit the oat
movement.
Remove oat button and oat from drain
pan, if components need to be cleaned.
Use a brush or rag to remove water de-
posits from the parts.
2
Place back oat and oat
button onto drain pan.
Re-attach drain pan
3
FLOAT BUTTON
FLOAT
FLOAT SHAFT
Brush or Rag
