Electric Characteristics
3.

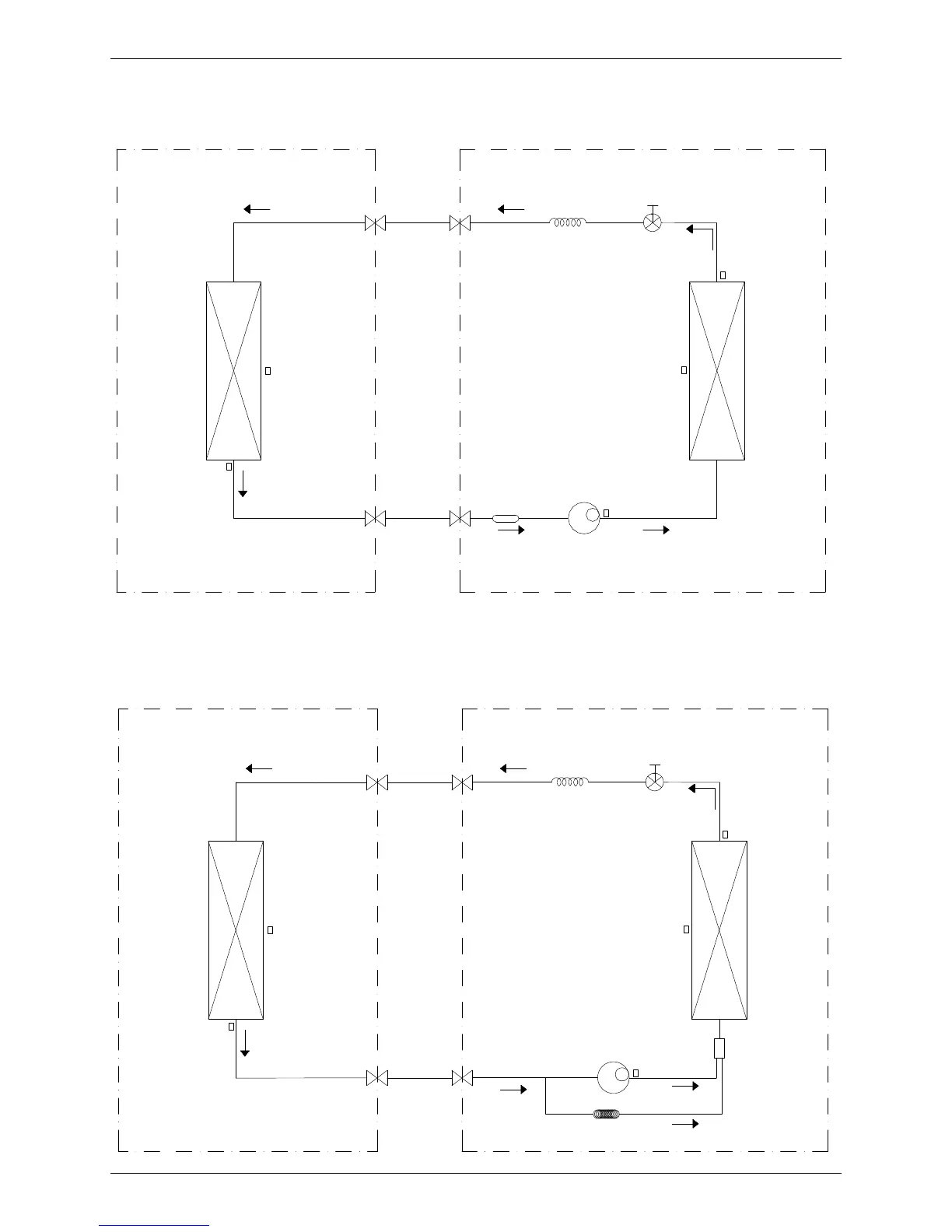

Piping Diagrams
KV24ODU-ARF21, KV36ODU-ARF21
INDOOR OUTDOOR
LIQUID SIDE
GAS SIDE
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSER)
COMPRESSOR
T2 Evaporator
temp. sensor
T1 Room temp.
sensor
T3 Condenser
temp. sensor
T5 Discharge
temp. sensor
T4 Ambient
temp. sensor
Accumulator
Electronic
expansion valve
CAPILIARY TUBE
Notes: KV24ODU-ARF21(220075301740) & KV36ODU-ARF21(220075502120) have no EXV.
KV48ODU-ARF21
INDOOR OUTDOOR
LIQUID SIDE
GAS SIDE
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSER)
COMPRESSOR
T2 Evaporator
temp. sensor
T1 Room temp.
sensor
T3 Condenser
temp. sensor
T5 Discharge
temp. sensor
T4 Ambient
temp. sensor
Electronic
expansion valve
CAPILIARY TUBE
Oil return Capillary
Oil separator
36 Outdoor Units
